Description

WOODWARD 5437-1067A appears to be a printed circuit board(PCB)or a spare module/component produced by Woodward,likely related to Woodward’s ProTech GII overspeed protection series or NetCon field terminal module(FTM)in its 5400 series,used in steam turbine or engine control systems.Although there is relatively little detailed description of the exact functionality of 5437-1067A itself,it is typically labeled as”PLAY PCB CIRCUIT BOARD”and is a component of larger systems.

From other models in the Woodward 5437-xxxx series(such as 5437-1078,5437-1081,5437-672),the 5437 series typically includes the following types of modules:

Overspeed protection equipment:monitors the speed of the turbine/engine and initiates a safe shutdown under overspeed/over acceleration conditions.These devices typically adopt a Triple Modular Redundancy(TMR)architecture to achieve high reliability.

Field Terminal Module(FTM):In distributed control systems,it provides connection points for field devices(sensors,actuators)as interfaces for signal conditioning and communication.

Control system components:Various PCBs or sub components that are part of larger turbine or engine control systems such as MicroNet,NetCon,ProTech series.

Given that’5437-1067A’has been confirmed as a’display PCB circuit board’,its main function will be to provide visual interfaces(such as LED indicator lights and possibly small display screens)and related control logic in specific modules of the Woodward control or protection system.It will be responsible for displaying system status,alarm information,and may allow limited local interaction(e.g.,like other FTMs,it may include an emergency stop button).

Important note:As a specific PCB/component in a larger system,5437-1067A cannot operate independently as a complete control system.Its functionality and specifications are directly related to the module or system it belongs to.The public information about such specific components is usually not as detailed as the complete control unit.

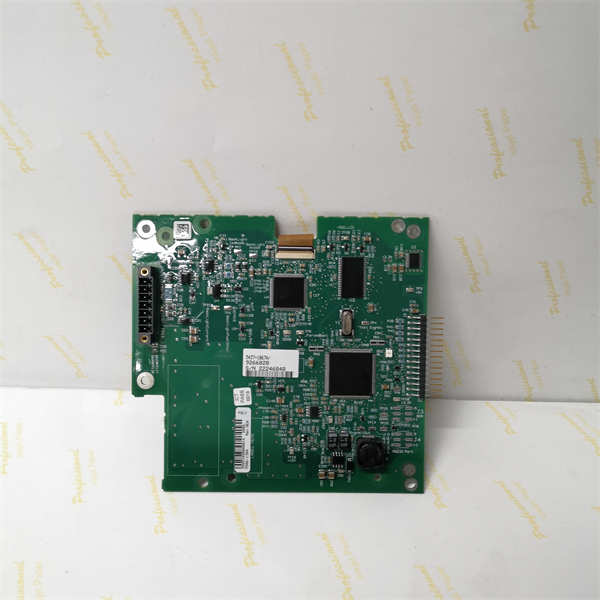

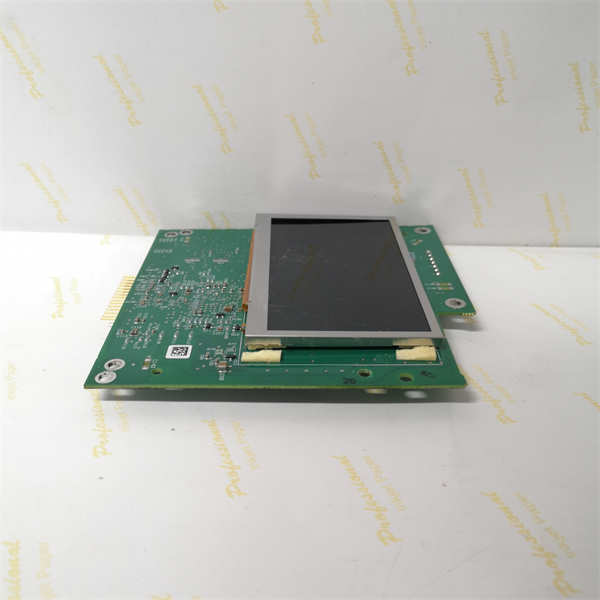

WOODWARD 5437-1067A

technical specifications

Product model:5437-1067A

Manufacturer:Woodward

Product Type:Display PCB Circuit Board/Internal Module Components

Series:5400 Series,ProTech GII(or other related control systems)

Main function:-Provide local status indication(LEDs)<;br>-Display alarm and operation information
;-As part of the Human Machine Interface(HMI)
;-Possible integration of local operation buttons(such as emergency stop)

Input/Output:Receive data from the main processor for displaying
;-May include digital input/output interfaces for button or status indication

Power supply:provided by the control module installed on it

Communication:Communicate with the main module through an internal bus or connector

Working temperature:Typical industrial temperature range(e.g.-20°C to+60°C,depending on the complete module specifications)

Protection level:depends on the protection level of the module or cabinet where it is installed

Size/Weight:Compact PCB size,lighter weight(please refer to the module manual for specific size and weight)

Material:Printed circuit board,which may contain a small amount of electronic components and display components

Main features and advantages

As a display PCB component within Woodward control or protection systems,the characteristics and advantages of 5437-1067A are reflected in its support for overall system functionality:

Intuitive status display:As a display circuit board,it provides intuitive LED indicator lights and/or small display screens to help operators and maintenance personnel quickly understand the operating status,faults,and alarm information of the system or module,improving on-site diagnostic efficiency.

Simplify local operations:If integrated with buttons(such as emergency stop buttons),it provides a convenient local control interface for on-site operators to quickly respond in emergency situations.

High reliability:As part of Woodward’s safety and control system,this PCB component also inherits Woodward’s consistent high reliability design and can operate stably in harsh industrial environments.

Modular design:As a replaceable internal component,it facilitates quick replacement in case of failure and reduces system downtime.

Seamless integration with the main system:specifically designed for systems such as Woodward 5400 series or ProTech GII,ensuring seamless hardware and software compatibility with the main controller.

Diagnostic support:Through display function,it assists the system in fault diagnosis and helps engineers pinpoint the problem.

application area

WOODWARD 5437-1067A,as an internal component of Woodward’s core control and protection systems(especially ProTech GII overspeed protection system and NetCon series),is closely related to the application areas of these systems themselves

Gas/Steam/Hydraulic Turbine Control System:Used for control and safety protection systems of various scales of gas turbines,steam turbines,and hydraulic turbines,especially providing display and interaction functions in their overspeed protection modules or on-site terminal modules.

Generator set control:In power generation applications,it is a subsystem component that controls the generator set.

Control of compressors and pumps:In industries such as oil and gas,chemical engineering,etc.,precise control and safety monitoring of high-speed rotating compressors and large pumps are carried out.

Offshore platforms and industrial processes:In high-risk and critical industrial processes such as petrochemicals and refining,as part of the Safety Instrumented System(SIS),provide critical on-site displays and interfaces.

Factory automation and process industry:any heavy industry field that requires high reliability and high availability control and protection of rotating machinery.

Related products

The products closely related to WOODWARD 5437-1067A mainly include its integrated Woodward control and protection system and other modules:

Woodward ProTech GII series:includes overspeed protection modules such as 5437-1078,5437-1081,etc.5437-1067A may be the internal display or interface board of these modules.

Woodward NetCon series:especially 5437-672 NetCon Field Terminal Module(FTM),5437-1067A may be part of it.

Woodward MicroNet series:Other digital controllers,5437-1067A,may be related to certain I/O or communication modules.

Woodward Control Software:Woodward ToolboxST for configuring,programming,diagnosing,and monitoring these systems™、Control Assistant or other specialized service tools,which are used to communicate with modules containing 5437-1067A.

Sensors and actuators:Field devices connected to these control systems,such as magnetic speed sensors(MPU),pressure transmitters,control valve actuators,etc.

HMI/SCADA system:Although 5437-1067A provides local display,higher-level systems will be connected to Woodward controllers through communication networks for centralized monitoring and operation.

Installation and maintenance

As 5437-1067A is an internal PCB component,its installation and maintenance are usually part of the overall module or system it is located in.

Installation(usually completed by professionals):

Refer to the complete module manual:The installation of 5437-1067A is not performed independently,but as an internal step within the module it replaces or installs(such as ProTech GII or NetCon FTM).Please refer to the official installation manual for the complete module.

Safety regulations:Before any installation or replacement operation,it is necessary to strictly follow the safety operation regulations of the equipment,including power-off,tagging(LOTO),and electrostatic discharge(ESD)measures.

Accurate alignment:Insert the PCB correctly into its slot or connect it to the designated connector,ensuring that all pins are aligned and avoiding bending or damage.

Fixed:Ensure that the PCB is securely fixed to the bracket or housing inside the module.

Maintenance suggestion:

Regular inspection:As part of the module,regularly check for physical damage,loose connections,and normal indicator lights on its exterior.

Environmental control:Ensure that the internal environment of the control cabinet where the module is installed meets the requirements,avoiding overheating,humidity,dust accumulation,or corrosive gases,which may affect the lifespan of the PCB.

Diagnostic monitoring:relies on the diagnostic function of the entire system.If the system reports a module malfunction and the diagnosis points to display or interface issues,it may be necessary to inspect or replace this PCB.

Spare parts strategy:For critical systems,it is recommended to retain spare parts for such internal PCBs for quick replacement in case of failure,reducing downtime.

Professional maintenance:Any replacement or repair involving internal components of Woodward control systems should be carried out by technicians authorized or professionally trained by Woodward.

WOODWARD 5437-1067A

Product Guarantee

We provide guarantees for the quality of WOODWARD 5437-1067A PCB components and their reliable performance in Woodward control systems.
