Description

GE IS420UCSBH1A is a high-performance embedded controller module that serves as a key component in General Electric’s(GE)Mark VIe,EX2100e,and LS2100e control systems,playing the role of a core processing unit in the field of industrial automation.This controller module is designed by GE specifically to meet the demanding requirements of modern industrial environments,aiming to provide excellent control capabilities and data processing efficiency.IS420UCSBH1A is not just a simple controller,it is an independent computing unit responsible for executing application code and communicating directly with I/O modules through its onboard I/O network(IONet)interface,without going through a backplane.

The core value of GE IS420UCSBH1A lies in its ability to provide highly reliable and responsive control capabilities,which are crucial for power generation(especially gas and steam turbines),excitation control,and other complex industrial processes.It is equipped with a powerful processor that can handle intensive computing tasks and accurately execute control algorithms,ensuring seamless operation and management of complex processes.IS420UCSBH1A adopts a fanless and battery free design,greatly improving its reliability and maintenance convenience in harsh environments,which is a concentrated reflection of GE’s technical strength in the field of industrial control.

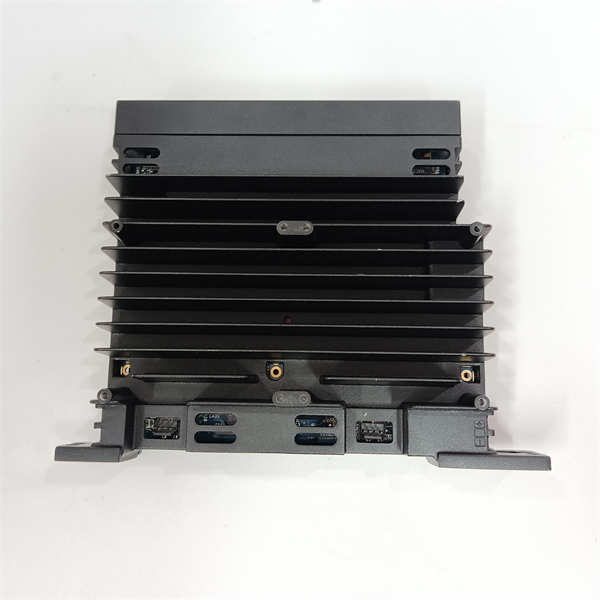

GE IS420UCSBH1A

technical specifications

Product model:IS420UCSBH1A

Manufacturer:General Electric(GE)

Product Type:UCSB Controller Module

Series:Mark VIe,EX2100e,LS2100e Control System

Processor:Intel EP80579 600 MHz or 1066 MHz(different versions may vary)

Operating system:QNX Neutrino(real-time multitasking operating system)

Memory:256 MB DDR2 SDRAM(with ECC),2 GB NAND Flash

Communication interface:Multiple 10/100Base TX Ethernet ports(IONet)

Supply voltage:18 VDC to 30 VDC(or 24-28 VDC nominal)

Typical power consumption:15.6W(nominal)/26.7W(peak)

Working temperature:-30°C to 65°C(-22°F to 149°F)

Installation method:Panel installation(no fan,no battery)

Certification:UL E207685,ATEX Zone 2,Group IIC(applicable to hazardous locations)

Main features and advantages

Excellent processor performance:The GE IS420UCSBH1A is equipped with a high-performance Intel EP80579 processor,with a frequency of up to 600 MHz or even higher versions reaching 1066 MHz,giving it powerful computing power.This enables IS420UCSBH1A to quickly execute complex control algorithms,process massive data streams,and support real-time decision-making,ensuring precise and efficient control in critical industrial applications,significantly improving system response speed and overall operational efficiency.

Fanless and battery free design:This controller module adopts an innovative fanless and battery free design,which greatly enhances its reliability and lifespan in harsh industrial environments.Not requiring a fan means reducing the risk of dust and moisture intrusion,lowering the likelihood of mechanical failure,and also eliminating noise.The battery free design eliminates the maintenance burden of regular battery replacement and potential battery failure risks,making the maintenance cost of IS420UCSBH1A lower and the availability higher.

Real time operating system and high reliability:IS420UCSBH1A runs the QNX Neutrino real-time multitasking operating system,which is renowned for its excellent real-time performance,stability,and reliability.This ensures precise execution of time sensitive tasks in industrial control applications,maintaining high response speed even in parallel multitasking,providing a solid foundation for critical control processes.

Powerful network communication capability:IS420UCSBH1A communicates with other I/O modules through the onboard IONet interface.IONet is a GE specific Ethernet designed specifically for Mark VIe control systems,ensuring high-speed,secure,and reliable data exchange between controllers and distributed I/O.This architecture enables IS420UCSBH1A to receive all input data and supports flexible redundancy configurations(such as dual or triple redundancy systems),ensuring that a single point of failure does not result in the loss of system input data.

Certification applicable to hazardous locations:IS420UCSBH1A complies with international safety standards such as UL E207685 and ATEX Zone 2,Group IIC,which means it can be safely used in non hazardous and specific hazardous locations.This greatly expands its application scope,especially for industries such as petroleum,natural gas,and chemical that have strict requirements for equipment explosion prevention and safety certification,demonstrating its high applicability in the field of industrial safety.

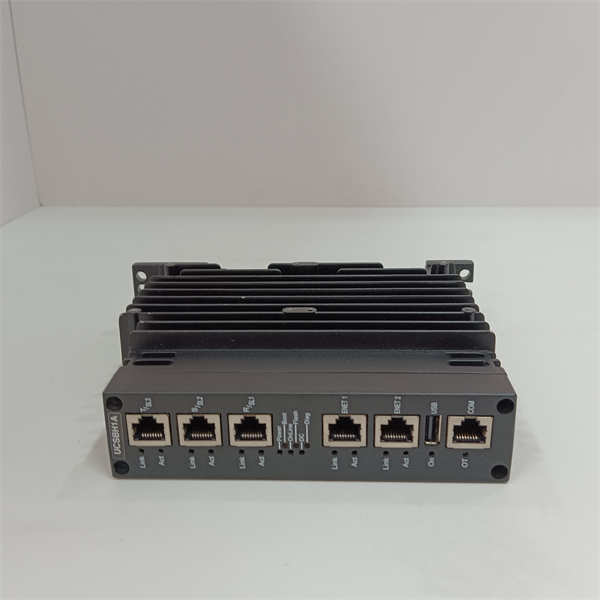

GE IS420UCSBH1A

application area

As the core processor module of GE Mark VIe,EX2100e,and LS2100e control systems,GE IS420UCSBH1A has a wide range of applications,covering various industrial processes with extremely high requirements for performance,reliability,and safety

Electricity generation and energy management:IS420UCSBH1A is the core brain in gas turbine and steam turbine control systems,responsible for precise control of turbine start-up,operation,shutdown sequences,as well as fuel management,combustion optimization,and safety protection functions.It ensures the stable grid connection,efficient operation,and optimal output of the generator set,and is an indispensable component of modern power plants.

Excitation control system:In the GE EX2100e excitation control system,IS420UCSBH1A is responsible for managing and regulating the excitation current of the generator,thereby accurately controlling the generator voltage and reactive power output.This is crucial for the stable operation of the power grid and the maintenance of power quality.

Transmission Control and Automation:In the LS2100e static starter system,IS420UCSBH1A is used for starting control of large motors or gas turbines,ensuring a smooth and efficient starting process.In addition,it is also suitable for other industrial automation applications that require high precision and real-time control,such as process automation,production line control,etc.

Safety Instrumented System(SIS):For functional safety circuits,especially applications that require SIL 2 and SIL 3 safety integrity requirements,the Mark VIeS safety control system under IS420UCSBH1A provides hardware and software modules certified by IEC 61508.This enables it to be used for critical safety functions such as emergency shutdown systems(ESD),fire and gas systems(F&G),ensuring the highest safety of factories and personnel.

Complex process control:Whether it is refining,chemical,metallurgical or other complex process industries,IS420UCSBH1A can serve as the core of distributed control systems,coordinating data acquisition,processing and control of various subsystems to achieve comprehensive optimization and fault prevention of production processes.

Related products

The products closely related to the GE IS420UCSBH1A controller module mainly include other modules and software tools in the GE Mark VIe,EX2100e,and LS2100e series:

GE IS420UCSAH1A:Similar to IS420UCSBH1A,the UCSA series controller module may have differences in processor,memory,or communication port configuration.

GE IS420UCSCH1B:UCSC series controller module,similar in functionality to UCSB series,but may differ in hardware details,with high software versatility.

GE IS2xx series I/O modules:including digital input/output modules(such as IS220PDIOH1A)and analog input/output modules(such as IS220PAICH1A),which communicate with IS420UCSBH1A through IONet to achieve on-site signal acquisition and output.

GE Mark VIe system rack and power module:IS420UCSBH1A needs to be installed in a specific rack and powered by the corresponding power module.

GE ControlST software suite:includes ToolboxST™Tool for programming,configuration,diagnosis,trend analysis,and system management of IS420UCSBH1A,it is an essential tool for engineers to carry out system development and maintenance.

GE HMI/Operator Station:Communicate with controllers such as IS420UCSBH1A through Ethernet or Unit Data Highway(UDH),provide human-machine interaction interface,and achieve centralized monitoring and operation.

GE Mark VIeS Safety I/O Module:In safety instrumented system applications,IS420UCSBH1A will work in conjunction with Mark VIeS Safety I/O modules that comply with IEC 61508 standards(such as IS220SCSAH1A).

Installation and maintenance

Preparation before installation:Before installing or replacing the GE IS420UCSBH1A controller module,it is necessary to carefully consult the official installation and maintenance manuals related to the GE Mark VIe and Mark VIeS control systems(such as GEH-6725)to understand the specific installation steps,electrical connection diagrams,environmental requirements,and all relevant safety regulations.Before performing any operation,it is necessary to strictly follow the safety operating procedures of the equipment,including completely disconnecting the relevant circuit power supply,performing lockout/tagout(LOTO)procedures,and taking electrostatic discharge(ESD)measures,as IS420UCSBH1A is a highly integrated electronic module that is very sensitive to static electricity.IS420UCSBH1A is designed to be directly installed on the control cabinet panel,so it is necessary to ensure that there is sufficient vertical airflow space at the installation location for heat dissipation.

Maintenance suggestion:GE IS420UCSBH1A module does not require fans and batteries,which significantly reduces the need for routine maintenance.However,it is still recommended to regularly use ToolboxST in the GE ControlST software suite™Monitor the operational status,performance indicators,and event logs of IS420UCSBH1A using diagnostic tools to promptly identify and resolve potential issues.Ensure that the internal environment of the control cabinet where the module is installed is kept clean,dry,and within the manufacturer’s recommended operating temperature and humidity range to extend its service life.Although IS420UCSBH1A is designed to be sturdy,it should still be protected from severe impacts or vibrations.Considering that this model may have been discontinued,it is recommended to reserve spare parts in advance for critical industrial applications;When purchasing from reliable third-party suppliers,it is essential to confirm their quality and warranty policies.Any complex fault diagnosis or maintenance involving the IS420UCSBH1A module or its internal components of the control system should be carried out by technical personnel authorized or professionally trained by GE to ensure the correctness of operation and the safety and reliability of the system.

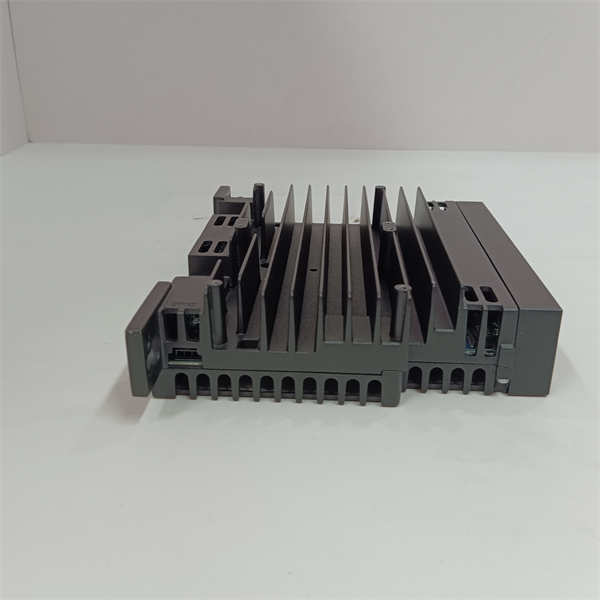

GE IS420UCSBH1A
