Description

VIBRO-METER MPC4 200-510-078-115 is a powerful mechanical protection card from Meggitt Sensing Systems’Vibro Meter®The core component of VM600 series mechanical protection system(MPS).This multifunctional card is designed to simultaneously measure and monitor up to four dynamic signal inputs and two speed inputs,providing comprehensive online protection and real-time monitoring for rotating machinery.The dynamic signal input of VIBRO-METER MPC4 200-510-078-115 is fully programmable and can accept various sensor signals,including acceleration,velocity,displacement(proximity probe),etc.It achieves relative vibration,absolute vibration Smax、Measurement and monitoring of various physical parameters such as eccentricity,thrust position,axial expansion,shell expansion,and dynamic pressure.As an important component of the VM600 system,VIBRO-METER MPC4 200-510-078-115 can perform advanced analysis such as digital filtering,integration or differentiation,rectification(RMS,mean,true peak or true peak to peak),and order tracking through digital signal processing(DSP)technology,ensuring accurate assessment and warning of mechanical operating status.

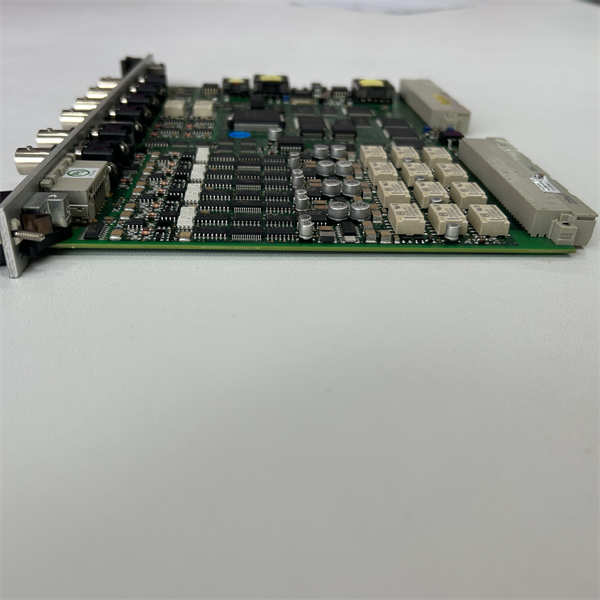

VIBRO-METER MPC4 200-510-078-115

technical specifications

Product model:VIBRO-METER MPC4 200-510-078-115

Manufacturer:Vibro Meter(Meggitt Sensing Systems)

Product Type:Mechanical Protection Card/Vibration Monitoring Module

Dynamic signal input:4-channel(programmable,accepts acceleration,velocity,displacement,etc.)

Tachometer speed input:2-channel(programmable,accepts proximity probes,magnetic pulse sensors,TTL signals)

Digital processing functions:digital filtering,integration/differentiation,rectification(RMS,mean,true peak,true peak to peak),order tracking

Alarm Setpoints:Programmable Alert and Danger Setpoints

Alarm output:Alarm relay contacts(via matching IOC4T card)

Analog output:0-10 VDC or 4-20 mA(via matching IOC4T card)

Communication interface:RS-232(for independent configuration),system internal bus

Self diagnostic function:Built in”OK System”continuously monitors the status of sensors and signal chains

Working temperature:-30°C to+75°C

Compliant with standard:API 670

Main features and advantages

VIBRO-METER MPC4 200-510-078-115 has significant characteristics and advantages in the field of industrial machinery protection and condition monitoring,making it the preferred protection solution for critical rotating machinery.

Comprehensive multi-channel monitoring capability:VIBRO-METER MPC4 200-510-078-115 can simultaneously process up to four dynamic signal inputs and two speed inputs.This powerful multi-channel capability enables it to synchronously monitor different parts of a machine,such as bearings,gearboxes,and rotors,and combine speed information for more accurate diagnosis,providing comprehensive health assessment for complex machinery.

Advanced Digital Signal Processing(DSP):This card is equipped with advanced DSP technology that enables real-time digital filtering,integration/differentiation,rectification,and order tracking.This means that VIBRO-METER MPC4 200-510-078-115 can not only measure raw vibration signals,but also perform deep analysis on them,extract feature parameters directly related to fault types(such as imbalance,misalignment,bearing damage,gear meshing problems),and provide more accurate diagnostic information.

Programmable and flexible:All dynamic signals and speed inputs are independently programmable,allowing users to flexibly configure according to different sensor types(accelerometers,speed sensors,proximity probes)and monitoring needs.The alarm set points(alarm and danger levels)are also fully programmable and support adaptive alarm function.The alarm threshold can be dynamically adjusted according to the machine’s operating speed or other external information to avoid false alarms and missed alarms.

Integrated power supply and output:VIBRO-METER MPC4 200-510-078-115 and its matching IOC4T input/output card form a card pair,providing integrated sensor power supply,buffer output,DC output,relay output,and serial communication interface.This highly integrated design reduces external circuits and wiring,simplifies system architecture,and improves reliability.

Real time online monitoring and diagnosis:As part of the VM600 series,VIBRO-METER MPC4 200-510-078-115 operates continuously online to measure and monitor the health status of machinery in real time.The built-in”OK System”function can continuously monitor the integrity of the sensor signal chain,promptly detect disconnection,sensor faults,or conditioner issues,ensure the validity of monitoring data,and visually display status and alarm information on the front panel LED.

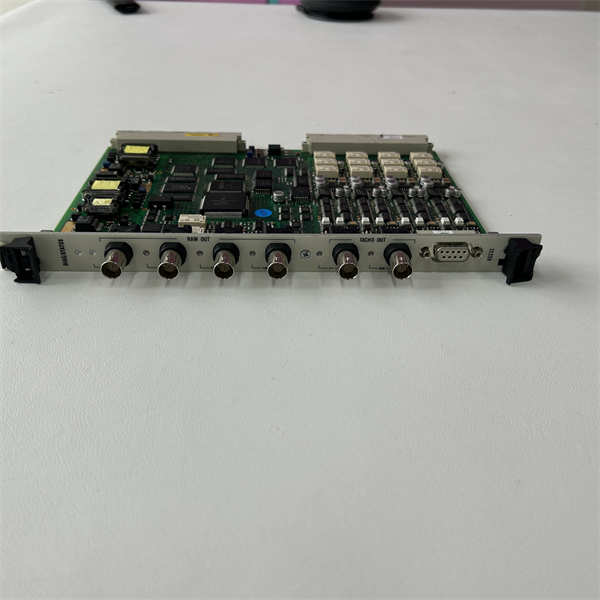

VIBRO-METER MPC4 200-510-078-115

application area

VIBRO-METER MPC4 200-510-078-115,as the core mechanical protection card,is widely used in industrial fields that require continuous online monitoring and protection of critical rotating machinery to ensure equipment safety,improve operational efficiency,and prevent catastrophic failures.

Electricity generation industry:In thermal power generation,gas turbine power generation,hydropower generation,and nuclear power plants,VIBRO-METER MPC4 200-510-078-115 is used to monitor and protect large rotating machinery such as turbines,generators,feedwater pumps,induced draft fans,and forced draft fans.It can monitor the key parameters of these devices in real time,such as rotor vibration,bearing vibration,axial displacement,and speed,to ensure the safe and stable operation of the unit and avoid shutdowns caused by mechanical failures.

Oil and gas industry:In the process of oil and gas extraction,transportation,and refining,key equipment such as compressors,pumps,gas turbines,and pipeline fans are the guarantee of production continuity.VIBRO-METER MPC4 200-510-078-115 provides mechanical protection in these applications,preventing equipment damage and ensuring production safety and efficiency through early detection of vibration anomalies.

Chemical and petrochemical industries:Equipment such as reactor agitators,pumps,fans,and compressors in large chemical plants typically operate in high temperature,high pressure,or corrosive environments.VIBRO-METER MPC4 200-510-078-115 is capable of monitoring the vibration and speed of these critical equipment,providing reliable protection and reducing the risk of shutdown.

Metallurgical and mining industries:In heavy industries such as steel,cement,and mining,large equipment such as mills,crushers,fans,and motors bear enormous loads.VIBRO-METER MPC4 200-510-078-115 can be used to monitor the vibration status of these devices,promptly detect issues such as bearing wear,imbalance,or misalignment,thereby extending equipment life and reducing maintenance costs.

Other general industrial applications:Industrial fields with large or critical rotating machinery,such as papermaking,pharmaceuticals,HVAC,and aerospace testing,may use VIBRO-METER MPC4 200-510-078-115 to provide reliable mechanical protection and condition monitoring solutions.

Related products

VIBRO-METER MPC4 200-510-078-115 is a module in the Vibro Meter VM600 series system,therefore its related products mainly include other modules,sensors,and supporting software of the series.

VIBRO-METER IOC4T(200-560-000-111/200-560-000-019):This is an input/output card that must be used in conjunction with VIBRO-METER MPC4 200-510-078-115.It forms a card pair with the MPC4 card,providing power supply,buffer output,relay alarm output,and communication interface for sensors.

VIBRO-METER RLC16(200-570-000-014):A 16 channel relay card used to expand the alarm output capability of the VM600 system,which can be triggered by VIBRO-METER MPC4 200-510-078-115 or other protection cards.

VIBRO-METER IPC4:Another mechanical protection card from the VM600 series,which may differ in functionality,number of channels,or specific applications from VIBRO-METER MPC4 200-510-078-115,such as for specific SIL certification applications.

VIBRO METER CPUx(CPUM/CPUMk2):The rack controller and communication interface module of the VM600 system,used for system configuration management,data communication,and integration with SCADA/DCS systems.

VIBRO-METER ABE04x/ABE056 Rack:Installation chassis for VM600 series modules,providing power and backplane communication.

VIBRO-METER sensors:including various accelerometers(such as CE110),velocity sensors,proximity probes(such as PQ600),and pressure sensors,which are the input front-end of VIBRO-METER MPC4 200-510-078-115.

VibroSight software:a specialized configuration,monitoring,and diagnostic software provided by Meggitt for parameter setting,real-time data viewing,historical data analysis,and report generation of VIBRO-METER MPC4 200-510-078-115.

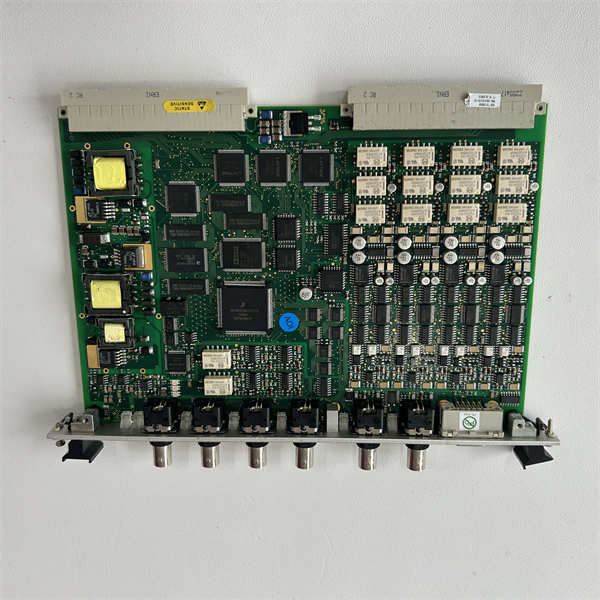

VIBRO-METER MPC4 200-510-078-115

Installation and maintenance

Preparation before installation:Before installing VIBRO-METER MPC4 200-510-078-115,please read and understand the installation manual of the Vibro Meter VM600 series in detail,especially the chapter about the VIBRO-METER MPC4 200-510-078-115 card and its matching IOC4T card.Ensure that the VM600 rack is correctly installed in a location that meets environmental requirements and has been connected to a stable power source.Check if the backplane connectors of the rack are clean and undamaged,ensuring that VIBRO-METER MPC4 200-510-078-115 can be inserted correctly.When performing any module insertion or removal operation,it is necessary to cut off the power supply of the rack and take appropriate anti-static measures,such as wearing an anti-static wristband,to prevent static electricity from damaging sensitive electronic components.Pre plan the routing of all sensor input and output cables to ensure that the cable types meet the requirements,and ensure proper shielding and grounding to minimize electromagnetic interference.

Maintenance suggestion:Regular preventive maintenance is crucial to ensure the long-term stable and reliable operation of VIBRO-METER MPC4 200-510-078-115 and its entire mechanical protection system.It is recommended to regularly check whether the VIBRO-METER MPC4 200-510-078-115 card and its matching IOC4T card are securely plugged and unplugged in the rack,and whether all connecting cables are intact,free from looseness or corrosion.Keep the interior of the rack clean,remove dust and pollutants,ensure good ventilation and heat dissipation,and prevent overheating from affecting module performance.Regularly check the status indicator lights and system logs of VIBRO-METER MPC4 200-510-078-115 through the software interface of VM600 system,and promptly detect and handle any alarm or fault information.Although VIBRO-METER MPC4 200-510-078-115 does not require on-site calibration,the sensors connected to it may require regular calibration or replacement to ensure the accuracy of measurement data.When performing any maintenance or troubleshooting,please be sure to follow the official guidelines and safety operating procedures of Vibro Meter.

Product Guarantee

We are well aware of the importance of rotating machinery protection systems for industrial production safety and asset integrity,and therefore provide comprehensive product protection for every VIBRO-METER MPC4 200-510-078-115 mechanical protection card.
