Description

BENTLY NEVADA 3500/22M 146031-01 is a high-performance vibration monitoring module designed specifically for real-time status monitoring of industrial equipment.As a member of the BENTLY NEVADA 3500 series,it can accurately measure and analyze equipment vibration data,providing scientific basis for the health status of the equipment.This module is widely used for monitoring rotating machinery,especially for key equipment in industries such as power generation,petroleum,and chemical.

In the automation control system,the 3500/22M 146031-01 module utilizes advanced vibration monitoring technology to capture real-time changes in equipment operating status,helping engineers identify potential fault risks in a timely manner and perform preventive maintenance,thereby significantly improving equipment reliability and production efficiency.Its precise data collection and analysis capabilities enable early detection and handling of equipment failures in industrial production,avoiding production interruptions and economic losses caused by equipment downtime.

This product is also equipped with a powerful communication interface that supports seamless connection with other monitoring modules and control systems,ensuring the efficient operation of the entire monitoring system.With its outstanding performance and stability,the 3500/22M 146031-01 is an indispensable core component in large industrial systems.

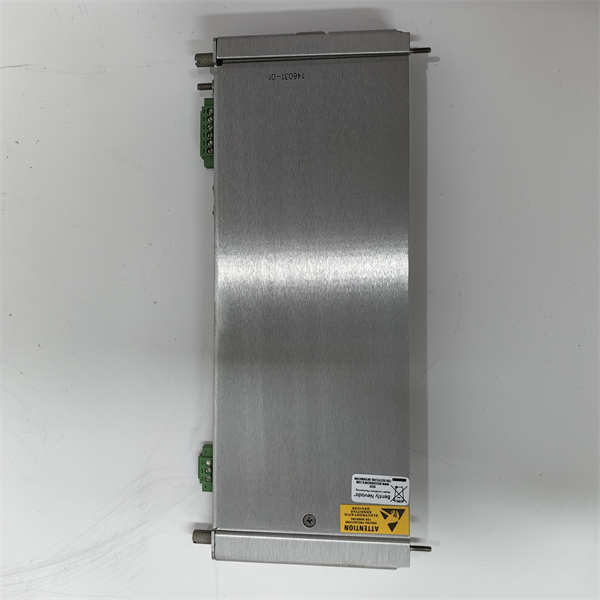

BENTLY NEVADA 3500/22M 146031-01

Main features and advantages:

High precision vibration monitoring:using advanced vibration acquisition technology,it can accurately capture small changes in equipment and effectively improve the accuracy of equipment fault warning.

Powerful compatibility:Compatible with other monitoring modules in the BENTLY NEVADA 3500 series,suitable for various industrial control systems,and easy to expand and upgrade.

Wide working environment range:Supports working temperatures from**-40°C to+85°C**,suitable for various harsh environments.

Enhanced fault warning function:capable of real-time monitoring of equipment status,warning potential vibration anomalies,helping to take maintenance measures in advance and reducing unexpected shutdowns.

Low maintenance cost:By providing real-time data and accurate fault prediction,maintenance frequency and labor costs are reduced.

BENTLY NEVADA 3500/22M 146031-01 Technical specifications:

Product model:3500/22M 146031-01

Manufacturer:BENTLY NEVADA

Product Type:Vibration Monitoring Module

Working temperature range:-40°C to+85°C

Voltage requirement:24V DC

Size:120mm x 100mm x 60mm

Interface type:4-20mA output,RS485 communication

Protection level:IP20

Maximum power consumption:12W

Working humidity:0-95%RH(no condensation)

Response time:≤100ms

Signal output:vibration frequency,amplitude,phase

Number of input channels:2 channels

Application areas:

BENTLY NEVADA 3500/22M 146031-01 is widely used for vibration monitoring of various industrial equipment,especially for real-time status detection of key equipment such as rotating machinery,pumps,fans,and compressors.In industries such as petroleum,natural gas,electricity,metallurgy,etc.,the 3500/22M 146031-01 module can help engineers monitor the health status of equipment,detect potential faults in advance,reduce unplanned shutdowns,and ensure the continuous and stable operation of production lines.Through precise data analysis,it effectively improves the service life of equipment and reduces maintenance costs.

Related products:

BENTLY NEVADA 3500/22M 146031-02-Suitable for monitoring devices of the same series,with more powerful functions.

BENTLY NEVADA 3500/25 146032-01-Suitable for monitoring other types of sensors with wide compatibility.

BENTLY NEVADA 3500/40 138602-01-Used for higher precision vibration and noise monitoring.

BENTLY NEVADA 3500/60 138603-01-Designed specifically for high-frequency vibration monitoring,suitable for high temperature environments.

BENTLY NEVADA 3500/45M 138609-01-Suitable for condition monitoring of heavy machinery to enhance system stability.

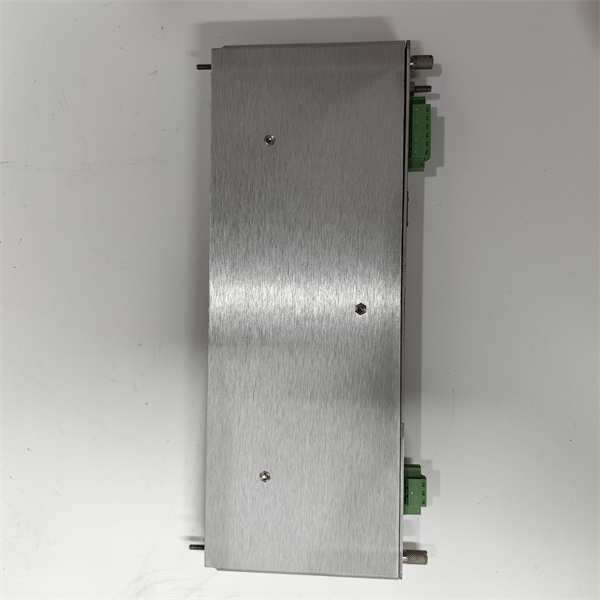

BENTLY NEVADA 3500/22M 146031-01

Installation and maintenance:

Preparation before installation:Before installing BENTLY NEVADA 3500/22M 146031-01,please ensure that the equipment is completely turned off and all electrical connections meet the system requirements.During installation,attention should be paid to the power requirements of the module,ensuring stable voltage and avoiding contact with any electrical equipment that may cause damage.

Maintenance suggestion:Regularly check the working status of the module,especially the communication interface and sensor connection.It is recommended to conduct a comprehensive inspection every three months to ensure that the vibration sensor and signal output are working properly.Use professional tools to calibrate sensors to ensure measurement accuracy.
