Description

BENTLY NEVADA 3500/42M 176449-02 is a vibration monitoring module designed specifically to enhance the operational safety and reliability of industrial equipment.This module can monitor the real-time operation status of devices,especially in high load and complex environments,helping users identify potential problems in advance and take preventive measures.Compatible with other modules in the BENTLY NEVADA 3500 series,the 3500/42M 176449-02 can be connected to various types of devices,providing multi-channel vibration data acquisition and analysis.

This module supports multiple input signal types,including analog and digital signals,and can accurately detect key parameters such as vibration,temperature,and pressure of the equipment.Once an abnormality is detected,the module can trigger an alarm in a timely manner and provide detailed fault diagnosis information,helping users quickly locate the problem and take repair measures,avoiding production stagnation caused by equipment failure.

In addition,the 3500/42M 176449-02 has high durability and stability,and can still work stably in extreme industrial environments.Its superior anti-interference ability enables it to operate normally in environments with strong electromagnetic interference,providing all-weather monitoring and protection for important equipment.

Main features and advantages

Multi channel vibration monitoring and diagnosis

BENTLY NEVADA 3500/42M 176449-02 provides multi-channel vibration monitoring,which can simultaneously monitor multiple devices,especially suitable for status monitoring of large production lines or multiple important equipment.It can accurately analyze the frequency and amplitude of equipment vibration,and detect possible fault points of the equipment early.

High precision fault diagnosis function

This module is equipped with advanced signal processing technology,which can quickly identify changes in equipment status and notify operators through alarm and diagnostic functions.Its precise fault diagnosis function helps reduce equipment downtime and improve the overall reliability of the equipment.

Real time alarm and status feedback

When the device shows signs of abnormality or malfunction,the 3500/42M 176449-02 module can immediately issue an alarm to help users detect and troubleshoot the problem as early as possible.Through its precise real-time feedback,users can respond quickly and avoid causing greater losses.

Strong anti-interference ability

The 3500/42M 176449-02 module was designed with full consideration of electromagnetic interference in industrial environments,ensuring stable operation even in complex environments and providing accurate equipment monitoring data.

Easy to integrate and maintain

As part of the BENTLY NEVADA 3500 series,the 3500/42M 176449-02 can be seamlessly integrated with other monitoring modules to form a complete monitoring system.Its modular design makes the installation and maintenance process easier and faster.

BENTLY NEVADA 3500/42M 176449-02 Technical Specifications

Product model:3500/42M 176449-02

Manufacturer:BENTLY NEVADA

Product Type:Vibration Monitoring Module

Power supply voltage:24V DC

Working temperature range:-40°C to+85°C

Protection level:IP20

Input signal type:analog signal,digital signal

Output signal type:digital signal

Communication protocols:MODBUS,Profibus

Installation requirements:DIN rail installation

Size:100mm x 80mm x 60mm

Weight:500g

Response time:<5ms>

application area

BENTLY NEVADA 3500/42M 176449-02 module is widely used in industries such as petroleum,chemical,power,steel,metallurgy,etc.,especially suitable for high-risk equipment that is sensitive to vibration,such as pumps,compressors,fans,generators,etc.This module can help users real-time grasp the status of equipment,provide early warning,reduce equipment failures,and ensure stable operation of the production line.

Its multi-channel monitoring capability makes it particularly suitable for centralized monitoring of large factories and multiple devices.Whether in conventional environments or high temperature and high humidity environments,the 3500/42M 176449-02 can ensure the stability and safety of the equipment.

Related products

BENTLY NEVADA 3500/22M 288055-01-Vibration Monitoring Module,suitable for status monitoring of rotating machinery.

BENTLY NEVADA 3500/50M 125744-01-Equipment Protection System Module,providing comprehensive equipment monitoring and protection.

BENTLY NEVADA 3500/42 125722-01-Provides comprehensive monitoring of vibration and temperature.

BENTLY NEVADA 3500/12M 125737-01-Vibration and Pressure Monitoring Module,suitable for high-risk environments.

BENTLY NEVADA 3500/62M 125749-01-High performance vibration monitoring and fault diagnosis module.

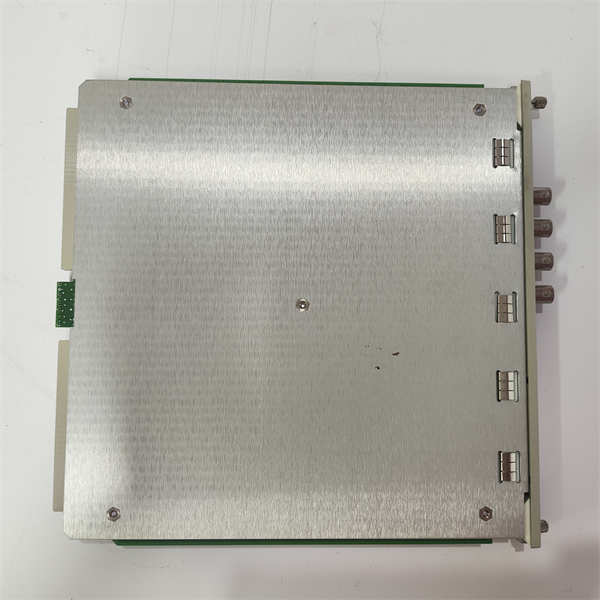

BENTLY NEVADA 3500/42M 176449-02

Installation and maintenance

INSTALLATION REQUIREMENTS

Before installing BENTLY NEVADA 3500/42M 176449-02,ensure that the power supply voltage and connection lines meet the requirements of the equipment.During installation,DIN rails can be used to secure and ensure sufficient ventilation space around the module to prevent overheating.

Maintenance suggestions

Regularly check the working status of the equipment,especially the connection of signal input and output.For devices with alarm outputs,it should be ensured that the alarm system functions properly.In addition,regular self checks can be conducted to check the stability and accuracy of the signal.Conduct a comprehensive inspection once a year and maintain and clean the hardware parts of the module to ensure that its performance is not affected.
