Description

BENTLY NEVADA 3500/92 136180-01 Vibration Monitoring Module is one of the core products under the Bently Nevada brand,specifically designed for real-time monitoring of the vibration status of industrial equipment to prevent mechanical failure or damage caused by excessive vibration.This module adopts advanced sensor technology to collect and analyze equipment vibration data in real time,providing accurate fault warnings for equipment maintenance personnel,helping to extend equipment service life and reduce downtime.

As a member of the 3500 series products,BENTLY NEVADA 3500/92 136180-01 has excellent signal processing capabilities,capable of processing vibration signals from various sensors and conducting detailed analysis.This module supports remote monitoring and can seamlessly connect with other automation control systems,making it easy for device managers to timely understand the operating status of the equipment and respond accordingly.It can work stably in harsh industrial environments,greatly improving the safety and productivity of equipment.

This module is suitable for various heavy industrial applications,widely used in fields such as petroleum,natural gas,electricity,manufacturing,etc.,especially outstanding in equipment that requires efficient and high-precision monitoring of vibration.Whether it is large generators,pumps,compressors,or other high load equipment,the 3500/92 136180-01 can provide precise vibration monitoring,helping to achieve refined equipment management and fault prevention.

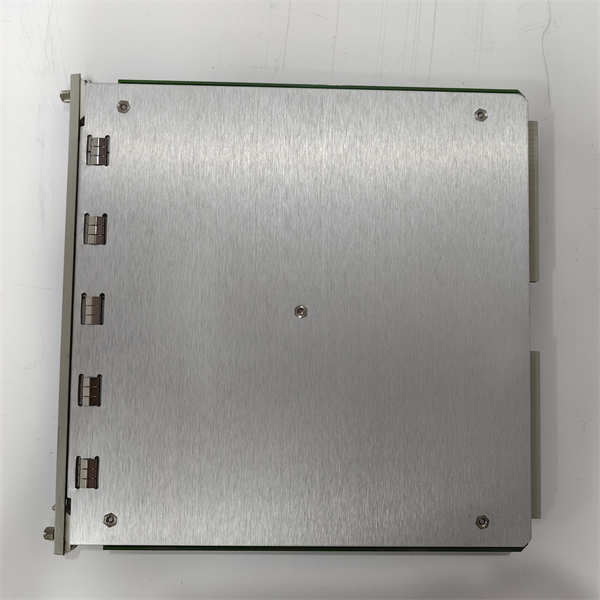

BENTLY NEVADA 3500/92 136180-01

Main features and advantages

High precision vibration monitoring:Through precision sensors,the 3500/92 136180-01 can provide extremely accurate vibration data,assisting in real-time monitoring of equipment operation status.

Seamless integration:This module supports compatibility with multiple automation control systems and can be perfectly integrated with existing equipment,simplifying system construction.

Powerful fault prediction function:This vibration monitoring module not only provides real-time data,but also has the ability to predict faults,issue timely warnings,and reduce the occurrence of sudden faults.

Adapt to multiple work environments:With extremely high environmental adaptability,it supports a wide temperature range of-40°C to+70°C and can work stably in harsh environments.

Enhance device security:Through real-time monitoring,avoid damage to devices due to excessive vibration,extend device lifespan,and reduce maintenance costs.

BENTLY NEVADA 3500/92 136180-01 Technical Specifications

Product model:3500/92 136180-01

Manufacturer:BENTLY NEVADA

Product Type:Vibration Monitoring Module

Input voltage:24V DC

Working temperature range:-40°C to+70°C

Vibration monitoring range:0.5g to 50g

Installation method:DIN rail installation

Signal output:4-20 mA analog signal

Communication protocol:Modbus RTU

Electrical interface:2 independent channels

Protection level:IP20

Weight:0.8kg

application area

BENTLY NEVADA 3500/92 136180-01 vibration monitoring module is widely used for vibration monitoring of various heavy industrial equipment,especially in equipment that requires continuous operation and high stability.For example,pumps and compressors in the oil and gas industry,generators and wind turbines in the power industry,etc.,all require precise monitoring of vibration status.This module can effectively detect and predict potential equipment failures,helping operators to handle them in advance and reduce losses caused by equipment downtime.

In addition,3500/92 136180-01 has been widely used in high-precision equipment in the manufacturing industry.For production lines that require high precision and efficiency,vibration monitoring is the key to ensuring smooth production.This product can help enterprises monitor the operation status of equipment in real time,detect problems in advance,and optimize maintenance and repair plans.

Related products

3500/22M 288055-01:Used in conjunction with 3500/92 136180-01,it provides a more comprehensive vibration monitoring solution.

3500/42M 176449-02:A module in the same series,suitable for vibration monitoring of high load equipment.

3500/72 125730-01:Used for vibration monitoring of power equipment to enhance the safety of industrial control systems.

3500/12 136140-01:Vibration monitoring for more precise equipment,compatible with 3500/92 series products.

3500/60 125720-01:Provides an external data acquisition solution compatible with 3500/92.

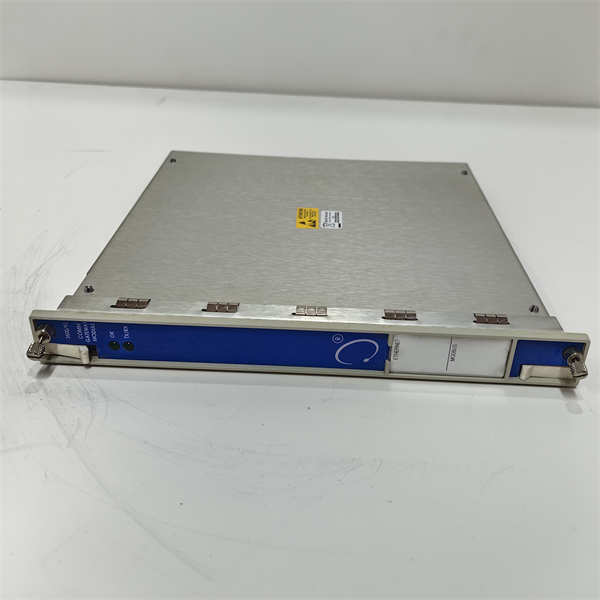

BENTLY NEVADA 3500/92 136180-01

Installation and maintenance

Preparation before installation:Before installing the 3500/92 136180-01 vibration monitoring module,it is necessary to confirm that the electrical connections of the equipment meet the standards and that the installation environment meets the temperature and protection level requirements.During installation,it is necessary to ensure that the module is correctly fixed on the DIN rail and connected to the correct power and signal output interfaces.

Maintenance suggestion:Regularly check the electrical connections and signal output status of the 3500/92 136180-01 module to ensure stable operation of the equipment.Clean the dust and stains on the module to avoid affecting the accuracy of the vibration sensor.Regularly review and analyze equipment vibration data,promptly handle warning information,and prevent potential failures.
