Description

BENTLY NEVADA 3500/92 136188-01 Vibration Monitoring Module is one of Bently Nevada’s important products in the field of industrial equipment monitoring,designed specifically for high demand industrial environments.It adopts advanced vibration sensing technology,which can monitor the vibration status of equipment in real time,help identify potential sources of faults,and reduce the risk of equipment damage and shutdown.

As a member of the 3500 series,the 3500/92 136188-01 provides a comprehensive assessment of equipment status through high-precision signal processing and data analysis.This vibration monitoring module can be perfectly integrated with existing automation control systems,achieving seamless data transmission and real-time monitoring.Through linkage with other monitoring devices,3500/92 136188-01 can detect equipment problems in advance,issue warning signals in a timely manner,effectively avoid sudden equipment shutdown or failure,and ensure the continuity of production and efficient operation of equipment.

This module has a wide range of applications,especially suitable for monitoring key equipment in industries such as petroleum,natural gas,electricity,and manufacturing.It can provide stable vibration data for large units,pumps,compressors and other equipment,helping operators to maintain them in a timely manner and avoid production losses caused by malfunctions.

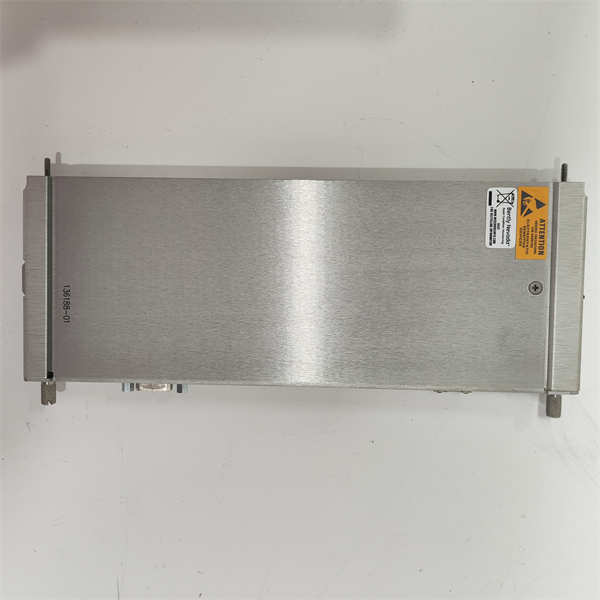

BENTLY NEVADA 3500/92 136188-01

Main features and advantages

High precision vibration monitoring:3500/92 136188-01 uses advanced sensor technology to accurately capture equipment vibration signals and perform real-time analysis,providing reliable data support for equipment maintenance personnel.

Real time warning function:This module can detect abnormal equipment vibration in a timely manner,automatically issue fault warnings,help operators react in advance,and reduce sudden failures.

Adapting to harsh environments:3500/92 136188-01 is designed to cope with extreme working environments,with a working temperature range from-40°C to+70°C,and can operate stably in high,low,and harsh conditions.

Simple integration:Supports integration with existing automation systems,data can be transmitted through Modbus protocol,ensuring seamless connection between systems.

Save maintenance costs:By providing early warning,help to carry out equipment maintenance in a timely manner,and avoid maintenance and downtime costs caused by equipment failures.

3500/92 136188-01 has efficient vibration detection function,which can ensure the stability of equipment under high load operation,saving enterprises downtime and production losses caused by equipment failures.

BENTLY NEVADA 3500/92 136188-01 Technical Specifications

Product Model:3500/92 136188-01

Manufacturer:BENTLY NEVADA

Product Type:Vibration Monitoring Module

Input voltage:24V DC

Working temperature range:-40°C to+70°C

Vibration monitoring range:0.5g to 50g

Installation method:DIN rail installation

Signal output:4-20 mA analog signal

Communication protocol:Modbus RTU

Electrical interface:2 independent channels

Protection level:IP20

Weight:0.8kg

application area

BENTLY NEVADA 3500/92 136188-01 is widely used for vibration monitoring of various heavy equipment,especially for equipment that requires continuous operation and carries high risks.For example,natural gas compressors and pumps in the oil and gas industry,large generators and wind turbines in the power industry,and high-precision equipment in the manufacturing industry.By monitoring equipment vibration in real-time,3500/92 136188-01 can effectively predict potential faults and reduce sudden shutdown events.

In addition,this product is widely applicable to industrial equipment that requires high-precision vibration monitoring,especially for equipment monitoring in high load and high-risk environments.It can help users achieve more refined device management and ensure continuous improvement of production efficiency.

Related products

3500/22M 288055-01:Used in conjunction with the 3500/92 136188-01 module to provide more complete vibration monitoring and data analysis.

3500/42M 176449-02:Used for vibration monitoring of large equipment,suitable for high load conditions.

3500/12 136140-01:Provide more detailed monitoring solutions for vibration monitoring modules for precision equipment.

3500/72 125730-01:Used for vibration monitoring of power equipment,compatible with 3500/92 136188-01.

3500/60 125720-01:Provides vibration data acquisition and analysis for industrial systems.

Installation and maintenance

Preparation before installation:When installing the 3500/92 136188-01 vibration monitoring module,ensure that the equipment power and electrical interfaces meet the requirements.During installation,the module should be securely mounted on the DIN rail and connected to the relevant signal input and output ports.

Daily maintenance:Regularly check the electrical connections of the module to ensure stable and reliable signal output.Clean the surface of the module to prevent dust and debris from affecting its normal operation.Conduct a system inspection once a year to check for abnormal vibration data and promptly process warning information.
