Description

RELIANCE S-D4039 is a highly integrated servo system drive module that provides high-precision and high response control capabilities for industrial automation.It not only includes an efficient power card,but also has closed-loop control capability,suitable for precise control of position/speed/torque.The module is equipped with advanced protection algorithms,providing real-time protection against motor overload,overheating,and abnormal voltage.

The module is equipped with rich communication interfaces such as CANopen,DeviceNet,and ProfiBus,which can seamlessly integrate with PLC,DCS,and HMI systems to achieve networked control and centralized operation and maintenance of abbstock.com.RELIANCE S-D4039 can drive AC and DC servo motors,making it particularly suitable for fields such as CNC,packaging,printing,robotics,and 3D printing.Its high dynamic response and precise control ensure smooth movement and accurate positioning.

In addition,the module is designed for industrial environments,with an IP65 protection rating and a sturdy casing,and can be directly installed on workshop control cabinets or servo racks.Its power input range is 220-380 V AC and its output capability is 24 A,allowing it to operate continuously and stably under high loads.

Main features and advantages

High precision servo control

RELIANCE S-D4039 supports three closed-loop control of position,speed,and torque,making it suitable for automation scenarios with high precision requirements.

Dynamic rapid response

The module has excellent dynamic performance,real-time adjustment of load changes,effectively avoiding jitter and out of step.

Redundancy and overload protection

Built in overcurrent,overvoltage,overtemperature and other protection mechanisms,and supports redundant power supply design to ensure stable operation of the servo system plcdcsmodule.com+5xydcontrol.com+5mingshengplc.com+5.

Industrial grade durable design

The IP65 protection level and corrosion-resistant galvanized shell make S-D4039 suitable for heavy industry workshops and high dust environments.

Wide compatibility

Compatible with AC/DC servo motors,supports communication protocols such as CANopen,DeviceNet,and ProfiBus,and is compatible with various control systems on abbstock.com.

Humanized configuration

The supporting software interface is intuitive,facilitating parameter setting,status monitoring,and fault diagnosis,significantly improving operation and maintenance efficiency.

technical specifications

Product model:S-D4039

Manufacturer:RELIANCE Electric

Product type:Servo Drive Module

Input voltage range:220-380 V AC

Output current:24 A

Output power:approximately 230 W

Control type:closed-loop position/speed/torque control

Communication interface:CANopen,DeviceNet,ProfiBus(optional)

Protection function:overcurrent/overvoltage/overtemperature protection,module redundancy function

Protection level:IP65

Working temperature:-25°C to+55°C

Installation method:direct cabinet installation

Environmental adaptation:heavy dust and moisture-proof environment in the workshop

Shell material:galvanized treatment

application area

RELIANCE S-D4039 is widely used in the field of industrial automation control,such as CNC machine tools,packaging machinery,printing equipment,robot systems,conveying equipment,and 3D printers.Its high-precision closed-loop control and fast response capability make it particularly suitable for scenarios that require high precision in motion.The durability,communication,and protection characteristics of the module also make it suitable for long-term stable operation in heavy industry workshop environments.

Related products

S-D4007:High performance CNC drive module,supporting higher power.

S-D4043:CompactPCI interface driver control card,compatible with Modular systems.

VZ33000 UAZ3455/UAZ3475:Comes with a servo drive integration kit that supports input/output control functions.

S-D4009:Absolute value encoder input card,suitable for synchronous control environment.

WR-D4005/07:PSC7000 power module can be used as a system power support unit.

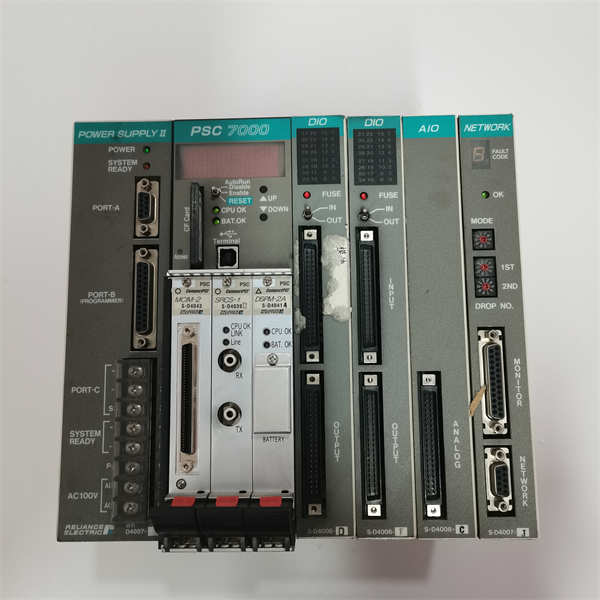

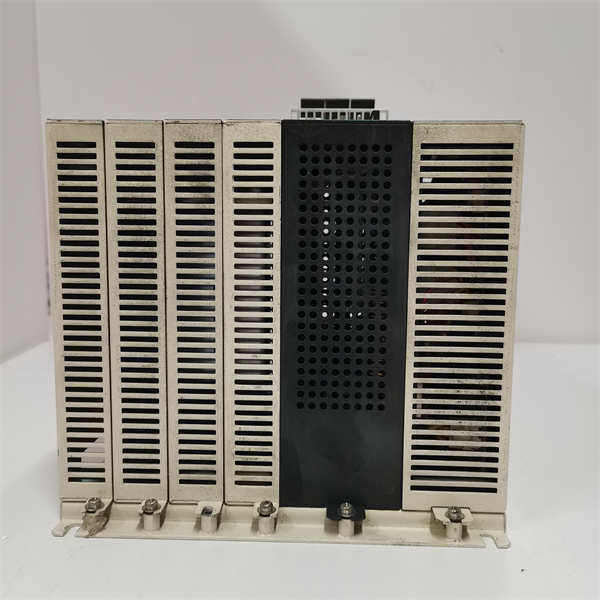

RELIANCE S-D4039

Installation and maintenance

Preparation before installation:Please make sure to disconnect the power and confirm that the input power supply(220-380 V AC)matches the output current requirement.Clean the cabinet environment to ensure space and ventilation with IP65 protection design;And ensure that the ground wire is well grounded to prevent electrical interference.

Maintenance suggestion:Regularly check the terminal fastening,dust prevention condition,and unobstructed heat dissipation air duct.Monitor module temperature,communication status,and fault alarms during runtime.It is recommended to recalibrate the current/position loop every 6 months,regularly backup parameter configurations,and maintain redundant module coverage to ensure that the system is not interrupted during hot swapping replacement.
