Description

HIMA 80105 984080105 is one of the key modules in the HIMA safety system,commonly used in emergency shutdown systems(ESD),burner management systems(BMS),and high reliability process automation scenarios.It is based on the HIMA independent redundant architecture platform,complies with the IEC 61508 standard,supports SIL 3 functional safety level,and ensures the response reliability of industrial control systems in critical situations.

In terms of design,HIMA 80105 984080105 adopts a compact structure,which facilitates high-density installation in cabinets,and has excellent electromagnetic compatibility(EMC),which can operate stably in industrial environments with complex electromagnetic interference.This module is compatible with HIMA’s HiMatrix and HiMax systems and can be used for control tasks involving analog,switch,or mixed input/output.

Whether it is the high safety control requirements of petrochemical refining,power plant boiler control,metallurgical smelting,or the pharmaceutical and food industries,HIMA 80105 984080105 can play a key role in achieving precise response and control of on-site equipment,providing core support for stable system operation.

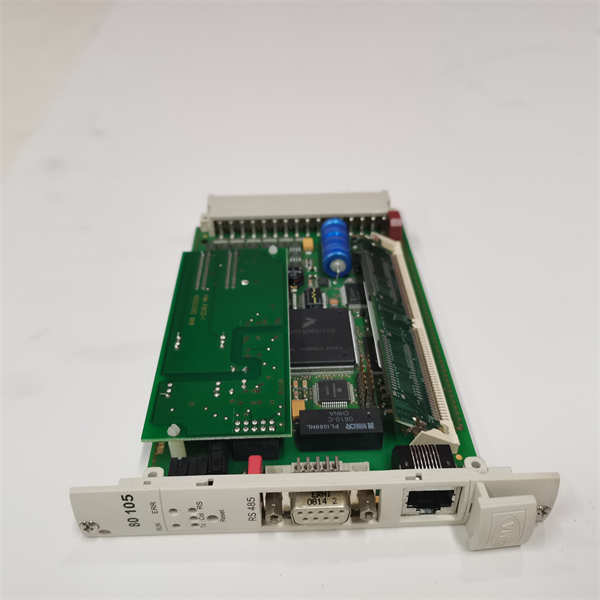

HIMA 80105 984080105

Main features and advantages

High level functional safety certification:

HIMA 80105 984080105 meets SIL 3 certification under the IEC 61508 standard and is suitable for high-risk application scenarios such as emergency shutdown systems(ESD),fire and gas monitoring systems(FGS),etc.,ensuring that the control system still has reliable fault tolerance in the event of a fault.

Modular design,flexible integration:

This module adopts a standard 19 inch rack mounted module structure,which can be flexibly deployed in safety control platforms such as HIMA HiMax and HiMatrix,and supports hot swap for easy maintenance and replacement.

High speed signal processing capability:

Built in high-speed digital processor(DPU)with fast response loop mechanism,suitable for scenarios requiring millisecond level control response,such as natural gas compression stations,steam release systems,etc.

Redundant architecture support:

HIMA 80105 984080105 supports multi-level redundant configurations,including Dual Channel or Triple Redundancy Architecture(TMR),which can maintain stable system operation even in the event of a single point of failure.

Strong communication capability:

Supports various industrial communication protocols such as Profibus DP,Modbus TCP,Ethernet/IP,and can seamlessly integrate with DCS(distributed control system),SCADA systems,and remote terminal devices.

Outstanding anti-interference ability:

Compliant with the IEC 61000 series electromagnetic compatibility(EMC)standards,it has surge protection,electrical isolation,and interference suppression capabilities to ensure long-term stable operation of the module.

Multi functional input/output:

This module can be configured as digital input(DI),digital output(DO),analog input(AI),or analog output(AO)to achieve flexible connection of field devices.

HIMA 80105 984080105 Technical Specifications

Product model:HIMA 80105 984080105

Manufacturer:HIMA

Product Type:Safety Control Module

Functional safety level:SIL 3(IEC 61508)

Power supply voltage:24V DC

Power consumption:≤5W

Interface type:Front end plug-in connector

Communication protocols:Modbus TCP,Profibus DP,Ethernet/IP

Protection level:IP20

Installation method:19 inch standard rack

Working temperature:-20℃~+60℃

Relative humidity:5%~95%(non condensing)

EMC rating:IEC 61000 compatible

Supported platforms:HiMax,HiMatrix

application area

HIMA 80105 984080105 is suitable for industrial control system scenarios that require extremely high safety and reliability,especially in process industries where it plays a crucial role.

In the petrochemical industry,this module is commonly used in emergency shutdown systems(ESD)in refining units to achieve real-time control of critical valves and pressure switches;In natural gas pipeline compression stations,it is used for high-pressure protection and alarm systems to enhance operational safety;In thermal power plants,HIMA 80105 984080105 is responsible for the safety interlock function of boiler ignition and burner management system(BMS).

In addition,in production lines involving flammable and explosive media such as pharmaceuticals and food processing,this module operates in conjunction with a Fire and Gas Detection System(FGS)to ensure personnel safety and equipment integrity.The high-level functional safety and redundancy capability make it widely used in special scenarios such as military industry,aerospace,and traffic tunnel control.

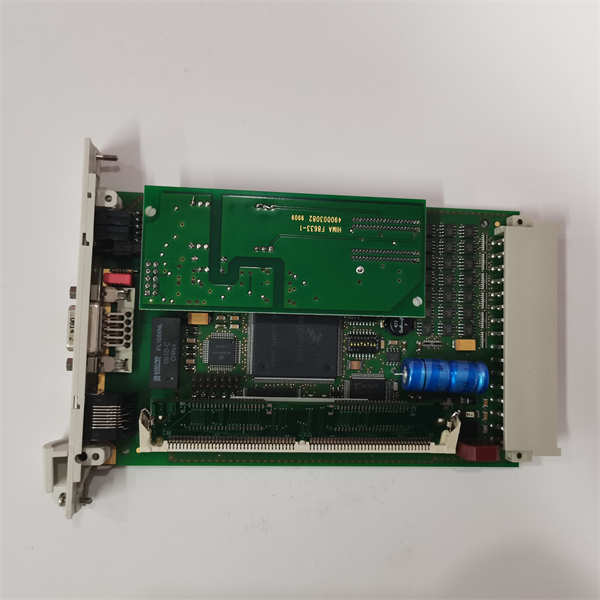

HIMA 80105 984080105

Related products

HIMA 80101 984080101:Basic input module of the same series,suitable for conventional I/O signal acquisition.

HIMA F8650X:High performance CPU processing module that can work in conjunction with 80105 984080105.

HIMA X8010:Compact digital output module,suitable for small automation scenarios.

HIMA F3236:A universal analog input module that supports redundant configuration.

HIMA 971306010:Original HIMA bus connection module,enhances system compatibility.

HIMA F7133:Fire and Gas Detection Module,suitable for use in conjunction with 80105 984080105.

HIMA F8621A:High speed logic processing module to improve system response speed.

HIMA X4105:A digital input module with SIL 3 certification for reliable signal acquisition.

HIMA F3417A:Control module with analog redundant output capability.

HIMA F8652:A powerful CPU redundant processing module for building high availability control systems.

Installation and maintenance

Preparation before installation:Before installing HIMA 80105 984080105,ensure that the cabinet has a good grounding system and reserve standard 19 inch rail space according to the installation instructions of the module.An EMC filter should be connected to the communication interface to avoid external signal interference with system operation.

Maintenance suggestion:HIMA 80105 984080105 supports hot swappable replacement for easy maintenance without shutting down the machine.Regularly check the stability of the connection between the module and the slot,pay attention to changes in environmental temperature and humidity,and prevent static electricity accumulation.If the module runs for a long time,parameter self-test should be performed in conjunction with the HIMA system software to ensure accurate recording of system diagnostic information.
