Description

The design philosophy of Valmet D202593 is “reliability, efficiency, and flexibility”. It adopts high-performance processors that can process large amounts of real-time data and complex control algorithms, ensuring precise control and optimization of the production process. As part of the Valmet DNA system, it can seamlessly integrate into the entire DCS architecture, supporting Distributed Control Architecture. This means that you can flexibly expand the system scale according to actual needs, achieving comprehensive automation from small-scale unit control to the entire factory. Moreover, it supports a wide range of DC power supply (10-32V DC), which enables it to operate stably in various industrial power environments. This Valmet D202593 is not just a controller, it is also a powerful tool for improving production efficiency, optimizing resource allocation, and ensuring production safety. Choose it, and you have made the right choice!

Valmet D202593 Technical Specifications

Product model: Valmet D202593

Manufacturer: Valmet

Product Type: ACN CS G2 PCLE Controller Module

Series: Valmet DNA (Distributed Control System)

Supply voltage: 10-32V DC (DC wide voltage input)

Communication interface: Dual 100 Mbit/s Ethernet, supporting star or ring topologies

Processor: High performance industrial grade processor

Memory: onboard non-volatile storage (specific capacity varies depending on version), supports removable SD card

Cooling method: Passively cooled design without moving parts

Protection level: IP20 (usually)

Working temperature: 0 ° C to 60 ° C (32 ° F to 140 ° F)

Storage temperature: -40 ° C to 85 ° C (-40 ° F to 185 ° F)

Relative humidity: 5% to 95% non condensing

Installation method: Rail mounted

Features: Redundant support, built-in access control, DoS detection

Main features and advantages

The Valmet D202593 controller module is able to stand out in the field of automation thanks to its several “hardcore” capabilities! Firstly, its biggest advantage is excellent control performance. Think about it, in industries such as papermaking and energy, many processes are high-speed and high-precision, requiring extremely high response speed and processing capabilities from controllers. The Valmet D202593 is equipped with a high-performance industrial grade processor that can achieve fast control cycles as low as 20 milliseconds, which means it can quickly capture on-site changes and accurately execute control instructions, ensuring the stability of the production process and product quality, and avoiding production losses caused by response delays.

Secondly, the high reliability and robustness attributes of Valmet D202593 are truly remarkable! It adopts a passive heat dissipation design (Fanless and Diskless Design) without fans or hard drives, which directly eliminates the hidden dangers of traditional mechanical component wear and greatly extends the service life of the module. Its industrial grade components and maintenance free design enable it to operate stably in harsh industrial environments for a long time, and also support one-to-one redundancy capability. In case of any module problems, another standing horse can take over, ensuring that the system does not disconnect and minimizing downtime.

Furthermore, the powerful connectivity and scalability of Valmet D202593 are also outstanding. It is equipped with dual Ethernet interfaces and supports star or ring redundant network topologies, enabling easy high-speed communication with other controllers, I/O modules, and upper computers in the Valmet DNA system. At the same time, it also supports various modern industrial fieldbuses such as PROFIBUS, PROFINET, Ethernet/IP, as well as standard communication links such as OPC DA and OPC UA, which allows it to seamlessly integrate into existing automation architectures or easily cope with future system upgrades. More importantly, its modular design and removable SD card function make software and parameter backup, recovery, and module replacement exceptionally simple and fast, greatly reducing maintenance difficulty and costs. This Valmet D202593 is not just a controller, it is a “multi-functional fighter” on your industrial production line, allowing you to go all out!

The Valmet D202593 controller module distinguishes itself in industrial automation primarily through its superior processing power and rapid control cycles. Engineered with a high-performance industrial-grade processor, it is capable of executing complex control algorithms and processing vast amounts of real-time data with control cycles as low as 20 milliseconds. This swift responsiveness is critical for maintaining precise control over dynamic industrial processes, such as those found in the paper, pulp, and energy sectors, thereby optimizing production efficiency and product quality by promptly adapting to process variations.

Another key strength of the Valmet D202593 lies in its exceptional reliability and robust design. It features a fanless, diskless architecture utilizing passive cooling, which eliminates moving parts and significantly reduces the risk of mechanical failures, leading to an extended operational lifespan. This maintenance-free design, coupled with industrial-grade components, ensures dependable performance even in harsh industrial environments characterized by wide temperature fluctuations, vibrations, and dust. Furthermore, its built-in one-to-one redundancy capability ensures maximum system availability by providing immediate failover in the event of a module malfunction, minimizing costly downtime.

Finally, the Valmet D202593 offers extensive connectivity and impressive scalability. Equipped with dual 100 Mbit/s Ethernet connections supporting star or ring topologies, it facilitates high-speed, redundant communication within the Valmet DNA Distributed Control System and beyond. It supports a wide array of modern fieldbuses and standard communication protocols, ensuring seamless integration with existing plant infrastructure and providing a flexible platform for future expansions and upgrades. The modular, rail-mounted design and the inclusion of a removable SD card for configuration and software storage further enhance its ease of installation, maintenance, and long-term adaptability,  making the Valmet D202593 a truly versatile and resilient automation solution.

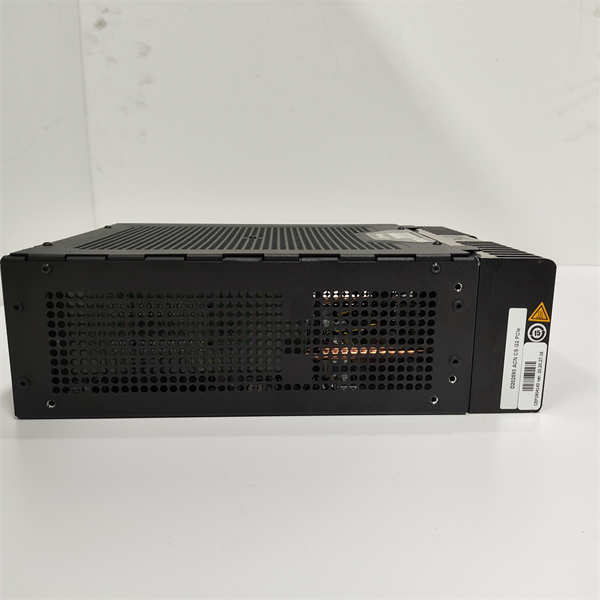

Valmet D202593

application area

The Valmet D202593 controller module has a wide range of applications, especially in the “core skills” industries that Valmet has deeply cultivated. Firstly, in the pulp and paper industry, the Valmet D202593 is the “commander” of the entire production line, from raw material processing, pulp and paper machine control to finished paper processing. It can accurately control key parameters such as pulp ratio, paper thickness, moisture, strength, etc., ensuring the continuity, stability, and high quality of paper production, minimizing waste rate, and improving production efficiency.

Secondly, in the field of energy and electricity production, whether it is traditional coal-fired power plants, biomass power generation, or combined heat and power (CHP) units, Valmet D202593 plays an important role. It is responsible for the combustion control of boilers, the start stop and load regulation of steam turbines, as well as the coordinated control of the entire power plant, ensuring efficient energy utilization and stable power output. In some critical combustion management systems (BMS) or boiler protection systems, it can ensure safe operation and avoid major accidents such as explosions.

Furthermore, in process industries such as petrochemicals and chemicals, Valmet D202593 can also provide powerful control capabilities. It can be used for temperature and pressure control of reaction vessels, component separation of distillation towers, flow control of pipeline pumps and valves, and other complex processes to ensure product quality meets standards while ensuring production safety. In addition, Valmet D202593 can also provide flexible and efficient automation solutions in some public utility fields such as water treatment and waste management, as well as in factory infrastructure management that requires high integration and reliable control. It can be said that Valmet D202593 is an ideal choice for any complex industrial process that requires reliable and high-performance distributed control!

Related products

As the controller module in the Valmet DNA system, Valmet D202593 typically works in conjunction with other hardware modules and software products in the Valmet DNA series to build a complete automation solution.

Valmet D202591/D202592: These may be controller modules of other models in the Valmet ACN CS series, which may have slight differences in processing power, I/O interfaces, or supported protocols compared to Valmet D202593, as different configurations or upgraded versions of the same series.

Valmet D202477/D202478: The I/O modules of the Valmet DNA series include analog input/output (AI/AO) and digital input/output (DI/DO) modules, which serve as the bridge between Valmet D202593 and field sensors and actuators.

Valmet D202512: The Ethernet switch module of Valmet DNA system is used to build and manage redundant communication networks between controllers, ensuring reliable data exchange of Valmet D202593.

Valmet DNA User Interface (UI) software: Operators monitor and operate the entire process controlled by Valmet D202593 through this software interface.

Valmet DNA Engineering Tool software: Engineers use this tool to configure, program, and diagnose all DNA hardware, including Valmet D202593.

Valmet DNAe: This is the new generation of distributed control system platform from Valmet, representing the latest development direction of Valmet automation technology. In the future, it may replace or be compatible with the old generation DNA system where Valmet D202593 is located.

Valmet DNA Fieldbus Modules: Various fieldbus modules, such as PROFIBUS, PROFINET, Ethernet/IP, etc., are used to connect Valmet D202593 to different field device networks.

Installation and maintenance

Preparation before installation: Before installing Valmet D202593, you must ensure that all prerequisites have been met. Firstly, confirm that the power supply voltage meets the 10-32V DC range required by the Valmet D202593 module, and that the power supply circuit is stable without significant fluctuations. Choose a suitable installation position for the guide rail, ensuring sufficient heat dissipation space around, avoiding direct sunlight and heat sources, as it adopts a fanless heat dissipation design, good air circulation is crucial. When handling the Valmet D202593 module, it is essential to wear anti-static wristbands or gloves and ensure that the workbench is grounded, as static electricity is the number one killer of electronic modules. Before installing into the cabinet or control box, check the appearance of the module for any physical damage, ensure that the connection ports are clean and free of foreign objects, and ensure that it can be smoothly inserted and firmly connected to the backplane.

Maintenance suggestion: Valmet D202593 module has a relatively small daily maintenance workload due to its sturdy design without fans and hard drives, but “regular inspections” and “preventive maintenance” are still key. Firstly, regularly check the status indicator lights on the module, which provide visual feedback on the operating status of Valmet D202593. If any abnormalities are found, immediately consult Valmet’s diagnostic manual or contact technical support. Although it is a fanless design, the accumulation of dust on the surface of the module can affect its heat dissipation effect. Therefore, it is necessary to regularly use a soft brush or vacuum cleaner to remove the dust on the surface to ensure that the module can effectively dissipate heat and extend its service life. At the same time, check the fixing of all connecting cables, especially Ethernet communication cables and power cables, to ensure that the connections are firm, not loose or worn, and to avoid communication interruptions or power problems caused by poor contact. The Valmet DNA system typically provides powerful online diagnostic capabilities, which should be fully utilized by regularly reviewing system logs and alarm information to detect and resolve potential faults in a timely manner before problems escalate, thereby maximizing the availability and system stability of Valmet D202593.
