Description

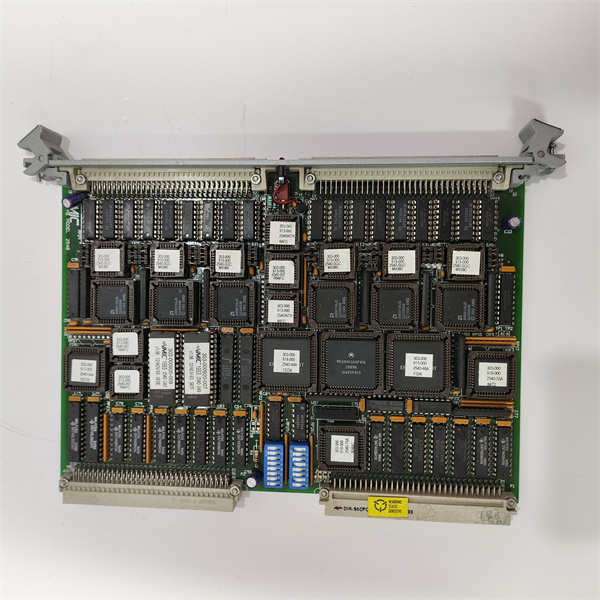

GE VMIVME2540 is a VMIC series digital input module launched by GE Fanuc, designed specifically for VMEbus architecture systems. This module provides 32 optoelectronic isolated digital input channels, each channel independently collects signal status, and has strong anti-interference ability. This model is widely used in aerospace, military, power automation, rail transportation, factory automation and other scenarios that require high real-time and stability.

Each channel supports independent state detection and indication functions, supports wide voltage inputs from 5V to 32V, and has built-in anti reverse protection. Due to the use of a standard VME 6U board structure, the VMIVME2540 can be easily inserted into a standard 19 inch chassis system, achieving modular expansion. Its interface electrical performance is stable and reliable for long-term operation, making it particularly suitable for collaboration with SCADA, PLC, or distributed control systems (DCS).

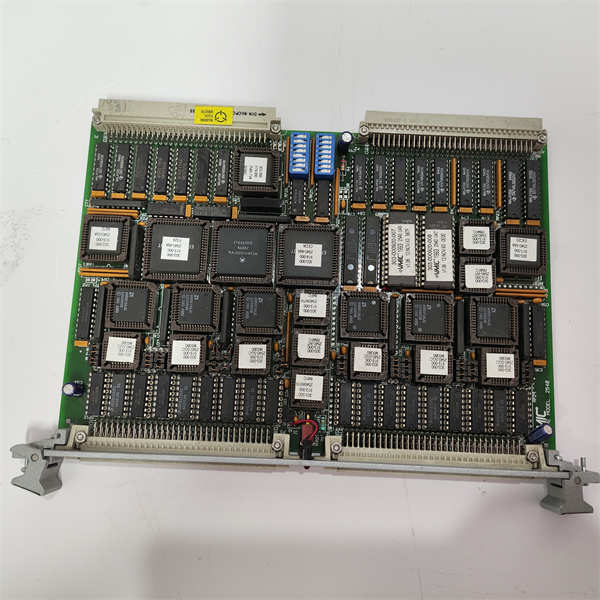

GE VMIVME2540

technical specifications

Product model: VMIVME2540

Manufacturer: GE (General Electric)

Product Type: Digital Input Module (D/I Module)

Bus standard: VMEbus (ANSI/IEEE 1014)

Number of input channels: 32 optoelectronic isolated inputs

Input voltage range: 5~32 VDC

Channel isolation voltage: 1500 Vrms (optocoupler isolation)

Input impedance: 2.2 k Ω (per channel)

Response time:<5ms><!--5ms-->

Status indication: Each channel is equipped with LED status indication

Structural dimensions: 6U high, standard VME board type

Installation method: Plug in board, fixed to the VME motherboard slot

Working temperature: -20 ° C~+60 ° C

Storage temperature: -40 ° C~+85 ° C

Certification standards: CE/RoHS/UL (some versions support military standards)

Main features and advantages

Industrial grade isolated input:

Each channel of GE VMIVME2540 adopts optocoupler isolation technology, effectively preventing misoperation caused by ground potential difference and electromagnetic interference. Suitable for heavy industrial environments with harsh electrical conditions.

Wide input voltage range supports:

The input range of 5-32VDC enables this module to be compatible with various sensors, switches, and remote signal devices, with extremely high adaptability.

Real time status indication function:

The front panel of the module is equipped with 32 independent status LEDs for easy on-site debugging and fault location. Without the need for upper computer software, the signal access status can be quickly determined.

Seamless integration of VME system:

VMIVME2540 is fully compatible with the VMEbus and supports multiple interrupt/query access modes. It has strong interoperability with VME controllers from manufacturers such as GE, ABB, and Schneider.

Modular hot swappable design:

It can be quickly replaced without stopping the machine, shorten the system maintenance cycle, and improve engineering availability. The fixed structure of the plug-in board is stable and durable.

Professional terminology explanation:

VMEbus (Versa Module Europa) is a modular backplane bus standard widely used in military and industrial automation control systems. D/I (Digital Input) is a digital input used to collect switch or dry contact signals. LED status indication is a visual display of channel signals, which is convenient for debugging and maintenance.

application area

GE VMIVME2540 can be widely deployed in industrial control fields that require high signal accuracy and input isolation, and is particularly suitable for the following systems and scenarios:

Rail transit signal system: collecting switch, block, and signal light status

Power plant DCS system: used for switch status acquisition, protection signal circuit monitoring

Military control system: used for high reliability scenarios such as radar, transmission devices, platform monitoring, etc

Manufacturing Automation: Discrete Input Acquisition for PLC or Robot Systems

Aviation testing platform: monitoring equipment status, input signal acquisition for flight control simulation testing system

Petrochemical plant interlocking system: collecting input points such as safety valves, liquid level switches, and access control linkage

Related product recommendations

VMIVME3122: GE’s 12 bit analog input module, compatible with the VMEbus system

VMIVME3113A: High precision analog output card, commonly used for controlling circuit output

VMIVME2536: Similar to a digital input module with interrupt function

VMIVME4100: Counting/Timing Module, commonly used for high-frequency acquisition or counting applications

VMIVME3301: 16 bit analog input module, suitable for industrial grade high-speed sampling

VMIVME7750: VME system dedicated single board computer, paired with 2540 for optimal performance

VMIVME4900: Communication interface module, supporting serial port and network function expansion

Installation and maintenance

Preparation before installation: Please ensure that the slot of GE VMIVME2540 corresponds to the position of the motherboard without any faults, and that the motherboard power supply is stable to avoid abnormal power on caused by power supply fluctuations. Please disconnect the main power supply before plugging or unplugging the module, or pay attention to ESD protection when using the hot plug function.

Maintenance suggestion: It is recommended to clean and remove dust once every quarter, and check if the LED status on the front panel is abnormal. If the signal does not light up or triggers incorrectly, please use a handheld signal tester to verify the input ports one by one. Conduct an annual comprehensive functional inspection to avoid erroneous data collection caused by aging components.
