Description

EMERSON 5X00106G02 is the Logic Control Module (LCM) in the Ovation DCS system, used to execute system logic instructions, status judgment, data processing, and control signal issuance. This module has high real-time response capability and is the “brain” in the Ovation system.

This module is commonly used to control complex processes such as boiler combustion in power plants, turbine control, deoxygenated water systems, etc., and has a direct impact on the safety and efficiency of system operation.

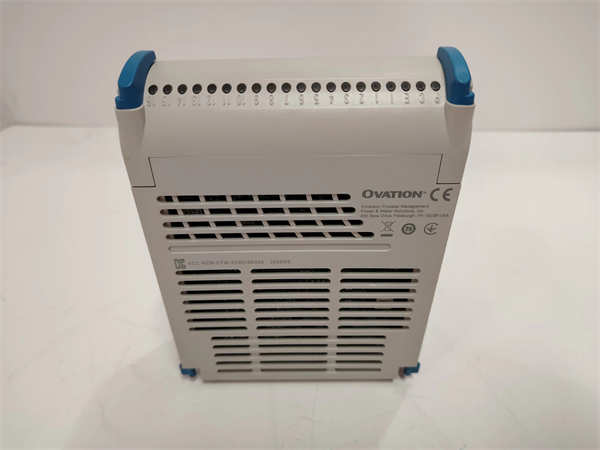

EMERSON 5X00106G02

?  Detailed Introduction

✅  Module Type

Product model: 5X00106G02

Product Name: Logic Control Module

Applicable system: EMERSON Ovation DCS

Structural form: Plug in module, supports hot plugging

✅  Functional Features

Real time execution of logical programs (logical chains)

Processing control tasks such as data collection, alarm, sequence control, interlocking, etc

Support system hot redundancy (running synchronously with backup modules)

Equipped with a dedicated processor (multi-core architecture)

Support board level diagnosis and online fault detection

The program is loaded by Ovation controller software (configured through Workstation)

⚙️  Technical specifications and parameters

CPU processor: dedicated embedded control chip

Communication Protocol: Ovation Network Protocol (ONP)

Interface type: Plug in backplane interface (connected to control bus)

Power input: Powered by the rack backplane, 24V DC

Installation method: card slot insertion type (rack mounted)

Size: Standard 6U Euro Card Size

Working temperature: 0-60 ℃ (industrial grade)

Memory: with Flash/EEPROM to store control logic

Redundancy support: Supports primary backup redundancy working mode

Compatibility module: compatible and interchangeable with 5X00106G01 and 5X00106G03

?  application area

This type of module is widely used in large and complex industrial systems, especially with extremely high visibility in the following areas:

?  Thermal power plant (main control system, deoxygenated water system, turbine control)

?  Petrochemical plant (reactor, tower kettle, cracking furnace automatic control)

?  Water treatment plant (dispensing, pump station automatic control)

?  Fine Chemicals/Food and Beverage (Formula Control, Automatic Measurement)

?️  Metallurgical system (furnace temperature/flow control)

?  Installation and maintenance recommendations

Before installation, it is necessary to confirm that the backplane power supply is normal and the grounding is good

The module is hot swappable, and the operation requires confirmation that the system is in a redundant state or in a shutdown window

After module installation, a self-test program should be run to check if the network status light is normal

Suggest using original software for parameter backup and program loading

It is recommended to regularly replace spare parts for modules that have been in operation for more than 5 years

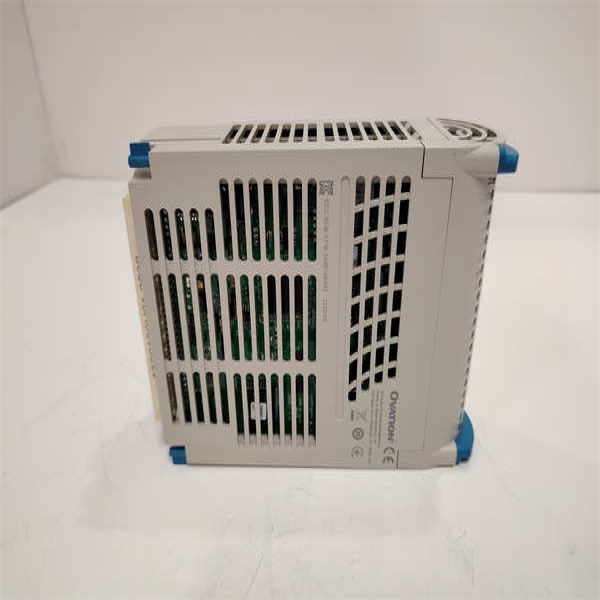

EMERSON 5X00106G02

?️  Product Assurance and Technical Services

We provide 100% original EMERSON 5X00106G02 control module, with supporting services including:

Authentic anti-counterfeiting label/serial number verification

Original packaging and traceable procurement records

Support system replacement and remote guidance for software import

Can provide installation and debugging services+supporting control strategy debugging solutions
