Description

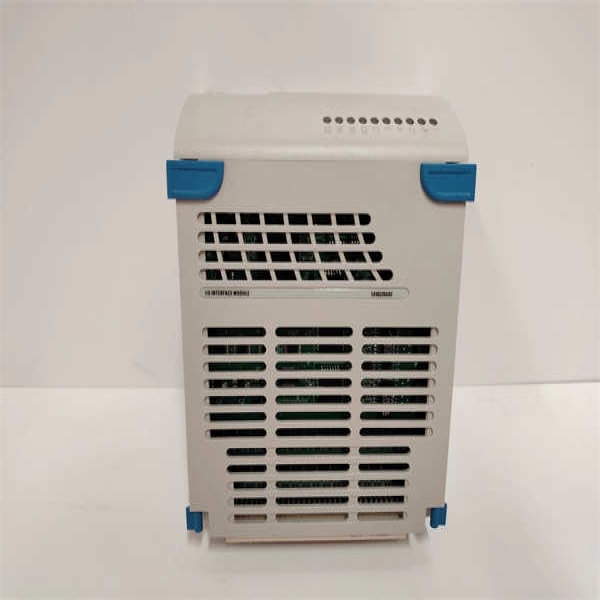

EMERSON 5X00226G02 is an I/O communication processing module designed specifically for Ovation DCS systems, used to achieve high-speed and stable data transmission between controllers and remote I/O stations. Communication speed: up to 100Mbps, protocol support: Ovation dedicated bus communication, operating temperature range: 0-60 ° C, it is the backbone of reliable transmission of industrial signals.

?  Product Details

5X00226G02 Product Overview

EMERSON 5X00226G02 is the core communication interface module in Ovation distributed control system, mainly used for managing data communication between controllers and underlying I/O modules. This module bears the responsibility of “connecting to the main control and to the site”, ensuring that control instructions and on-site feedback can be transmitted quickly and accurately in both directions. EMERSON 5X00226G02 plays an indispensable role in thermal power, chemical, metallurgical, and municipal water projects.

This module adopts a high-speed industrial bus architecture, supports real-time data refresh mechanism, has high anti-interference ability and on-site diagnostic function. By cooperating with the I/O station, it can significantly improve system response speed and communication stability, avoiding the loss of critical signals.

During system debugging, EMERSON 5X00226G02 can easily complete network configuration and device mapping through the Ovation tool platform, making it an “efficient and effective” communication hub component in the eyes of experienced engineers.

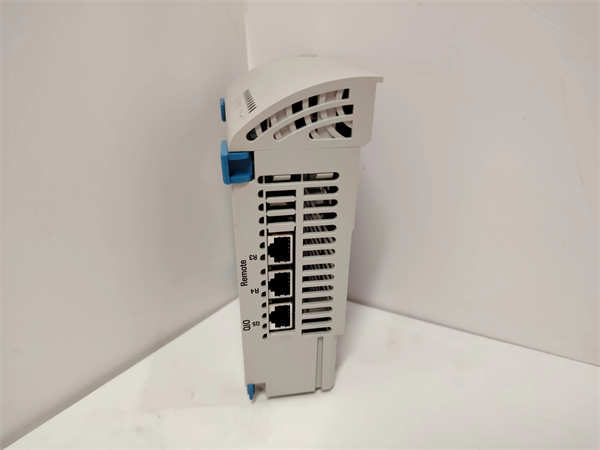

EMERSON 5X00226G02

⚙️  technical specifications

Product model: 5X00226G02

Manufacturer: Emerson

Product Type: I/O Communication Module (IOCM)

Communication protocol: Ovation specific industrial protocol

Interface method: Backplane high-speed plug-in type

Communication speed: up to 100 Mbps

Power supply voltage: uniformly powered by Ovation rack

Working temperature: 0 ° C~60 ° C

Storage environment: -20 ° C~+85 ° C

Installation method: Card slot hot swappable structure

Status indicator: LED light indicates communication/fault status

Support functions: redundant communication, online fault detection

?  Main features and advantages

High reliability data transmission:

EMERSON 5X00226G02 supports high-speed bidirectional data transmission mechanism, ensuring millisecond level response between Ovation control system and underlying I/O data. Equipped with CRC check and interrupt response mechanism to improve communication accuracy and real-time performance.

Support system redundancy structure:

This module can form a redundant hot backup structure with the backup communication module, seamlessly switching to the backup module when the main module fails, improving system reliability.

Intelligent self diagnosis:

Built in fault detection mechanism and LED status indication facilitate quick on-site problem location and reduce downtime.

Strong on-site adaptability:

EMERSON 5X00226G02 uses industrial grade electronic components that can adapt to changing on-site environments such as dust, electromagnetic interference, and temperature and humidity fluctuations. The module has undergone EMI/EMC protection testing to ensure long-term stable operation.

Flexible compatibility configuration:

Fully compatible with Ovation’s multiple series of I/O modules (such as 1C311, 5X001, 1B300), suitable for upgrading and renovating old systems, reducing replacement costs.

?  application area

EMERSON 5X00226G02 is a critical data transmission node in various industrial systems, particularly suitable for the following scenarios:

Power plant boiler/turbine/electrical control (ensuring real-time interaction between I/O commands and status signals)

Petrochemical and Refining Systems (Remote I/O Communication with Explosive/High Temperature Zones)

Water and sewage treatment system (control of large-scale deployment of sensors/actuators)

Metallurgical/steel/coking plant area (strong anti-interference and high response speed requirements)

Port and municipal automation project (centralized dispatching communication of remote equipment)

In these industries, EMERSON 5X00226G02 is not only a communication bridge, but also a “safeguard” for stable system operation.

EMERSON 5X00226G02

?  Related products

5X00226G01: Same series old model, some parameters slightly lower

1C31125G02: Digital input module, connected to IO devices

5X00105G67: Ovation Controller Core Module

1B30023H01: Analog input/output module

5X00419G01: Power module, stable power supply to support the main control system

KJ3002X1-BB1: Alternative communication module for expanding subsystem communication

5X00489G01: Power distribution module, used for redundant power supply structure

1C31234G01: Analog Acquisition Expansion Board

5X00106G02: Main control logic module, data collaboration with this module

1C31113G01: Digital signal acquisition module, connected to switches/sensors and other devices
