Description

EMERSON 5X00419G02 is an analog output module (AO) designed specifically for Ovation DCS systems. Featuring high precision, support for multiple signal types (current/voltage), and strong anti-interference capabilities, it is suitable for various process control scenarios. Number of channels: 8 channels, output accuracy: ± 0.05% F.S., operating voltage: 24VDC system power supply. Industrial grade stable output, fully guaranteed from the source to the end.

?  Product Details

Module Overview

EMERSON 5X00419G02 is an Analog Output (AO) module used in Ovation distributed control systems. It is mainly responsible for converting the digital control commands of the controller into analog voltage or current signals, and outputting them to on-site terminal devices such as frequency converters, regulating valves, and actuators. It supports multiple output modes, including 0-20mA, 4-20mA, and 0-10V voltage output, with extremely high accuracy and linear stability.

This module is equipped with 8-channel isolated output, with independent short-circuit protection function for each channel. At the same time, through dedicated filtering and shielding processing, it can effectively suppress noise interference and ensure stable and reliable signal output in complex environments. Suitable for critical industrial process applications that require continuous control output and precise analog driving.

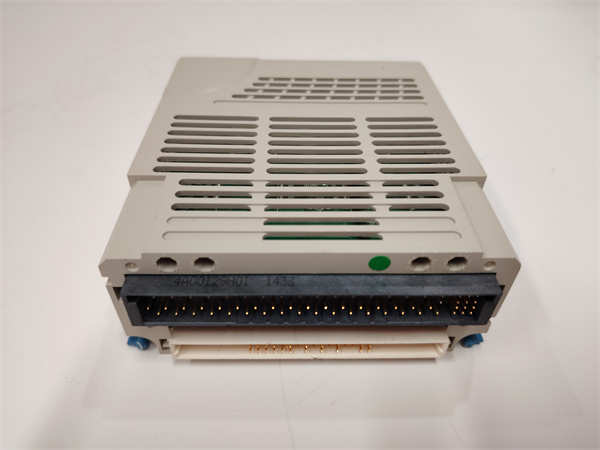

EMERSON 5X00419G02

⚙️  Technical specifications and parameters

Product model: 5X00419G02

Brand: EMERSON

System Platform: Ovation DCS

Module Type: Analog Output Module (AO)

Number of channels: 8 channels, independent isolation

Output range: 0-10V, 0-20mA, 4-20mA programmable selection

Output accuracy: ± 0.05% F.S

Output refresh rate: within 1ms per channel

Power supply voltage: The system provides a unified power supply of 24VDC

Working temperature: 0~60 ℃

Storage temperature: -20~85 ℃

Electrical isolation: Channel to channel and channel to system isolation

Status indicator light: Channel status LED (normal/abnormal)

Compatibility feature: Fully compatible with modules of the same series as G01 and G03

?  Main features and advantages

Precise output control:

EMERSON 5X00419G02 supports three analog output standards to meet different on-site requirements. Each channel is equipped with an independent precision DAC (Digital to Analog Converter), with output error controlled within ± 0.05% F.S., far exceeding the industry average level.

Redundant design support:

Support Redundant DCS configuration for Ovation DCS system, seamlessly integrating with redundant controllers, I/O communication modules, etc. to ensure high availability of the system. Equipped with an automatic switching mechanism, the backup module quickly takes over in case of main channel failure.

Strong anti-interference ability:

Each channel is equipped with built-in optoelectronic isolation and low-pass filters, which can effectively suppress electromagnetic interference (EMI) and radio frequency interference (RFI). It has passed the IEC61000 series anti-interference standard testing and is suitable for complex electromagnetic environments such as heavy factory areas.

Easy installation and maintenance:

The module adopts a backplane slot structure that supports hot swapping. Maintenance engineers can replace the module while the system is running, greatly improving operational efficiency.

Reliable short-circuit protection:

When the load of a certain channel is abnormal or short circuited, the module automatically cuts off the output and alarms through LED, and the system records the event without the need for manual restart or reset.

?  application area

EMERSON 5X00419G02 is widely used in various industrial applications that require precise output control of analog signals, especially in medium and large-scale systems involving process control

Valve positioning output in power plant turbine control system

Variable frequency drive control and flow regulation in the petrochemical and coal chemical industries

Pump group control in water treatment and urban water supply automation processes

Continuous control of process variables such as temperature and pressure in the food and pharmaceutical industry

Precision control of automatic injection, water cooling, and hydraulic systems in metallurgical mines

In these fields, 5X00419G02 plays the role of a “signal actuator”, ensuring precise transmission from logical control to physical operations.

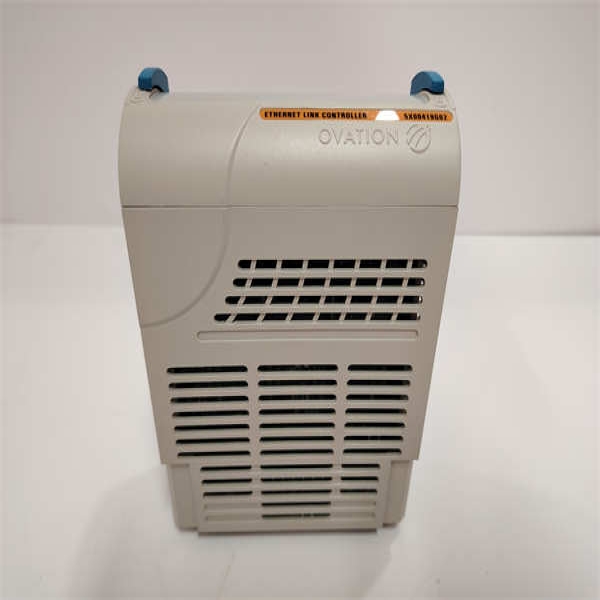

EMERSON 5X00419G02

?  Related product recommendations

5X00419G01: Early version, basic functionality, suitable for non redundant systems

5X00419G03: Subsequent models with enhanced diagnostic capabilities

1C31113G05: Analog Input Module (AI)

5X00106G02: Main controller module, supporting output control

5X00226G04: Communication interface module, data transmission core

KJ3001X1-BA1: DeltaV System Replacement Output Module
