EMERSON 5X00453G01 is a digital output module (DO) for Ovation DCS systems, supporting multi-channel dry contact or TTL signal output. It has the advantages of high output response speed, good isolation performance, strong anti-interference, and clear state feedback. Commonly used for controlling on-site equipment such as motor start stop, contactor drive, valve switch, etc.
? Product Details
Module Overview
The 5X00453G01 digital output module is the core component of Emerson Ovation system, designed to output the logic signals generated by the controller to external devices such as solenoid valves, relays, contactors, etc., to achieve direct driving of start stop, switching, alarm and other actions.
The module provides multiple independent channels (usually 16 points), each with overload protection, status detection, fault isolation, and other functions, which can operate stably for a long time in complex industrial electrical environments. Compared with other DO modules, 5X00453G01 exhibits superior response speed and channel anti-interference ability.

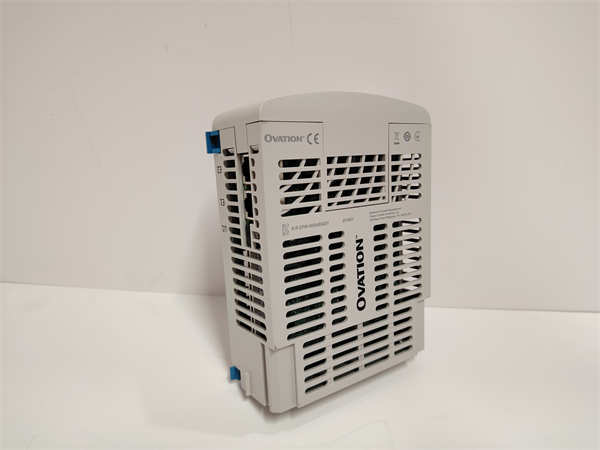

EMERSON 5X00453G01
⚙️ Technical specifications and parameters
Model: 5X00453G01
Brand: EMERSON
System Platform: Ovation DCS
Module type: Digital Output Module (DO)
Number of channels: 16 independent outputs (may support expansion)
Output voltage: typically 24VDC (open collector type)
Output current capability: 0.5A per channel (short-term up to 1A)
Output type: open collector or relay type
Isolation method: Channel to channel and channel to backplane are both isolated
Response time:<2ms>
Channel protection: overload protection, reverse connection protection, short circuit protection
Working temperature: 0 ℃~60 ℃
Installation method: Backboard slot type, supports hot swapping
Status indicator light: Each channel is equipped with LED to indicate the output status
? Characteristics and advantages
✅ Quick response and decisive execution
The response time of the 5X00453G01 module is less than 2ms, which can meet industrial control scenarios with high real-time requirements, such as emergency shutdown, interlock protection, alarm output, etc.
✅ High reliability, industrial strength design
Supports up to 24VDC/0.5A load output, channels with overcurrent protection, long service life, and low failure rate. Each channel is insulated to avoid crosstalk between channels.
✅ Easy installation and maintenance
The module adopts a standardized hot swappable structure, which is easy to install and does not require overall system shutdown during maintenance. Replacement and debugging are extremely convenient.
✅ Perfectly compatible with Ovation system
As a native supporting module, 5X00453G01 can be seamlessly integrated into Ovation’s I/O subsystem, supporting advanced functions such as redundant configuration, unified diagnosis, and real-time monitoring.
? application area
EMERSON 5X00453G01 is mainly used in Ovation control systems to control the start stop or status output of on-site equipment, and is suitable for the following situations:
Power plant unit switch control (such as boiler start stop, fan control, etc.)
Electromagnetic valve switching and contactor control in petrochemical plants
Automatic Control of Pumping Stations in Water Plants and Environmental Protection Projects
Process control in heavy industries such as metallurgy, electrolysis, and mining
Chain control of equipment in the pharmaceutical and food industries
Automatic alarm and remote switch control system

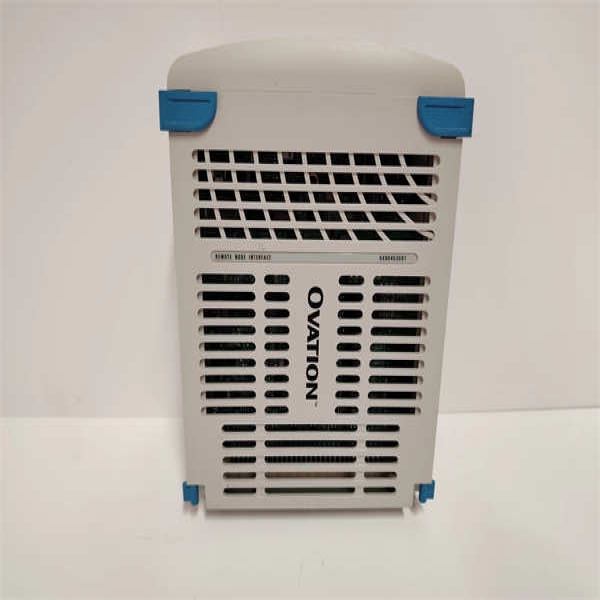

EMERSON 5X00453G01
? Related product recommendations
5X00453G02: Enhanced version of the same series, supporting more channels and redundancy
5X00419G02: Analog Output Module (AO)
5X00106G02: Controller Processing Module
5X00226G04: Communication/Interface Module
1C31113G05: Analog Input Module (AI)
KJ3221X1-BA1: DeltaV system compatible digital output module
? Installation and maintenance recommendations
Pre installation inspection: Confirm that the slot is clean and dust-free, the pins are not oxidized, and the backplane power supply is normal.
Hot plug operation: supports online replacement, but requires the corresponding channel to be “safely disabled” in the control system.
Status monitoring: Regularly observe the LED status of each channel, and promptly replace the module or check the load when the red light alarms.
Module maintenance cycle: It is recommended to perform a full channel functional verification every 2 years to ensure no performance degradation.
