Description

EMERSON 5X00846G01 is one of the most important “perception nerves” in the Ovation DCS system. In order for on-site instrument signals to be heard and understood by the system, it relies entirely on it to receive and convert them into digital signals. It has 8 independent channels, each supporting standard industrial analog signals such as 4-20mA or 1-5V.

After being converted by a high-precision 16 bit ADC (Analog to Digital Converter) within the module, the analog input is uniformly uploaded to the controller. This product not only has high precision and strong stability, but also has short-circuit protection, current overload detection, and channel isolation capabilities. Even in electromagnetic interference and harsh on-site environments, it can “keep its ears and heart intact”.

EMERSON 5X00846G01 is suitable for scenarios such as thermal power, hydropower, chemical, metallurgical, etc. that require strict process parameter acquisition, and is one of the irreplaceable main AI cards in the Ovation system.

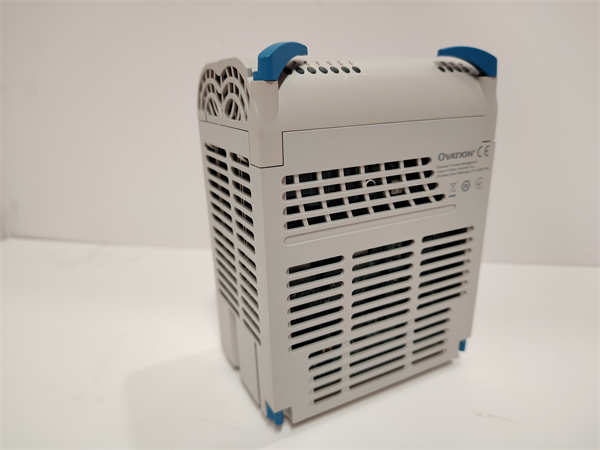

EMERSON 5X00846G01

⚙️  Technical specifications and parameters

Parameter Name Parameter Value

Product model 5X00846G01

Brand name Emerson

Product Type Analog Input Module (AI)

Number of channels: 8 channels (each channel is independent)

Signal type 4-20mA, 1-5V optional

Precision level 16 bit ADC

Power supply voltage 24V DC

Electrical isolation, photoelectric isolation for each channel

Channel protection overvoltage protection/short circuit protection

Response time ≤ 1ms

Installation method slot type, hot swappable support

Working temperature range 0~60 ° C

Storage temperature range -40~85 ° C

Indicator light displays the status LED of each channel

?  Main features and advantages

High precision analog acquisition:

The EMERSON 5X00846G01 is equipped with a high-resolution 16 bit ADC (Analog to Digital Converter), which can effectively collect various analog signals such as current and voltage. The sampling is stable with minimal error, ensuring that the process control system is “sharp and clear”.

Channel independent isolation design:

Each input channel is equipped with * * Optical Isolation * * function, which minimizes inter channel interference, improves system stability and fault resistance, and even if individual channels have problems, it will not drag down the entire card.

Strong anti-interference ability:

Support EMC electromagnetic compatibility design, with good on-site anti-interference performance, and can operate stably for a long time in complex electrical environments.

Plug and play, supports hot swapping:

Card replacement can be done without shutting down the system power supply, making installation and maintenance extremely convenient, greatly reducing system maintenance costs and downtime risks.

Complete self diagnostic function:

The module is equipped with * * Channel Self Test * * and status indicator lights, which can provide real-time feedback on operating status, fault information, communication interruptions, and other abnormalities, facilitating the system to quickly locate problems.

English Introduction:

The EMERSON 5X00846G01 is a high-performance Analog Input (AI) module designed for the Ovation distributed control system. Featuring 8 isolated input channels with 16-bit ADC resolution, it provides highly accurate and reliable acquisition of process variables like temperature, pressure, and flow. Built-in isolation, over-voltage protection, and robust EMC performance ensure long-term stability even in harsh industrial environments. With support for hot-swapping and channel-level diagnostics, the 5X00846G01 is a key component for dependable and efficient process monitoring.

?  application area

This EMERSON 5X00846G01 is mainly used to “stand guard and watch” for front-line signals. In any situation where precise acquisition of analog signals is required, it is a pillar:

Temperature, pressure, and main steam flow collection in thermal power plants

Process control of speed regulation system in hydropower station

Petrochemical refining process monitoring

Metallurgical and steel rolling furnace temperature/water pressure signal feedback acquisition

Intelligent municipal heating system data collection front-end

Temperature difference/liquid level/pH analog signal capture in fine chemical industry

?  Related product recommendations

Model Description

5X00419G02 Analog Output Module (AO), combined with this model for closed-loop control

5X00453G01 Digital Output Module (DO)

5X00226G02 communication interface module, connecting controller and IO distributed architecture

Early version of 1C31113G01 analog input module, suitable for old Ovation systems

5X00875G01 control processor motherboard, running main program at high speed

5X00790G01 communication processing module, used for data transmission channel management in the system

KJ3203X1-BA2 DeltaV system AI module, heterogeneous system signal integration solution optional

EMERSON 5X00846G01

?  Installation and maintenance

Preparation before installation:

Before installing EMERSON 5X00846G01, be sure to disconnect the power supply and ensure that the slot is clean and free of debris to avoid electrostatic damage. Confirm that the module pins are not deformed and the interface is clean, then smoothly insert them into the card slot and gently press to ensure good contact.

Maintenance suggestion:

In daily operation, the operation status of the module can be monitored through LED status lights, and any abnormalities can be identified and analyzed by combining with the host diagnostic system for localization. It is recommended to perform channel calibration and system integrity testing every 24 months. Hot swapping is supported when replacing modules, but it is still recommended to operate under non high load conditions.
