Description

The Triconex IMFF4703x is an I/O front-end isolation interface module specifically designed for Triconex safety control systems, responsible for introducing field signals into the system’s internal processing logic in a safe, stable, and anti-interference manner. It, together with the main processor module and I/O module, forms a triple redundant safety structure, which is widely used in core fields such as ESD (Emergency Shutdown System), FGS (Fire and Gas System), SIS (Safety Instrumented System), etc.

IMFF “stands for Input Module Front end Filter – Front end Input Filter Isolation Interface.

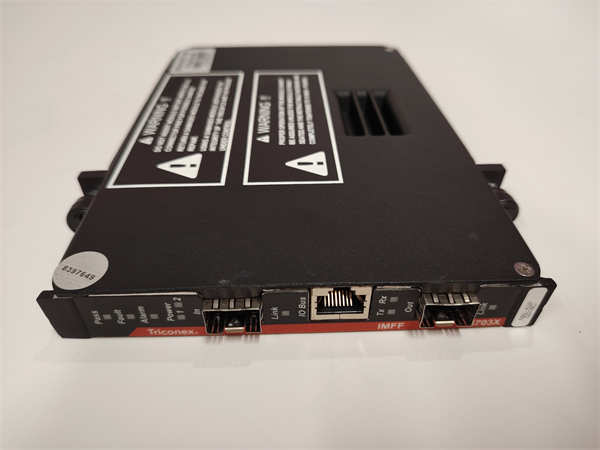

IMFF4703x Triconex

?  Product Details

✅  Model analysis

IMFF：Input Module Front-end Filter

4703x: serial number, x is the version number, such as A, B, C, etc

Functional positioning: Provide isolation protection, signal filtering, and front-end sampling interface for the main I/O module

Often used in conjunction with models 3700A/3706/3721

?  Technical specification parameters (typical)

Input type: Universal digital input (Dry Contact, 0/24VDC)

Isolation voltage level: ≥ 1500 VDC (isolation between channels and systems)

Number of channels: 16/32 channels (depending on version)

Filtering method: RC low-pass filtering+optocoupler isolation

Signal response time: ≤ 5ms (typical)

Working voltage: usually 24VDC ± 10%

Power consumption: 3W~5W (depending on configuration)

Installation method: Plug in DIN rail module, requiring a dedicated base

Working temperature: -20 ℃~+60 ℃ Industrial grade

Anti interference capability: compliant with IEC 61000 series standards

Compatible systems: Tricon v10. x/v11. x/v12. x and other full range platforms

?️  Core Features and Advantages

?  High reliability input signal preprocessing

Built in filtering, voltage limiting, and optocoupler isolation to eliminate “on-site noise” for the main system

?  Channel independent isolation to avoid interference and crosstalk

Each channel is equipped with an independent protection circuit to ensure the system’s anti-interference capability

?  Support hot plugging of redundant systems

The module supports replacement during operation to meet the security requirements of “online maintenance” for the Triconex system

?  Compatible with multiple industrial field signals

Suitable for various input forms such as dry contacts, NPN/PNP inputs, electromagnetic switches, photoelectric sensors, etc

?  Meets SIL 3 application requirements

The entire system meets safety standards such as IEC61508, ISA84.00.01, IEC61511, etc

?  Typical application scenarios

Petrochemical/Refinery Safety Interlocking System (ESD)

Natural Gas Pipeline Fire and Gas Detection System (FGS)

Safety Instrumented System (SIS) for Nuclear Power Plants

Protection and Control System for Thermal Power/Combined Cycle Power Plants

LNG Terminal Emergency Shutdown System

High reliability input monitoring system for hazardous chemical storage tank area

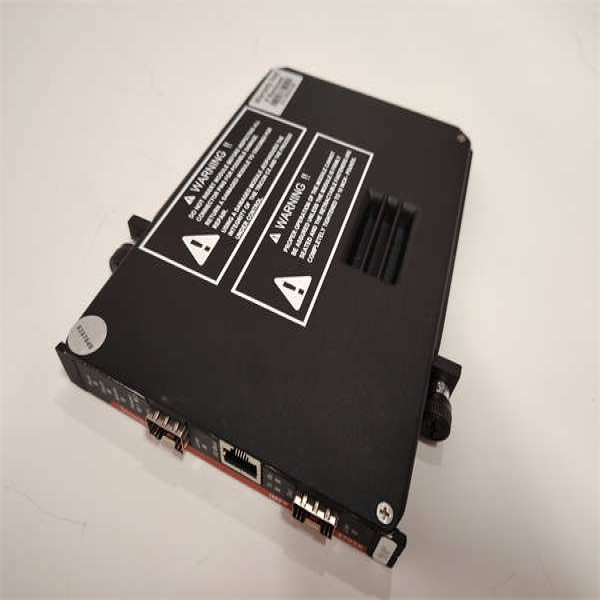

IMFF4703x Triconex

?  Recommended compatible modules

Tricon 3700A: Digital Input Module (32 points)

Tricon 3706: Analog Input Module

Tricon 3721: Universal Input Module

Tricon MP3001: Main Processor Module

Tricon B3000: Channel Base Plate

Tricon TCM 4351B: Communication Manager Module

?️  Installation and maintenance suggestions

The module needs to be inserted into the original Tricon motherboard slot and does not support mixed insertion or reverse insertion

It is recommended to use redundant power supply to improve system stability

Suggest pairing with EMI filtering power module to further enhance anti-interference capability

Confirm version before use (x-letter), different versions of A/B/C may correspond to different system algebras

When encountering a malfunction, it is recommended to first replace the slot, exchange the positioning problem module, and then proceed with the replacement process
