Description

EMERSON KJ3242X1-BK1 12P4711X042 is a widely used dual channel discrete input module in DeltaV systems, used to receive the switch status of field devices such as switches, relays, etc. Channel count: 32 points, voltage level: 24V DC, redundancy support: available, with high isolation and anti-interference ability, ensuring stable operation of the control system. Industrial use requires stability, accuracy, and ruthlessness!

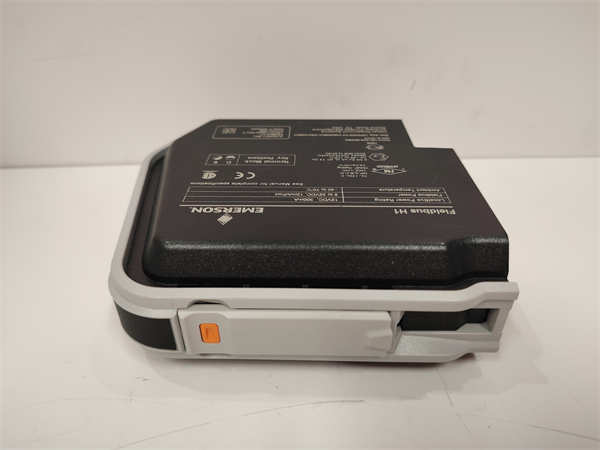

Emerson KJ3242X1-BK1 12P4711X04

?  Product Details

EMERSON KJ3242X1-BK1 12P4711X042 is one of the indispensable modules in the DeltaV control system architecture, belonging to a typical 32 channel digital input card (DI Card). The function of this type of module is simple, direct, but crucial – it receives switch signals from various devices on site and transmits the “presence/absence” status changes to the control system core. Functions such as valve position indication, switch action, and alarm triggering, without them, the system is like a blind man slacking off.

It supports high-density wiring, with 32 points per module, which can greatly save cabinet space. And it also supports hot swapping and redundant configuration, allowing the system to replace or switch modules without shutting down, without delaying production.

In addition, EMERSON KJ3242X1-BK1 has channel independent diagnostic function, which can detect and report abnormal states such as input status, wire breakage, short circuit, etc., truly achieving “letting you know in advance where the fault is”.

?  Technical specifications and parameters

Product model: KJ3242X1-BK1 12P4711X042

Manufacturer: Emerson

Product Type: Digital Input Module (DI)

Number of channels: 32 points

Input type: dry contact/active input (24V DC)

Channel isolation: Each channel is isolated independently

Communication interface: DeltaV dedicated control bus

Redundancy support: Supports (paired with Redundancy I/O)

Module diagnosis supports detection of channel status, wire breakage, etc

The power requirement is to be supplied by the I/O motherboard, 12V or 24V DC (internal to the system)

Working temperature range -40 ℃~+70 ℃

Installation method slot type (card in DeltaV I/O rack)

?  Main features and advantages

Hot swappable design

EMERSON KJ3242X1-BK1 can be directly plugged in and out without power outage or system shutdown, reducing maintenance time and improving system availability.

High density input channel

32 channel input, each channel processed independently. Space saving and cost-effectiveness are very popular structures in DCS systems.

Input channel isolation

Each input channel has independent galvanic isolation to prevent signal interference from crossing and ensure system data stability.

Module self diagnostic function

Capable of self checking for channel open circuit, short circuit, and abnormal signals, providing real-time diagnosis and timely alarm.

Redundant architecture compatible

Support DeltaV system redundancy architecture design, high safety level, suitable for critical control circuits.

Explanation of Professional Terminology

Redundant Architecture: In the control system, dual hardware paths are configured. When the primary path fails, the system will automatically switch to the backup path to ensure continuous operation.

Discrete Input (DI): An input type used to receive switch status signals, typically such as “on-off” and “presence absence”.

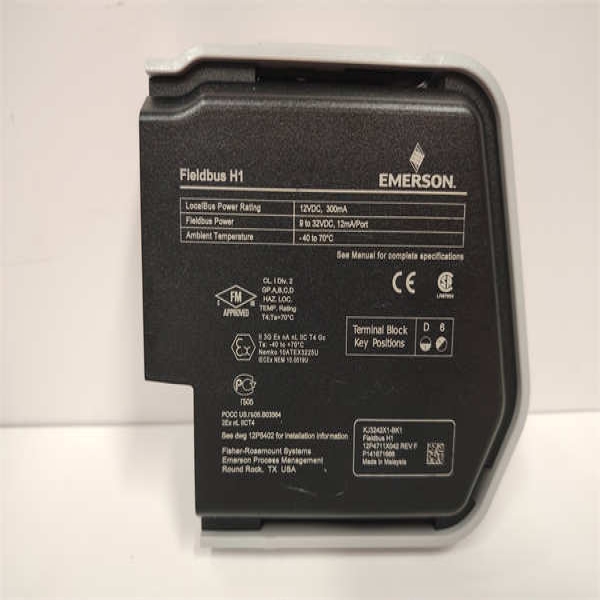

Emerson KJ3242X1-BK1 12P4711X04

?  application area

The EMERSON KJ3242X1-BK1 has a very wide range of applications and can be used in all industrial settings that require switch status acquisition. Typical industries include:

Power automation: such as switch status monitoring, circuit breaker remote signaling

Petrochemical industry: pump status feedback, valve position acquisition, interlock signal acquisition

Cement building materials: equipment start stop feedback, kiln protection system

Pharmaceutical and Food: Clean Area Status Collection and Alarm Circuit Connection

Metallurgical Steel: Continuous Casting Machine Switch Signal Collection, Cooling System Feedback

Environmental water treatment: remote switch transmission, flow switch monitoring, etc

?  Related product recommendations

KJ3204X1-BA1: Analog input module, supporting thermocouples

KJ3221X1-BA1: Analog output module with diagnostic function

KJ3001X1-BB1: DeltaV System I/O Controller Module

VE4002S1T2B4: Redundant power module

KJ4010X1-BG1: DeltaV Redundant Communication Card

5X00419G01: DeltaV base plate, compatible with KJ series modules

VE4001S2T2B4: Redundant Input Card Rack Base Plate

12P3368X012: Module connection backplane, system expansion interface usage

?️  Installation and maintenance

Preparation before installation: Before installing EMERSON KJ3242X1-BK1, it is necessary to confirm that the rack power is turned off to avoid busbar sparks caused by hot plugging. When inserting the module, it is necessary to ensure that the positioning pin corresponds correctly to the base plate. After gently pressing it into place, hearing a “click” indicates that it is in place.

Maintenance suggestion: Regularly check the status of the module LED indicator light. If there is a red light or it does not light up, use the DeltaV diagnostic tool to read the error code. It is recommended to use an insulation brush to clean the dust in the slot area during each inspection to prevent poor contact. Suggest replacing with original redundant modules to maintain system consistency and stability.
