Description

The product you’re asking about is the WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000, with the associated Woodward Part Number 3522-1004. This is an EM-Driver specifically designed for Woodward EM-80 and EM-300 All-Electric Actuators.

Product Description: WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 (3522-1004) EM-Driver for EM-80/EM-300 Actuators

This highly specialized unit is an all-electric servo drive (or EM-Driver) that forms the intelligent control element for Woodward’s EM-80 and EM-300 series of all-electric actuators. These actuators are precision positioning devices crucial for controlling critical components in large industrial machinery, primarily:

• Turbines (Gas and Steam):For precise manipulation of fuel valves, inlet guide vanes, or other control surfaces that modulate power or ensure efficient operation.
• Industrial Engines (Diesel, Gas, Gasoline):Used for accurate control of fuel racks, variable geometry turbochargers, engine timing, or other elements that optimize performance and emissions.

The EM-Driver (Woodward P/N 3522-1004), while carrying a long Baumüller part number (BUM60-…), represents a core component within Woodward’s all-electric actuation system. It replaces traditional hydraulic or pneumatic systems, offering a cleaner, more efficient, and highly accurate solution. It precisely controls the actuator’s output shaft rotation (typically 40 degrees) using a three-phase brushless AC motor and a high-precision planetary reduction gearbox. The EM-Driver receives position commands from a main control system (like a Woodward NetCon or MicroNet controller) and executes them with high speed, accuracy, and repeatability. Setup and diagnostics are performed via dedicated PC-based software.

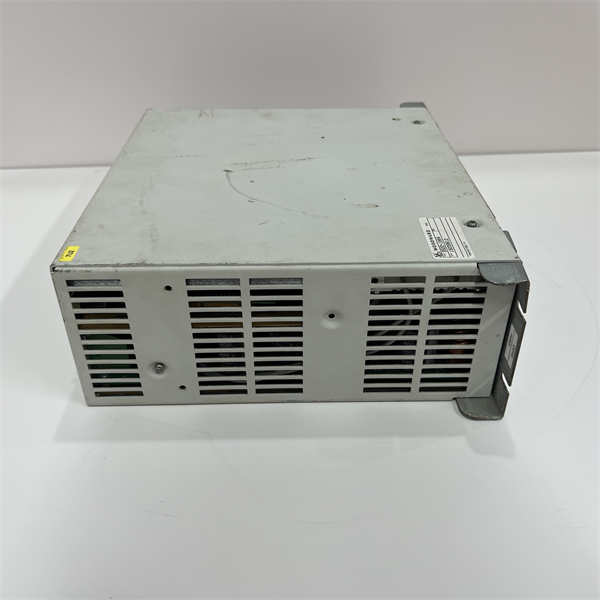

WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 3522-1004

Application Scenarios:

Consider an industrial power plant utilizing a large gas turbine for base-load power generation. The plant prioritizes high efficiency, low emissions, and minimal maintenance. Traditional hydraulic fuel valve actuators, while effective, require regular oil changes, filter replacements, and are susceptible to leaks, all contributing to increased operational costs and environmental concerns.

The plant decides to upgrade its fuel valve actuation system to an all-electric solution using Woodward’s EM-80/EM-300 actuators driven by the WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 (3522-1004) EM-Driver.

• Fuel Valve Precision Control:The EM-Driver receives a precise fuel valve position command from the turbine’s main control system. It then accurately and rapidly moves the EM-actuator to the commanded position, ensuring optimal fuel delivery for desired power output and combustion efficiency.
• Load Following & Stability:During rapid load changes on the grid, the fast response and high accuracy of the all-electric system allow the turbine to quickly adjust fuel flow, maintaining grid stability and preventing frequency excursions.
• Reduced Maintenance:By eliminating the hydraulic power unit, oil lines, and associated components, the plant significantly reduces maintenance requirements, decreases the risk of oil leaks, and eliminates the disposal of hydraulic fluid.

This implementation leads to:

• Improved Fuel Efficiency:Precise control enables the turbine to operate closer to its optimal performance curve, saving fuel.
• Enhanced Environmental Compliance:Lower risk of leaks and potentially better combustion (depending on system tuning) contribute to reduced emissions.
• Higher Reliability & Uptime:Fewer components mean fewer points of failure, leading to increased operational reliability and reduced unplanned downtime.

Parameter:

Due to the long, specific part number, certain parameters are highly detailed. However, based on the known characteristics of Woodward’s EM-Driver line and Baumüller BUM60 drives:

Technical Principles and Innovative Values:

The WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 (3522-1004) EM-Driver is a testament to cutting-edge industrial control technology, offering significant advancements:

• Innovation Point 1: Integrated High-Performance Servo Control for Actuation: This unit combines a sophisticated servo drive (based on the Baumüller BUM60 series) with Woodward’s application-specific knowledge. It precisely controls the brushless AC motor within the EM-actuator, delivering superior dynamic response, accuracy, and repeatability compared to traditional hydraulic or mechanical linkages. The integrated closed-loop control ensures the actuator reaches and holds the commanded position with micro-degree precision, crucial for optimizing combustion, emissions, and speed control in demanding applications.
• Innovation Point 2: All-Electric Design for Enhanced Reliability and Reduced Maintenance: The transition to an all-electric actuation system eliminates the complexities and common failure points associated with hydraulic systems (pumps, valves, hoses, filters, and oil contamination/leaks). This dramatically reduces maintenance intervals, operational costs, and environmental impact. The robust electrical and mechanical design of the integrated EM-Driver and actuator offers inherently higher reliability and a longer operational lifespan in harsh industrial environments.
• Innovation Point 3: Flexible Configuration and Advanced Diagnostics: The EM-Driver is designed to be highly configurable via PC-based software. This allows operators and engineers to fine-tune the actuator’s response characteristics (e.g., speed, acceleration, and damping) to match specific engine or turbine requirements without hardware modifications. Furthermore, the extensive diagnostic capabilities, accessible through the software, provide real-time performance data and error logging, enabling proactive maintenance, rapid troubleshooting, and detailed post-event analysis to maximize asset uptime.

Application Cases and Industry Value:

A large-scale power generation utility operating a fleet of aero-derivative gas turbines faced challenges with precise power output control and frequent maintenance on their hydraulic fuel valve actuators. Achieving stable grid frequency response during load swings was difficult, and hydraulic leaks posed environmental and safety concerns.

The utility decided to standardize on Woodward’s all-electric actuation system, installing the WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 (3522-1004) EM-Drivers with EM-300 actuators on their turbines. This strategic upgrade delivered significant benefits:

• Improved Grid Stability and Frequency Response:The exceptional precision and speed of the all-electric fuel valve control enabled the turbines to respond almost instantaneously to grid demand changes. This resulted in tighter frequency regulation and enhanced grid stability, reducing the need for costly grid-stabilizing ancillary services.
• Reduced Operational Costs and Environmental Footprint:The elimination of hydraulic systems led to a substantial reduction in maintenance man-hours (estimated 20% savings annually), decreased consumption and disposal costs of hydraulic fluids, and a lower environmental impact due to the absence of potential leaks.
• Enhanced Diagnostics and Predictive Maintenance:The detailed diagnostic data provided by the EM-Driver allowed the utility to monitor the health of the actuators in real-time, enabling highly accurate predictive maintenance scheduling. This prevented several potential unplanned outages by addressing issues before they escalated, saving millions in lost generation revenue.

This adoption showcased the EM-Driver’s ability to drive both operational excellence and environmental stewardship for critical energy infrastructure.

WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 3522-1004

Related Product Combination Solutions:

The WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 (3522-1004) EM-Driver is part of an integrated control solution and is always used in conjunction with:

• Woodward EM-80 or EM-300 All-Electric Actuators:These are the mechanical devices that the EM-Driver directly powers and controls.
• Woodward Main Control Systems (e.g., NetCon, MicroNet, Peak150, Flex500, 505E):These higher-level controllers send the primary position setpoints to the EM-Driver and manage overall engine/turbine operation.
• Engine/Turbine Sensors:Speed sensors (magnetic pickups), pressure transducers, temperature sensors, and other inputs providing feedback to the main controller, which then informs the EM-Driver’s commands.
• Industrial Power Supply:A robust 3-phase AC power source (400-480 VAC) to power the EM-Driver.
• PC with Woodward’s EM-Driver Software:Essential for initial configuration, parameter tuning, calibration, and comprehensive diagnostics.
• Industrial Control Cabinet:To house the EM-Driver, main controller, power supplies, and other electrical components, providing environmental protection.
• Human Machine Interface (HMI) / SCADA System:For operator interaction, monitoring system status, and viewing alarms related to the actuation system.

Installation, Maintenance, and Full-Cycle Support:

The installation of the WOODWARD BUM60-1224-54-B-001-VC-A0-0093-0013-G003-000 (3522-1004) EM-Driver involves mounting it securely within a designated control cabinet. Electrical connections include the 3-phase AC power input, the motor power output to the EM-actuator, and communication wiring to the main Woodward controller. Precise cabling and grounding are critical for optimal performance in electrically noisy industrial environments. Configuration and commissioning are performed using Woodward’s specialized PC-based software tools, allowing for tuning the actuator’s response characteristics (e.g., speed, acceleration, damping) to the specific engine/turbine dynamics.

Routine maintenance for the EM-Driver is minimal. Being a solid-state electronic device, it has no moving parts that require lubrication or mechanical adjustment. Maintenance primarily involves periodic visual inspections for secure connections, cleanliness, and ensuring the control cabinet’s environmental conditions (temperature, humidity) are maintained. The EM-Driver’s comprehensive self-diagnostic capabilities provide real-time health monitoring and error codes, significantly simplifying troubleshooting. The modular design of the unit allows for relatively quick replacement by trained personnel in the rare event of a failure, minimizing downtime for the critical prime mover.

Woodward, as a global leader in energy control solutions, provides extensive full-cycle support for its products, including the EM-Driver system:

• Comprehensive Documentation:Detailed installation, operation, programming, and troubleshooting manuals.
• Dedicated Software Tools:Essential PC applications for configuration, tuning, calibration, and diagnostics.
• Global Technical Support:A worldwide network of highly experienced engineers available for remote assistance, field service, and expert consultation.
• Specialized Training Programs:Courses designed for customer engineers and technicians on the operation, maintenance, and optimization of Woodward control systems.
• Spare Parts & Repair Services:Ensuring long-term availability of genuine replacement parts and comprehensive repair capabilities to maximize the operational life of the equipment.
