Description

The Rockwell SA3100-R030-AX-L6R (with the associated part identifier T491498R0) refers to a specific configuration of a Rockwell Automation (formerly Reliance Electric) SA3100 Distributed Power Driver Module.

The SA3100 series represents an older generation of Rockwell Automation’s DC motor drives, specifically designed for Distributed Power Systems. This means the power conversion (rectification and inversion) and control components are often modular and distributed throughout a machine or system rather than being housed in a single, large drive cabinet.

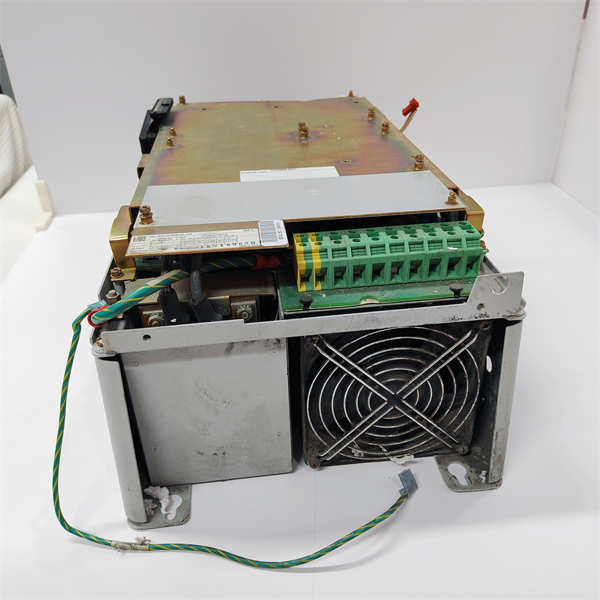

Product Description: Rockwell SA3100-R030-AX-L6R (T491498R0) Distributed Power Driver Module

The Rockwell SA3100-R030-AX-L6R (with T491498R0 as a common identifier for this specific variant) is a DC drive module within the SA3100 Distributed Power System. This module is responsible for controlling the speed and torque of a DC motor by regulating the armature voltage and current.

Key characteristics and likely features of this module include:

• DC Motor Control: Its primary function is to precisely control DC motors, which are widely used in applications requiring high torque at low speeds, or where precise speed regulation is critical.
• Distributed Power System Architecture: As part of the SA3100 family, it’s designed to integrate into systems where the drive components might be physically separated, reducing wiring complexity and cabinet space requirements for multi-axis or complex machines.
• Regenerative Capability: The “R030” in the part number often indicates a regenerative drive, meaning it can not only supply power to the motor but also absorb power from the motor when it’s decelerating or acting as a generator (e.g., during braking), returning energy to the AC line. This is particularly useful in applications with frequent stops/starts or overhauling loads.
• Analog/Digital Control Interfaces: It would typically interface with a higher-level controller (e.g., a PLC or dedicated motion controller) via analog signals (e.g., 0-10V for speed reference) or digital communication protocols.
• Protection Features: Like all industrial drives, it would include essential protection features such as overcurrent, overvoltage, undervoltage, and overtemperature protection to safeguard both the drive and the connected motor.
• Modular Design: Being part of a “distributed” system, these modules are designed for easy installation and replacement within a larger electrical enclosure.

The “R030” likely refers to a specific rating or regenerative capability, while “AX-L6R” might indicate specific features, control options, or a version/revision. The “T491498R0” is a manufacturing or internal part number specific to this configuration.

Application Scenarios:

The Rockwell SA3100-R030-AX-L6R would have been commonly used in various heavy industrial applications requiring precise control of DC motors, especially where the benefits of a distributed drive system were advantageous.

Consider an older paper mill where precise control of the paper web tension and speed is critical across multiple sections of the paper machine. Each section uses large DC motors.

• Multi-Section Paper Machine Control: Multiple SA3100-R030-AX-L6R modules would be installed, each controlling a DC motor on a different section of the paper machine (e.g., wet end, press section, dryer section, calender, reel). The regenerative capability (R030) would be crucial for managing tension as the paper moves through the machine, allowing motors to act as brakes and regenerate energy when needed.
• Printing Presses: In large industrial printing presses, DC drives are used for precise web handling and registration. The SA3100 could control different rollers or print cylinders, ensuring accurate alignment and consistent print quality.
• Metal Processing (e.g., Wire Drawing, Slitters): Applications requiring precise tension control, accurate speed regulation, and frequent acceleration/deceleration benefit from regenerative DC drives. The SA3100 could manage various rolls or take-up reels.
• Crane and Hoist Systems: For applications where loads need to be precisely controlled, lifted, and lowered, and where regenerative braking can efficiently dissipate energy, the SA3100 would be suitable for controlling hoist motors.

In these scenarios, the SA3100-R030-AX-L6R provides the necessary power and control for the DC motors, contributing to improved process efficiency, product quality, and energy management due to its regenerative capabilities.

Technical Principles and Innovative Values:

The Rockwell SA3100-R030-AX-L6R represents the technical principles and innovations prevalent in DC drive technology during its era, particularly for distributed applications:

• Innovation Point 1: Precise Closed-Loop DC Motor Control: The SA3100 series leverages advanced closed-loop control algorithms to precisely regulate DC motor speed and torque. This involves continuously monitoring motor feedback (e.g., from a tachometer or encoder) and adjusting the armature voltage and current via sophisticated power electronics (SCRs or power transistors for later variants). This precise control is critical for applications demanding high accuracy, rapid acceleration/deceleration, and stable operation across varying loads, such as in web handling, material processing, and machine tool control.
• Innovation Point 2: Regenerative Braking for Energy Efficiency and Performance: The “R030” in the part number signifies its regenerative capability. This is a significant innovation that allows the drive to convert the kinetic energy of the decelerating motor back into electrical energy, which is then fed back into the AC power line. This not only saves energy(by avoiding the waste heat of dynamic braking resistors) but also provides superior braking performance and precise control during deceleration, critical for fast stop/start cycles and overhauling loads, enhancing both productivity and safety.
• Innovation Point 3: Modular and Distributed Architecture: The “Distributed Power Driver Module” concept was innovative for its time, allowing drive components to be placed closer to the motors they control rather than consolidating all power electronics in a single, large control cabinet. This modularity reduces wiring complexity, saves space, and simplifies maintenance by making individual components more accessible. It also facilitates easier scalability for multi-axis machines, where each axis might have its dedicated power module, contributing to more efficient machine design and construction.
