Description

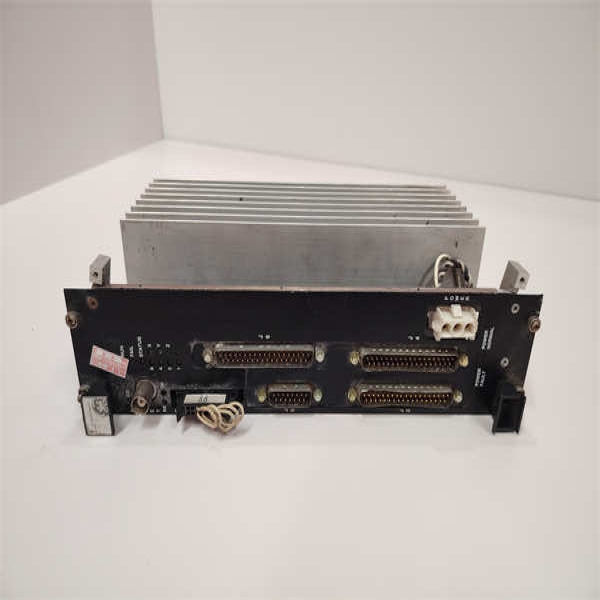

The GE VPROH2B IS215VPROH2BC refers to a critical Turbine Protection Board or VPRO card within GE’s renowned Mark VI series of turbine control systems. Specifically, IS215VPROH2BC is the part number for this highly specialized printed circuit board, which plays a pivotal role in ensuring the safety and operational integrity of industrial turbines.

Product Description:

The GE VPROH2B IS215VPROH2BC is a highly specialized Turbine Protection Board (VPRO), a vital component of General Electric’s robust Mark VI series turbine control systems. Designed to be an independent safety layer, this module provides emergency overspeed protection and critical trip functions, safeguarding high-value turbine assets against potentially catastrophic failures by acting as the input/output processor for associated terminal boards.

Application Scenarios:

Consider a large combined-cycle power plant, where multiple gas and steam turbines operate continuously to meet fluctuating energy demands. The integrity of these turbines is paramount, as an uncontrolled overspeed event could lead to severe mechanical damage, significant financial losses, and even a major safety incident. The plant relies on the GE VPROH2B IS215VPROH2BC as the heart of its Emergency Trip System (ETS). Housed within a dedicated, physically separate protection module, these boards (often in a triple redundant configuration) continuously monitor turbine speed and other critical parameters. Should an overspeed condition arise, the GE VPROH2B IS215VPROH2BC swiftly activates trip solenoids via its associated terminal boards, initiating an immediate and controlled shutdown of the turbine, cutting off fuel, and closing critical valves. This crucial, independent layer of protection ensures that even if the primary control system experiences an anomaly, the turbine’s safety mechanism remains fully operational, protecting the machinery, plant personnel, and production continuity.

Parameter:

Export to Sheets

Technical Principles and Innovative Values:

The GE VPROH2B IS215VPROH2BC leverages sophisticated technical principles to deliver unparalleled safety and reliability in turbine operations, standing out with its innovative features:

• Innovation Point 1: Independent Triple Modular Redundant (TMR) Architecture for Ultimate Safety: The most significant innovation of the GE VPROH2B IS215VPROH2BClies in its design for Triple Modular Redundancy (TMR). In a TMR setup, three completely separate and independent VPROH2BC boards (often designated R8, S8, T8) monitor the turbine simultaneously. This architecture ensures that even if one board or its associated sensors fail, the other two can maintain the protection function through voting logic (e.g., 2-out-of-3 voting). This eliminates single points of failure, vastly increasing system availability and preventing false trips, which is critical for continuous and safe operation of high-speed, high-energy turbomachinery where safety is paramount.

• Innovation Point 2: Rapid and Reliable Emergency Trip Capability with Dedicated I/O: The GE VPROH2B IS215VPROH2BCis designed specifically as an emergency trip processor. It directly controls the trip solenoids through dedicated terminal boards (TREG/TRPG), ensuring an ultra-fast response time (typically 0.1 seconds for solenoid response). This direct control path and dedicated I/O for trip functions mean that the emergency shutdown process is independent of the main turbine control system’s operational complexities. This isolation is a key differentiator, providing a layer of “last resort” protection that remains effective even if the primary control system experiences severe malfunctions.

• Innovation Point 3: Comprehensive Monitoring and Diagnostics for Proactive Maintenance: Beyond its core overspeed protection, the GE VPROH2B IS215VPROH2BCintegrates multiple sensor inputs, including analog current inputs and nine thermocouple inputs. This allows for comprehensive monitoring of critical parameters like exhaust over-temperature, providing additional layers of protection. Furthermore, the board includes internal diagnostics and communicates via Ethernet for IONet with the main control system. This enables operators to remotely monitor the health of the protection system itself, initiate test commands, and perform diagnostics without interrupting turbine operation, facilitating proactive maintenance and ensuring the continuous readiness of the safety system.

Application Cases and Industry Value:

A major integrated steel plant relied heavily on its large blast furnace gas turbine to power its operations, with any unscheduled shutdown causing massive financial losses. Their older control system lacked the advanced safety features needed to comply with updated industry regulations for turbine overspeed protection.

To address this, the plant invested in upgrading its turbine control system to the GE Mark VI platform, specifically incorporating the GE VPROH2B IS215VPROH2BC modules in a triple redundant configuration.

Within the first year of operation, a rare transient event caused a momentary glitch in the primary turbine governor, leading to a rapid acceleration. Crucially, the independent GE VPROH2B IS215VPROH2BC system, with its dedicated speed monitoring and TMR logic, immediately detected the overspeed condition. It activated the emergency trip solenoids, bringing the turbine to a safe stop within milliseconds, completely independent of the governor issue. This prompt and decisive action prevented a potential run-away turbine scenario and averted an estimated $5 million in catastrophic equipment damage and a week of lost production. The plant’s operators also appreciated the detailed diagnostic information provided by the GE VPROH2B IS215VPROH2BC, which helped engineers quickly identify the root cause of the governor’s anomaly, ensuring corrective measures could be taken efficiently, further enhancing the plant’s operational safety and reliability.

Related Product Combination Solutions:

The GE VPROH2B IS215VPROH2BC is a specialized module, typically integrated within a comprehensive GE Mark VI system:

• GE Mark VI Turbine Control System: The overarching control platform for gas, steam, and wind turbines, which the IS215VPROH2BCis designed to work with.

• GE IS200TREGH1B Trip Terminal Board (TREG): This terminal board interfaces directly with the IS215VPROH2BC, providing the positive side of the 125 VDC to the trip solenoids and controlling their actuation.

• GE IS200TRPGH1B Trip Terminal Board (TRPG): Works in conjunction with TREG, providing the negative side for the trip solenoids.

• GE IS215 series I/O Packs/Modules: Other I/O modules within the Mark VI system that provide various inputs (e.g., vibration, pressure, temperature) and outputs for the overall turbine control.

• GE HMI/Operator Interface (e.g., WorkstationST): Software and hardware that provide the operator interface to monitor turbine status, alarms, and diagnostics, including those reported by the IS215VPROH2BC.

• GE Cabinet Power Distribution Module (PDM): Provides the 125 VDC power supply to the IS215VPROH2BCand other modules within the control cabinet.

• Turbine Speed Magnetic Pick-up Units (MPUs): The physical sensors providing the speed signals directly to the IS215VPROH2BC.

Installation, Maintenance, and Full-Cycle Support:

Installation of the GE VPROH2B IS215VPROH2BC involves carefully sliding the board into its designated VME slot within the Mark VI protection module rack. This process requires powering down the VME processor I/O rack for safety. Once seated, captive screws on the front panel secure the board, and LED diagnostics confirm proper installation. Wiring involves connecting the speed pickups, analog inputs, and thermocouples to their respective terminal boards (like TPRO and TREG), which then interface with the IS215VPROH2BC. Commissioning typically involves configuring the overspeed trip setpoints, alarm thresholds, and communication parameters through the Mark VI’s engineering software, and rigorously testing the trip functions to ensure their readiness and reliability.

Routine maintenance for the GE VPROH2B IS215VPROH2BC is generally minimal, given its robust, solid-state design and critical safety function. Key maintenance practices include periodic visual inspection for any physical damage or signs of overheating, ensuring proper cooling within the control cabinet, and verifying the integrity of all wiring connections. Crucially, functional tests of the emergency trip system are performed regularly as part of standard turbine maintenance protocols, which directly validate the operational integrity of the IS215VPROH2BC. Fault handling is simplified by the board’s onboard diagnostics and LED indicators, which immediately signal any internal issues or communication problems, allowing for swift identification and replacement.
