Description

The TRICONEX CIM3211S2 is a sophisticated Communication Interface Module (CIM) from Triconex, a recognized leader in high-integrity safety and critical control solutions, part of Schneider Electric. This module is specifically engineered to provide robust and secure communication capabilities within the Triconex Safety Instrumented System (SIS), acting as a vital link for data exchange with plant control systems, engineering workstations, and diagnostic tools, all while upholding the stringent safety requirements of industrial operations.

Application Scenarios:

Consider a large liquefied natural gas (LNG) facility, where complex processing units rely on precise control and immediate safety actions. The safety system, built on Triconex, must not only execute emergency shutdowns but also integrate seamlessly with the plant’s Distributed Control System (DCS) for operational visibility, alarm management, and historical data logging. This integration is critical for both efficient plant operation and post-incident analysis. The TRICONEX CIM3211S2 modules are strategically deployed in the Triconex system to handle these communication tasks. For instance, the CIM might communicate vital safety system status, module health, and trip event data to the DCS via a Modbus TCP/IP link, allowing operators to see the state of safety interlocks in real-time. Concurrently, it can provide secure access for engineers to upload new safety logic or download diagnostic logs via an RS-232 connection to a TriStation engineering workstation. This robust and secure communication facilitated by the TRICONEX CIM3211S2 ensures that the safety system, while independent for its critical functions, remains a transparent and integral part of the overall plant control and information architecture, addressing the pain points of data isolation and limited system visibility.

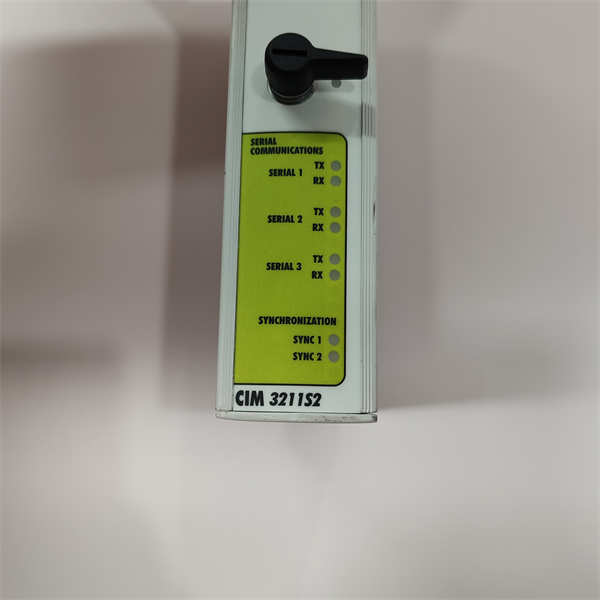

TRICONEX CIM3211S2

Parameter:

Technical Principles and Innovative Values:

The TRICONEX CIM3211S2 employs advanced technical principles that ensure secure, reliable, and high-performance communication within a safety-critical environment, offering distinct innovative value:

• Innovation Point 1: Secure and Isolated Communication for Safety Integrity: A key principle of the TRICONEX CIM3211S2is its ability to provide secure and logically isolated communication channels. While the module facilitates data exchange, it is designed to ensure that external communications do not compromise the safety integrity of the core Triconex system. This isolation prevents malicious attacks or communication errors from propagating into the safety logic, maintaining the system’s SIL 3 certification. The CIM3211S2 acts as a robust firewall, meticulously managing data flow to uphold the fundamental principle of “safety first” in all interactions.
• Innovation Point 2: Versatile Multi-Protocol Support for Seamless Integration: The TRICONEX CIM3211S2offers extensive multi-protocol support, including common industrial protocols like Modbus TCP/IP, Modbus Serial (RS-232/RS-485), and OPC. This versatility is a significant innovation as it allows seamless integration with a wide array of existing plant control systems (DCS, SCADA), data historians, and diagnostic tools from various vendors. This eliminates the need for complex custom gateways or software, simplifying system architecture, reducing integration costs, and enhancing data accessibility across the enterprise, crucial for both operational efficiency and regulatory compliance.
• Innovation Point 3: High-Performance Data Throughput with Redundancy and Diagnostics: Powered by a high-performance PowerPC processor, the TRICONEX CIM3211S2ensures high-speed data throughput, crucial for real-time monitoring and event logging in dynamic industrial processes. When deployed within a TMR system, the communication pathways can also leverage redundancy, ensuring continuous data availability even if a single CIM module experiences an issue. Furthermore, comprehensive onboard diagnostics with LED indicators provide continuous health monitoring of the communication links and the module itself, proactively alerting operators to potential issues, thereby minimizing communication failures and maximizing data integrity for critical decision-making.

Application Cases and Industry Value:

In a complex pharmaceutical manufacturing facility, the batch reactor systems are governed by a Triconex SIS to prevent runaway reactions. While safety is paramount, operators and process engineers also require real-time data on safety system status, interlock bypasses, and historical event logs for operational efficiency and regulatory auditing. Their previous communication infrastructure was slow and fragmented, leading to delays in data analysis.

The facility implemented TRICONEX CIM3211S2 modules to bridge the Triconex safety system with their plant-wide DCS and a dedicated historian. Utilizing Ethernet/IP communication, the CIM3211S2 modules securely and continuously transferred critical safety-related data, such as valve positions, interlock statuses, and diagnostic flags, to the DCS. Simultaneously, event logs and detailed fault information were sent to the historian for long-term archiving and analysis.

This integration, powered by the TRICONEX CIM3211S2, yielded significant value. Operators gained real-time situational awareness of the safety system’s state directly within their DCS interface, leading to faster incident response times and a 20% reduction in false alarms due to improved data fidelity. The ability to quickly retrieve detailed historical event logs from the historian for root cause analysis significantly reduced investigation time by half after minor incidents, streamlining regulatory reporting and improving overall plant safety management. The secure communication links provided by the CIM3211S2 also ensured data integrity, crucial for audit compliance in the highly regulated pharmaceutical industry.

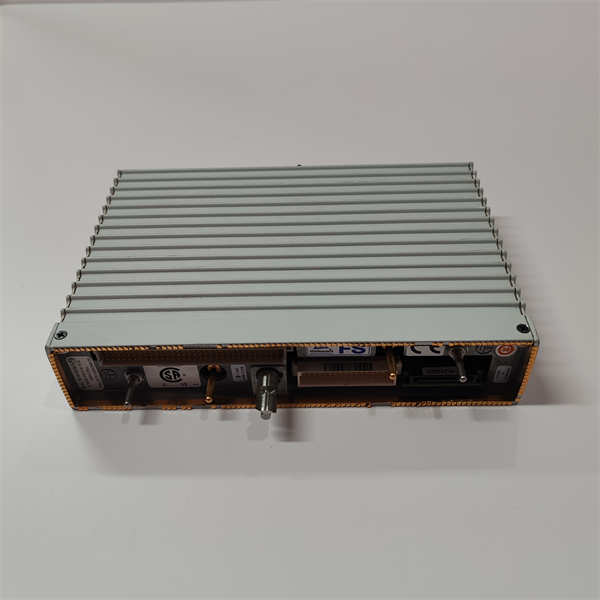

TRICONEX CIM3211S2

Related Product Combination Solutions:

The TRICONEX CIM3211S2 functions optimally within the Triconex Safety Instrumented System, collaborating with:

• Triconex Main Processor Modules (e.g., MP3008, MP3007): The central processing units that execute the safety logic, with which the CIM3211S2
• Triconex Digital Input/Output Modules (e.g., DI3301S2, DO3381): The field I/O modules whose status and data the CIM3211S2makes available to external systems.
• Triconex Analog Input/Output Modules (e.g., AI3351, AO3481S2): Similar to digital I/O, these provide continuous process variable data accessible via the CIM3211S2.
• Triconex Chassis/Rack (e.g., 8110): The physical backplane that houses the CIM3211S2and provides power and internal communication.
• Triconex Power Supplies (e.g., PS8310, PS8312): Provide redundant and stable power to the entire Triconex system.
• TriStation 1131 Software: The engineering workstation software used to configure the CIM3211S2, program, and diagnose the entire Triconex system.
• Plant DCS/SCADA Systems (e.g., Foxboro Evo, Honeywell Experion, ABB 800xA, Emerson DeltaV): External control systems that integrate with the Triconex system via the communication capabilities of the CIM3211S2.
• Historian and Asset Management Systems: Platforms that receive long-term data and diagnostic information from the CIM3211S2for performance analysis and predictive maintenance.

Installation, Maintenance, and Full-Cycle Support:

Installation of the TRICONEX CIM3211S2 is designed for integration into the Triconex chassis, typically via hot-insertion into an available slot. Once seated, the module connects to its designated external communication networks (e.g., Ethernet cables for Modbus TCP/IP, serial cables for RS-232/RS-485). Commissioning involves configuring the communication protocols, IP addresses, and data mappings using the TriStation 1131 engineering software. Rigorous testing of data exchange with connected DCS/SCADA systems and diagnostic tools is performed to ensure seamless and reliable communication, a critical step in verifying the integrity of the integrated control and safety architecture.

Routine maintenance for the TRICONEX CIM3211S2 itself is minimal, reflecting its robust, solid-state design. Emphasis is placed on maintaining the integrity of the communication network infrastructure (cabling, switches) and ensuring a stable operating environment within the control cabinet. The module’s extensive self-diagnostics continuously monitor its operational health and communication links, with status LEDs providing immediate visual feedback. Any detected faults are clearly indicated and can be detailed further via the TriStation software. In the event of a fault, the CIM3211S2 is hot-swappable, allowing for online replacement without disrupting the safety function or requiring a process shutdown, significantly minimizing downtime and simplifying maintenance procedures.

Triconex, a part of Schneider Electric, provides comprehensive full-cycle support for its safety systems, including the TRICONEX CIM3211S2. This includes in-depth product documentation, specialized software tools for configuration and diagnostics, and a global network of highly skilled technical support engineers. They offer extensive training programs on system operation, maintenance, and cybersecurity best practices. Furthermore, Schneider Electric ensures long-term availability of genuine spare parts and offers upgrade paths to newer system versions, guaranteeing the sustained reliability, security, and performance of your critical safety and control infrastructure throughout its operational life.
