Description

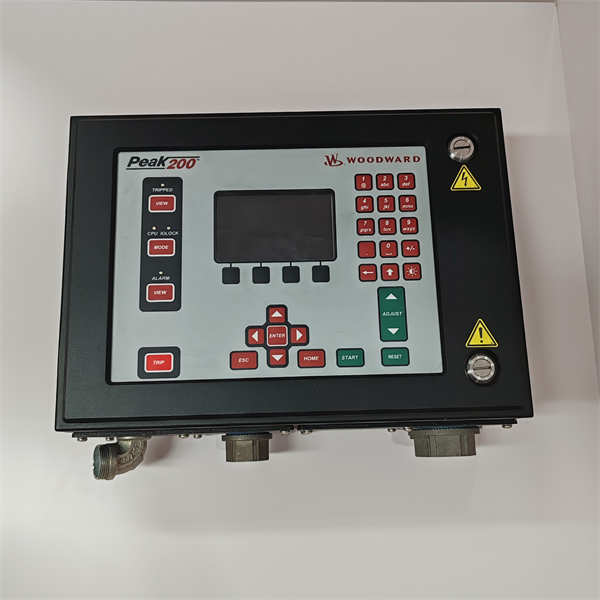

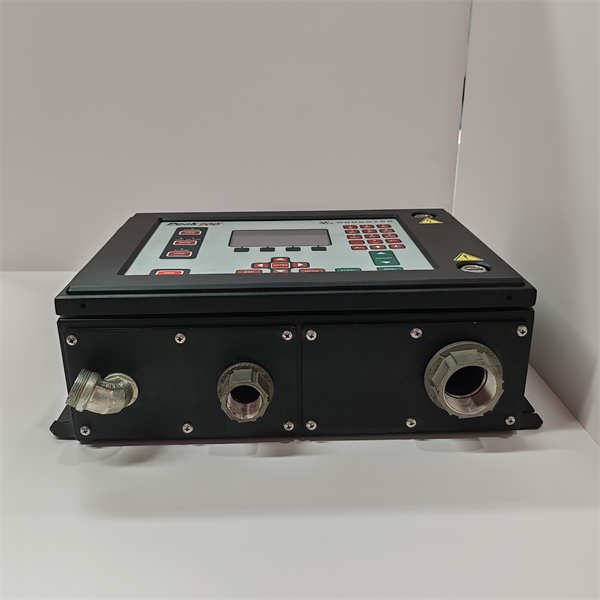

The WOODWARD PEAK200-HVAC 8200-1501 is a cutting-edge digital controller designed by Woodward, a global leader in energy control solutions. This specific model, 8200-1501, is part of the esteemed PEAK200 series, meticulously engineered for the operation and protection of small to medium-sized single valve or single valve-rack industrial steam turbines and turbo-expanders. It represents Woodward’s next generation of field-proven, off-the-shelf controllers, delivering cost-effective yet highly sophisticated control capabilities for critical rotating machinery. The WOODWARD PEAK200-HVAC 8200-1501 integrates advanced algorithms, protective logic, and a user-configurable interface to simplify the management of steam turbine applications.

Functioning as the central intelligence for steam turbine packages, the WOODWARD PEAK200-HVAC 8200-1501 provides precise control over parameters such as turbine speed, load, and various header pressures (inlet and exhaust). Its technical positioning is rooted in delivering robust, stable, and fast transient responses, which are paramount for ensuring operational efficiency and safety in industries like oil and gas, petrochemicals, and power generation. The controller’s design includes specialized screens and event recorders, enhancing user interaction and troubleshooting. The inherent flexibility of the WOODWARD PEAK200-HVAC 8200-1501 allows it to be customized to meet diverse application-specific requirements, making it a versatile and indispensable component in modern industrial automation systems that rely on steam power.

The value of the WOODWARD PEAK200-HVAC 8200-1501 extends beyond basic control; it significantly contributes to enhancing overall plant performance, reducing operational risks, and minimizing maintenance overhead. By ensuring the reliable and accurate governance of steam turbines, it optimizes energy conversion, improves process stability, and safeguards high-value assets against potential damage from upset conditions or overspeed events. Its integrated protective features and ease of configuration make the WOODWARD PEAK200-HVAC 8200-1501 an ideal solution for OEMs seeking to deliver high-performance and dependable turbine packages.

WOODWARD PEAK200-HVAC 8200-1501

Technical Specifications

Main Features and Advantages

The WOODWARD PEAK200-HVAC 8200-1501 represents a significant advancement in steam turbine control technology, offering a powerful blend of integrated capabilities, adaptability, and reliability crucial for optimizing industrial processes.

Integrated Operator Control Panel: A key feature of the WOODWARD PEAK200-HVAC 8200-1501 is its integrated graphical operator control panel (HMI). This intuitive interface allows operators to easily monitor actual and setpoint values from a single screen, simplifying turbine operation, configuration, and troubleshooting without the need for external handheld programming devices. This directly enhances operational efficiency and reduces the learning curve for plant personnel compared to systems requiring separate HMI solutions.

Comprehensive Control Algorithms: The controller is pre-loaded with specifically designed algorithms and logic for starting, stopping, controlling, and protecting small industrial steam turbines or turbo-expanders driving various loads such as compressors, pumps, or industrial fans. Its unique PID structure is optimized for controlling critical steam plant parameters, including turbine speed, turbine load, turbine inlet header pressure, and turbine exhaust header pressure. This tailored functionality ensures precise and stable control, optimizing energy utilization and preventing costly operational excursions.

Enhanced Connectivity and Expandability: The WOODWARD PEAK200-HVAC 8200-1501 offers robust communication capabilities with two Ethernet ports (supporting Modbus TCP/UDP), one serial Modbus port (RS-232 or RS-485 compatible), and two CAN ports (for LinkNet-HT communication protocol). This extensive connectivity allows for seamless integration with plant-wide DCS/SCADA systems and enables the expansion of I/O signals through Woodward’s LinkNet-HT distributed I/O modules. This expandability ensures that the WOODWARD PEAK200-HVAC 8200-1501 can adapt to growing application requirements and integrate smoothly into existing plant architectures.

Reliability and Protection: The WOODWARD PEAK200-HVAC 8200-1501 is engineered for high reliability, incorporating features like redundant speed sensor inputs and integrated first-out problem indicators. It provides critical protective functions such as overspeed protection (with test capability and protection during start-up), safeguarding valuable turbine assets from potentially damaging conditions. The ability to monitor vibration and bearing temperatures (with auxiliary modules) further enhances protective measures, contributing to reduced unplanned outages and extended equipment life.

User Configurability and Diagnostic Tools: Designed to be user-configurable, the WOODWARD PEAK200-HVAC 8200-1501 allows engineers to tailor the unit to specific plant requirements. Features like real-time clock synchronization via SNTP, trip and alarm logs, and real-time trending provide valuable diagnostic information for proactive maintenance and efficient troubleshooting. The internal turbine simulator facilitates offline testing and validation of control strategies, reducing commissioning time and risks.

WOODWARD PEAK200-HVAC 8200-1501

Application Field

The WOODWARD PEAK200-HVAC 8200-1501 steam turbine controller is meticulously designed for applications requiring precise and reliable control of small to medium-sized industrial steam turbines or turbo-expanders. Its robust capabilities make it an ideal solution across a diverse range of heavy industries.

In the Oil and Gas Industry, the WOODWARD PEAK200-HVAC 8200-1501 is frequently utilized for controlling steam turbines that drive critical equipment such as compressors and pumps in refineries, petrochemical plants, and upstream processing facilities. For instance, it can precisely regulate the speed of a turbine driving a natural gas compressor, ensuring stable gas flow and pressure while optimizing energy consumption. Its ability to provide fast transient responses is crucial for managing load changes and maintaining stable operations in dynamic production environments, directly preventing costly process upsets and enhancing overall plant efficiency.

Within Power Generation Facilities, particularly those involving combined heat and power (CHP) systems, waste-to-energy plants, or distributed generation, the WOODWARD PEAK200-HVAC 8200-1501 governs steam turbines used for electrical power generation. It enables precise control over turbine speed and electrical load, ensuring grid synchronization and stable power output. For industrial complexes generating their own power, this controller optimizes steam usage for both electricity generation and process heating, contributing significantly to energy efficiency and reduced operational costs. Its protective features are vital for safeguarding the turbine and generator assets, minimizing risks of equipment damage due to overspeed or other abnormal conditions.

In the Pulp and Paper Industry and various Manufacturing Sectors that utilize steam for process heating or mechanical drive, the WOODWARD PEAK200-HVAC 8200-1501 manages steam turbines driving equipment like paper machine rolls or large fans. Its precise control over steam flow and turbine speed ensures consistent product quality and efficient machine operation. For example, maintaining a stable speed for a paper machine directly impacts paper thickness and consistency. The controller’s diagnostic capabilities also aid in predictive maintenance, preventing unexpected shutdowns and maximizing production uptime for the WOODWARD PEAK200-HVAC 8200-1501 in such continuous processes.

Related Products

The WOODWARD PEAK200-HVAC 8200-1501 is part of a comprehensive family of turbine controls and is often complemented by other Woodward products to create complete control solutions:

WOODWARD 8200-1500 (Peak200 – Bulkhead Mount, LV): This is a lower voltage variant of the PEAK200 series, offering similar functionality but for 24 VDC power supplies.

WOODWARD 8200-1503 (Peak200 – Front Panel Mount, LV): Another variant within the PEAK200 series, designed for front panel mounting with a low voltage (LV) power supply, offering flexibility in installation.

WOODWARD 8200-1508 (Peak200 – Bulkhead Mount, HV, Class1 Div2 Haz. Loc. Compliant): An enhanced version of the PEAK200 for high voltage (HV) applications, designed to meet hazardous location compliance standards, expanding deployment possibilities for the PEAK200-HVAC 8200-1501 into classified areas.

WOODWARD 505 / 505E (8200-1300 series) Steam Turbine Controls: These are previous generation or alternative controllers offering similar core functionalities to the PEAK200-HVAC 8200-1501 but with different hardware platforms and feature sets. The PEAK200 series often serves as an upgrade path for these older systems.

WOODWARD LinkNet-HT Distributed I/O Modules (e.g., 8200-1200, 8200-1203, 8200-1204, 8200-1205): These auxiliary modules extend the input/output capabilities of the WOODWARD PEAK200-HVAC 8200-1501, allowing for integration of additional analog inputs (4-20 mA), RTD inputs (for bearing temperature monitoring), discrete inputs, and discrete outputs over CAN communication.

WOODWARD RemoteView Software License (8928-5311): This software program allows a computer or touch panel to function as an engineering workstation or remote operator control panel for the WOODWARD PEAK200-HVAC 8200-1501, facilitating remote configuration, monitoring, and data trending.

WOODWARD Control Assistant Software Service Tool: Used in conjunction with the PEAK200-HVAC 8200-1501 for detailed configuration, real-time trend viewing, uploading/downloading of configuration files, and accessing alarm/trip logs, enhancing serviceability and diagnostic capabilities.

WOODWARD Vibration Sensor Kits: These 4-20mA accelerometer sensors are used with the WOODWARD PEAK200-HVAC 8200-1501 (via LinkNet-HT modules) to monitor turbine vibration levels, enabling the controller to alarm or trip on high vibration events, thus providing critical machine protection.

Installation and Maintenance

Pre-installation preparation: Before installing the WOODWARD PEAK200-HVAC 8200-1501, thorough preparation of the installation environment is crucial to ensure optimal performance and longevity. The control cabinet or mounting location must adhere to the specified operating temperature range of -20°C to +70°C and maintain proper ventilation to prevent overheating, despite the unit’s low power consumption. Ensure the environment is free from excessive moisture, corrosive gases, and significant vibration, as these can compromise the controller’s integrity. Adequate space must be allocated for wiring, cooling, and future access for maintenance. All power sources to the installation area should be de-energized and locked out according to standard safety procedures. Essential tools include standard electrical hand tools, a multimeter, and crimping tools for terminal block connections. Proper grounding of the WOODWARD PEAK200-HVAC 8200-1501 and its associated wiring is paramount to minimize electromagnetic interference and ensure stable signal integrity.

Maintenance recommendations: The WOODWARD PEAK200-HVAC 8200-1501 is designed for high reliability and minimal maintenance, but routine checks ensure its long-term performance. Periodically inspect all electrical connections for tightness and signs of corrosion or wear. Verify that the cooling pathways are unobstructed to maintain the optimal operating temperature. Leverage the integrated diagnostic features of the WOODWARD PEAK200-HVAC 8200-1501, such as the first-out problem indicator, trip/alarm logs, and real-time trending capabilities accessible via the HMI or RemoteView software. These features enable proactive identification of potential issues, facilitating timely intervention before minor anomalies escalate into critical faults. In case of module replacement, the WOODWARD PEAK200-HVAC 8200-1501 supports simple removal and re-installation procedures; always refer to the official Woodward product manual for detailed instructions and ensure genuine replacement parts are used to maintain system integrity and warranty.

Product Guarantee

Woodward, as a trusted leader in control system technology, provides a comprehensive product guarantee for the WOODWARD PEAK200-HVAC 8200-1501, reflecting our unwavering commitment to quality and customer satisfaction. Each WOODWARD PEAK200-HVAC 8200-1501 controller is manufactured to the highest industrial standards and undergoes rigorous testing to ensure its reliability and performance. We stand by our products with a standard warranty, safeguarding against defects in materials and workmanship under normal use and service conditions. This commitment ensures that your investment in the WOODWARD PEAK200-HVAC 8200-1501 is protected. Beyond the warranty period, Woodward offers extensive after-sales support, including readily available technical documentation, online resources, and a global network of highly skilled service engineers. Our dedicated support teams are equipped to provide expert assistance, from troubleshooting and diagnostics to spare parts availability and service contracts, ensuring the continuous, optimal operation of your WOODWARD PEAK200-HVAC 8200-1501 and the critical assets it controls. Our priority is to deliver not just a product, but a complete solution backed by world-class service and unwavering confidence in our engineering excellence.
