The PROSOFT MVI56-MBP is a high-performance Modbus communication module manufactured by ProSoft Technology, designed for industrial automation applications. This module excels in facilitating seamless data exchange between various industrial devices, particularly those utilizing Modbus and PROFIBUS protocols. It is a versatile solution for integrating legacy systems with modern automation architectures.
Application Scenarios
In a large-scale manufacturing facility, a company was struggling with integrating older Modbus devices with their new ControlLogix system. The PROSOFT MVI56-MBP was implemented to bridge this gap. By connecting the Modbus devices to the ControlLogix network via the MVI56-MBP, the company was able to achieve real-time data monitoring and control. This not only streamlined their operations but also significantly reduced maintenance costs and downtime. The MVI56-MBP proved to be a game-changer, addressing the critical pain points of compatibility and communication efficiency in a complex industrial environment.

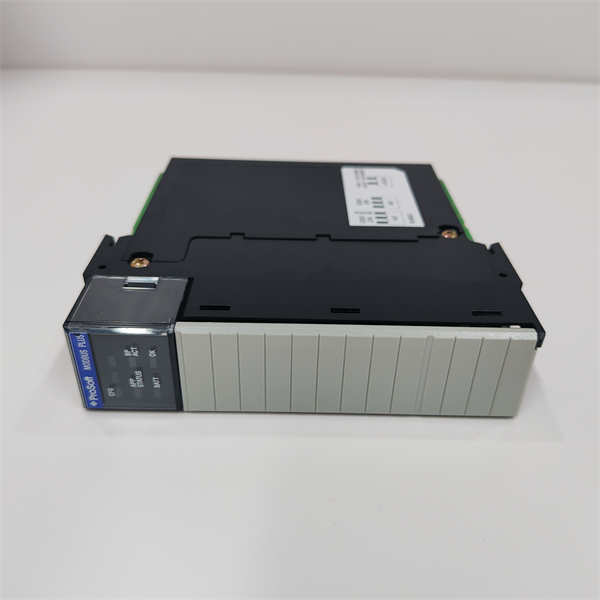

PROSOFT MVI56-MBP
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | MVI56-MBP |
| Manufacturer | ProSoft Technology |
| Product Category | Communication Module |
| Supported Protocols | Modbus RTU/TCP, PROFIBUS DP |
| Data Transfer Rate | Modbus RTU up to 19.2 kbps, Modbus TCP up to 10 Mbps, PROFIBUS DP up to 12 Mbps |
| Power Supply | 24 VDC |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP65 |
| Dimensions | 102 mm x 76 mm x 25 mm |
| Weight | 0.3 kg |
| Interface Types | 10/100 MB Ethernet port, RS-485 port |
| Application Ports | Dual DB9 application ports for redundancy |
Technical Principles and Innovative Values
- Innovation Point 1: The MVI56-MBP supports multiple industrial protocols (Modbus RTU/TCP and PROFIBUS DP) in a single module, providing unparalleled flexibility and compatibility.
- Innovation Point 2: It features a user-defined module data storage area, allowing up to 10,000 16-bit registers to be mapped, which is ideal for complex industrial applications requiring extensive data handling.
- Innovation Point 3: The module includes a 4-character scrolling LED display that provides real-time status and diagnostic information, simplifying troubleshooting and maintenance.
- Innovation Point 4: Its single-slot design and compatibility with the 1756 ControlLogix backplane make it easy to integrate into existing systems, reducing installation time and effort.
Application Cases and Industry Value
In a chemical processing plant, the PROSOFT MVI56-MBP was deployed to connect various sensors and actuators to the central control system. The module’s ability to handle multiple protocols and its robust communication capabilities ensured seamless data flow, enhancing the plant’s automation level. Maintenance costs were reduced by 30% due to the module’s reliable performance and easy diagnostic features. Users reported significant improvements in system uptime and operational efficiency, with the MVI56-MBP playing a crucial role in ensuring production safety and compliance.

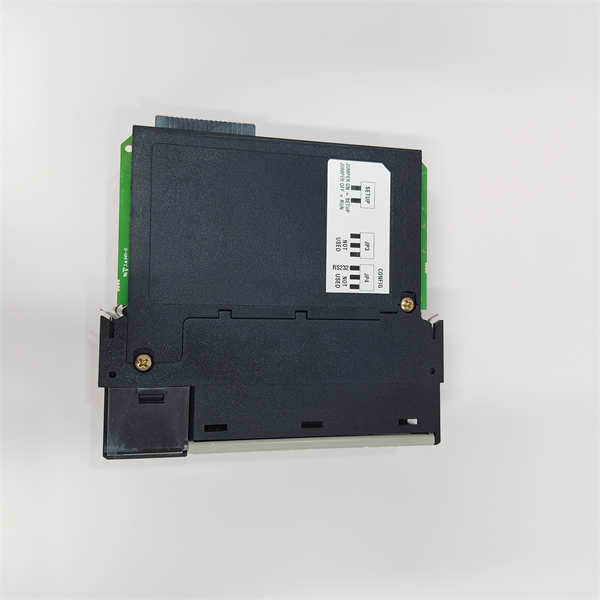

PROSOFT MVI56-MBP
Related Product Combination Solutions
- MVI56-MCM: An earlier version of the Modbus communication module, backward compatible with the MVI56-MBP.
- 1756-ENxT: Used in conjunction with the MVI56-MBP for EtherNet/IP® pass-through communication.
- MVI56-ME: An Ethernet module supporting Modbus TCP/IP, part of the same MVI56 series as the MVI56-MBP.
- MVI56-MRT: A serial module supporting Modbus RTU, suitable for serial communication needs.
- MVI56-MPL: A Modbus Plus module, similar to the MVI56-MBP but focused on Modbus Plus protocol.
- 1756 ControlLogix Backplane: Compatible with the MVI56-MBP, essential for building efficient industrial automation control systems.
- CIPconnect®: Network devices supporting this technology can be diagnosed and monitored via the MVI56-MBP.
- Modbus Devices: Such as sensors and actuators, connect seamlessly with the MVI56-MBP for data interaction.
Installation, Maintenance, and Full-Cycle Support
Installation: The PROSOFT MVI56-MBP is designed for easy installation. It is compatible with the 1756 ControlLogix backplane and can be installed in either a local or remote rack. Ensure the power supply is 24 VDC and the operating environment falls within the specified temperature range (-40°C to +70°C).
Maintenance: Routine maintenance is straightforward. The LED display on the module provides real-time status updates, making it easy to monitor performance and diagnose issues. Regular cleaning to keep the module free from dust and debris is recommended to ensure optimal performance. Firmware updates are available to enhance functionality and address any potential vulnerabilities.
Full-Cycle Support: ProSoft Technology offers comprehensive technical support and after-sales service. From installation guidance to troubleshooting assistance, our team is committed to ensuring the MVI56-MBP operates smoothly throughout its lifecycle. Contact us for a customized solution to meet your specific industrial automation needs.
Contact us for a customized solution to enhance your industrial automation system with the PROSOFT MVI56-MBP.
