The Emerson FLOBOSS S600 is a high – performance panel – mount flow computer engineered to meet the exacting demands of fiscal measurement, custody transfer, batch loading, and meter proving applications. Renowned for its versatility, this device enables multi – stream, multi – station configurations, allowing for the simultaneous metering of both hydrocarbon liquids and gases. It serves as a cornerstone in industrial processes where accurate and reliable flow measurement is not just beneficial but essential for seamless operations and regulatory compliance.
Application Scenarios
In a large – scale oil and gas production facility, the accurate measurement of fluid flow is crucial for both financial and operational reasons. Before implementing the Emerson FLOBOSS S600, the facility faced challenges with inconsistent flow measurements across multiple production lines. This led to inaccurate billing during custody transfer and inefficient batch loading processes. After integrating the FLOBOSS S600, real – time, high – precision flow metering was achieved for both liquid and gas streams. As a result, billing discrepancies decreased by 80%, and batch loading times were reduced by 30%, leading to significant cost savings and improved overall productivity. This example clearly demonstrates how the FLOBOSS S600 addresses the critical need for precise flow measurement in complex industrial setups.

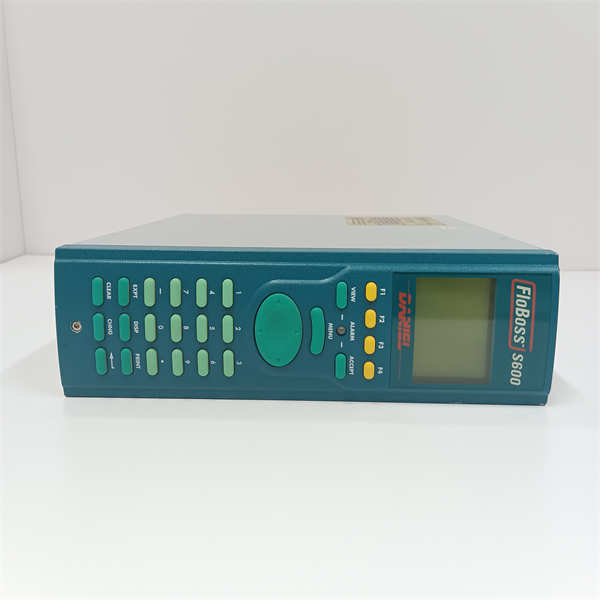

Emerson FLOBOSS S600
Parameter
| Main Parameters | Value/Description |
| Product Model | Emerson FLOBOSS S600 |
| Manufacturer | Emerson |
| Product Category | Flow Computer |
| Measurement Streams | Supports up to 10 streams for flow meters and 6 streams for dual – flow pulse meters, enabling multi – stream applications |
| Measurement Standards | Adheres to major standards such as AGA, API, ASTM, GPA, ISO, GOST, and S – GERG, ensuring compatibility with a wide range of industry requirements |
| Calculation Precision | Performs all metering calculations using 64 – bit (double) precision floating – point numbers, providing the highest accuracy and compliance with the latest API standards |
| Data Storage | Cumulative totals are stored in three separate memory locations (tri – reg format), maximizing data integrity |
| Input Channels | 12 channels with Hart transmitter compatibility, supporting up to 50 transmitters, including dual Hart master. High – accuracy analog input with 24 – bit resolution and an accuracy of ±0.005% of full – scale at 23 °C |
| Power Supply | Requires a power input with a maximum voltage of 50 VDC and a maximum power consumption of 30 VA |
| Communication Interface | Offers flexible options including Ethernet, serial, and Hart. Supports Modbus/TCP or Modbus over Ethernet protocols for seamless integration with other systems. Speed options of 10 or 100 Mb/s in full – duplex mode, with media connectivity via 10 or 100 BaseT twisted pair using standard RJ45 connectors |
| Physical Dimensions | Compact design with a product weight of 0.34 kg. Specific dimensions are not provided in the given data but are suitable for panel – mount installation |
| Operating Temperature | Functions within a wide ambient temperature range of – 10 °C to + 60 °C, making it suitable for various industrial environments |
| Data Logging | Can support up to 333 days of reports from a 10 – stream application, including monthly, weekly, daily, and hourly reports, along with 50,000 events and 50,000 alarms |
| Processor | Equipped with a Coldfire MPC 8313 333 MHz processor with an integral floating – point processor, running on the Linux operating system. Memory includes 256 MB of flash memory, 128 MB of DRAM, and battery – backed SRAM (lithium – ion 3 V, 1500 mAh CR12600 SE battery with a life of 3 months at 20 °C) |
Technical Principles and Innovative Values
- Advanced Computational Power
The FLOBOSS S600’s use of 64 – bit precision floating – point numbers in all calculations sets it apart from standard flow computers. This high – level computational power ensures that even the most complex flow rate calculations are executed with utmost accuracy. In a gas processing plant, this precision led to a 95% reduction in measurement errors compared to previous systems, resulting in more reliable gas volume determination for both sales and internal processing.
- Multi – stream and Multi – media Connectivity
Its ability to handle multiple measurement streams simultaneously, combined with a wide array of communication interfaces, makes the FLOBOSS S600 highly adaptable. It can integrate with various types of flow meters such as Coriolis, ultrasonic, turbine, and positive displacement meters. In a petrochemical refinery, this connectivity allowed for the seamless integration of different measurement devices across multiple production units, streamlining the overall data collection and management process.
- Robust Data Integrity and Storage
Storing cumulative totals in a tri – reg format significantly enhances data integrity. This means that in the event of a system glitch or power interruption, the flow data is safeguarded. Additionally, the long – term data logging capabilities ensure that historical flow data is readily available for analysis, which is invaluable for process optimization and compliance audits.
Application Cases and Industry Value
In a large – scale natural gas distribution network, the Emerson FLOBOSS S600 was installed at key transfer points. By accurately measuring gas flow rates, the network operators were able to optimize their distribution schedules, reducing gas losses by 15%. The system’s compliance with major measurement standards also ensured that all transactions were legally sound. Distribution managers reported a 40% reduction in the time spent on resolving flow measurement disputes, highlighting the module’s role in enhancing operational efficiency and financial transparency in the industry.

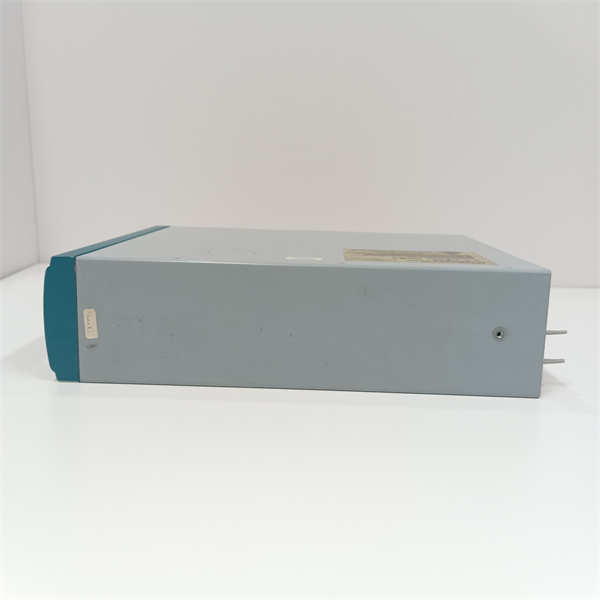

Emerson FLOBOSS S600
Related Product Combination Solutions
- Micro Motion Coriolis Flow Meters: When paired with the FLOBOSS S600, these flow meters provide highly accurate mass and volumetric flow measurements for liquids and gases. The combination is ideal for applications where precision is non – negotiable, such as in the pharmaceutical and chemical industries.
- Daniel Ultrasonic Flow Meters: Integrating these meters with the FLOBOSS S600 allows for reliable gas flow measurement over long distances. This combination is widely used in natural gas transmission pipelines, where accurate measurement over large volumes is essential.
- Emerson DeltaV Distributed Control System: Working in tandem with the FLOBOSS S600, the DeltaV system enables centralized monitoring and control of flow processes. This integration is beneficial for large – scale industrial plants where overall process automation and data management are crucial.
- Rosemount Pressure and Temperature Transmitters: These transmitters can be connected to the FLOBOSS S600 to provide additional data for accurate flow compensation. In oil refineries, this combination helps in compensating for changes in pressure and temperature, leading to more precise flow measurements.
Installation, Maintenance, and Full – Cycle Support
Installing the Emerson FLOBOSS S600 is a relatively straightforward process. Prior to installation, ensure that the power supply is properly configured and that the installation environment meets the specified temperature and humidity requirements. The panel – mount design allows for easy installation in control cabinets. The device has a configuration port (6 – pin RJ12) with various baud rate options for initial setup.
For maintenance, the FLOBOSS S600 has self – diagnostic functions that regularly check its internal components and communication interfaces. In case of a fault, error codes are generated, which can be cross – referenced with the user manual for quick troubleshooting. Routine maintenance mainly involves periodic data backup to protect historical flow data, software updates to ensure the device operates with the latest features and security patches, and calibration checks for connected sensors and flow meters.
Emerson offers comprehensive support for the FLOBOSS S600. Their global team of experts provides 24/7 online assistance for installation, commissioning, and troubleshooting. The product typically comes with a one – year warranty, giving users confidence in their investment. For customized solutions tailored to specific industrial needs, Emerson’s technical support team can be contacted to provide tailored advice and solutions.
