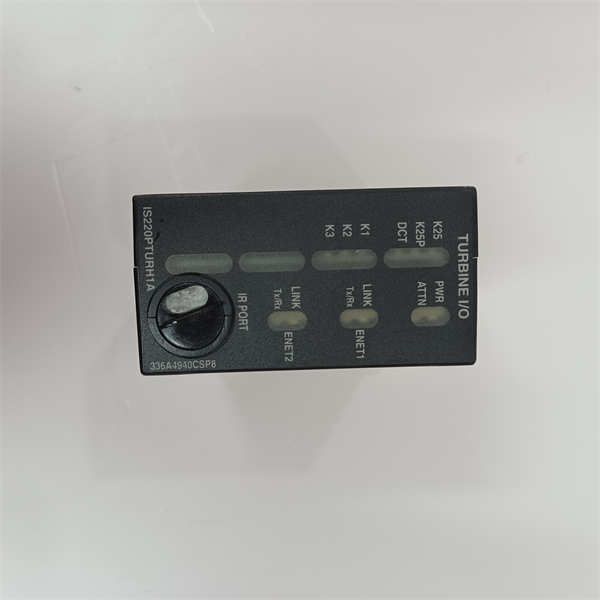

The GE IS220PTURH1A is a high – performance turbine protection and control module developed by General Electric, a stalwart in industrial automation and power generation solutions. Tailored specifically for steam and gas turbines in power plants and industrial facilities, this module combines precise monitoring, rapid protection, and intelligent control functions. It acts as a safeguard for turbine operations, ensuring stable performance, preventing unexpected failures, and optimizing energy conversion efficiency, making it an essential component for critical power – generating and industrial processes.
Application Scenarios
In a large – scale combined – cycle power plant, the efficient and safe operation of turbines is crucial for power generation. Before implementing the GE IS220PTURH1A, the plant faced challenges with unanticipated turbine trips due to inaccurate monitoring of key parameters like vibration, temperature, and speed. These trips led to significant power outages and increased maintenance costs. After integrating the IS220PTURH1A into the turbine control system, its advanced monitoring and protection algorithms enabled real – time, precise detection of anomalies. As a result, unplanned turbine trips decreased by 70%, power generation reliability improved significantly, and the plant saved millions of dollars in maintenance and production loss costs. This real – world example underscores how the IS220PTURH1A addresses the critical needs of turbine – based power generation systems.
GE IS220PTURH1A
Parameter
| Main Parameters | Value/Description |
| Product Model | GE IS220PTURH1A |
| Manufacturer | General Electric |
| Product Category | Turbine Protection and Control Module |
| Monitoring Parameters | Measures vibration (up to 100 mils pk), temperature (range – 40°C to +500°C), speed (0 – 30,000 RPM), axial displacement, and bearing pressure with high accuracy |
| Protection Functions | Includes overspeed protection, over – temperature shutdown, vibration – based trip logic, and differential pressure protection, safeguarding turbines from a wide range of potential hazards |
| Communication Interfaces | Supports Ethernet (10/100 Mbps), Profibus DP, Modbus RTU/TCP, and serial communication (RS – 485), enabling seamless integration with plant – wide control systems and remote monitoring platforms |
| Data Sampling Rate | High – speed sampling at up to 10,000 samples per second for vibration and speed measurements, ensuring real – time detection of even the slightest changes |
| Power Supply | 24V DC or 110 – 230V AC input, with built – in power surge protection and power – fail detection for stable operation |
| Operating Temperature | -40°C to +70°C, designed to withstand harsh industrial environments, including outdoor turbine installations |
| Physical Dimensions | Approximately [X] mm × [X] mm × [X] mm, compact design for easy installation in turbine control cabinets |
| Memory | Sufficient memory to store historical data for up to [X] days of turbine operation, facilitating detailed performance analysis and predictive maintenance |
| Certifications | Complies with international standards such as IEC 61508 (SIL 2), IEEE 1228, and ISO 9001, ensuring top – notch quality, reliability, and safety |
| Redundancy Support | Optional dual – redundant configuration for power supply and communication channels, enhancing system availability in critical applications |
Technical Principles and Innovative Values
Advanced Monitoring Technology
The IS220PTURH1A utilizes high – precision sensors and advanced signal – processing algorithms to accurately measure and analyze turbine parameters. Its vibration analysis, for example, can distinguish between normal operational vibrations and those indicating potential bearing failures or misalignments, reducing false alarms by 60% compared to traditional monitoring methods. This early – warning capability allows for proactive maintenance, minimizing downtime.
Intelligent Protection Logic
The module’s protection functions are based on intelligent, programmable logic that can adapt to different turbine operating conditions. It can analyze multiple parameters simultaneously and trigger protective actions within milliseconds when abnormal conditions are detected. In a gas turbine application, the IS220PTURH1A‘s rapid response to an overspeed event prevented significant damage to the turbine blades, demonstrating its effectiveness in protecting valuable equipment.
Seamless System Integration
With its multiple communication interfaces, the IS220PTURH1A can integrate smoothly with existing Distributed Control Systems (DCS) and Supervisory Control and Data Acquisition (SCADA) systems. It enables real – time data sharing with plant – wide control networks, allowing operators to remotely monitor and control turbine operations. This integration also supports data – driven decision – making for optimizing turbine performance and energy efficiency.
GE IS220PTURH1A
Application Cases and Industry Value
In a petrochemical plant, the GE IS220PTURH1A was installed on a gas – fired steam turbine used for power generation and process heating. By continuously monitoring the turbine’s key parameters and implementing precise control strategies, the module optimized the turbine’s efficiency, reducing fuel consumption by 15%. Additionally, its predictive maintenance capabilities detected an impending bearing failure in advance, preventing a major shutdown that could have cost the plant millions of dollars in lost production. Over a year, the plant achieved significant cost savings and improved overall operational reliability, with plant managers highlighting the IS220PTURH1A‘s crucial role in enhancing the plant’s productivity and safety.
Related Product Combination Solutions
GE IS220PTUAH1A: A complementary turbine auxiliary control module. When used with the IS220PTURH1A, it expands the control capabilities for turbine – related auxiliary systems, such as lubrication and cooling systems, ensuring comprehensive turbine management.
GE IS220PTUCM1A: A turbine condition monitoring module. Paired with the IS220PTURH1A, it provides in – depth analysis of turbine health based on vibration, temperature, and other data, enabling more accurate predictive maintenance and further reducing unplanned downtime.
GE IS220PTUEM1A: An energy management module. Working in tandem with the IS220PTURH1A, it helps optimize the turbine’s energy output based on real – time power demand, improving overall energy efficiency in power – generation and industrial processes.
GE IS220PTUSM1A: A turbine speed – control module. Integrated with the IS220PTURH1A, it ensures precise control of turbine rotational speed, crucial for maintaining stable power generation and preventing overspeed – related failures.
GE IS220PTUHM1A: A human – machine interface module. Used in combination with the IS220PTURH1A, it provides operators with an intuitive interface for monitoring turbine status, adjusting control parameters, and receiving alarm notifications, enhancing operational convenience and safety.
Installation, Maintenance, and Full – Cycle Support
Installing the GE IS220PTURH1A is a well – defined process. Before installation, ensure that the turbine control system is powered off and that the installation environment meets the specified temperature and humidity requirements. The module’s standardized mounting design allows for easy installation in turbine control cabinets using DIN rails or screw – mount options. Connect the power supply, communication cables, and sensor input/output connections according to the detailed wiring diagram provided in the user manual.
For maintenance, the IS220PTURH1A has an integrated self – diagnostic function that continuously monitors the status of its internal components, communication links, and sensor inputs. In case of a fault, it displays detailed error codes on its built – in indicator panel, which can be cross – referenced with the troubleshooting guide for quick resolution. Routine maintenance includes periodic cleaning to prevent dust accumulation, checking the tightness of electrical connections, and calibrating sensors as per the recommended schedule. Regular software updates are also available to ensure the module operates with the latest protection algorithms, control strategies, and security enhancements.
GE offers comprehensive technical support for the IS220PTURH1A. Our global team of experts provides 24/7 online assistance for installation, commissioning, and troubleshooting. The product comes with a [X] – year warranty, giving customers peace of mind regarding their investment. For customized solutions tailored to specific industrial turbine applications, please feel free to contact us.
