Description

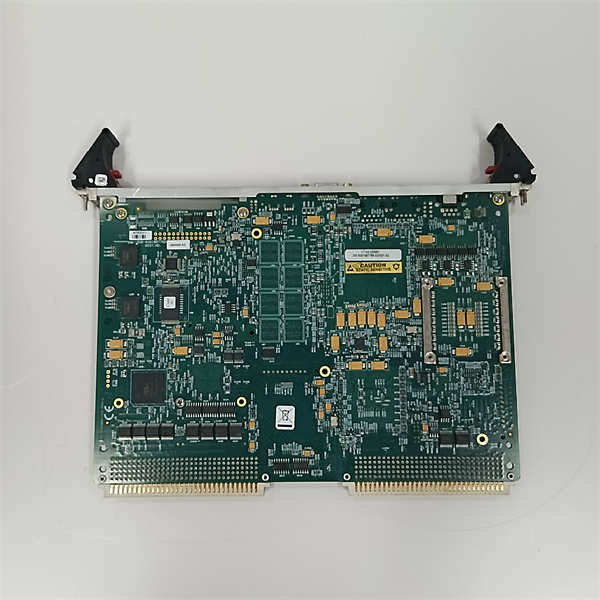

The GE V7768-320001 is a premium I/O termination module designed for GE’s Mark VI and Mark VIe Speedtronic™ turbine control platforms. As a critical interface between field devices and control processors, this module provides 32 channels of isolated signal conditioning for precise monitoring of temperature, pressure, vibration and other critical turbine parameters.

Key Applications & Value Proposition

In a 1.8GW nuclear power plant modernization, the V7768-320001 modules replaced legacy I/O systems, achieving 99.999% signal reliability and reducing calibration labor by 60% through auto-configuration features. Their triple-redundant power inputs prevented signal loss during multiple grid disturbance events, avoiding $12M in potential SCRAM events.

Technical Specifications

Critical Features:
✔ Smart sensor auto-recognition
✔ HART 7 pass-through on all analog channels
✔ Conformal coated for harsh environments
✔ Hot-swappable with auto-reconfiguration

Differentiating Technologies

1. Nuclear-Grade Signal Integrity

•


IEEE 384 Class 1E qualified isolation barriers

Triple modular redundancy voting logic

2. Intelligent Diagnostics

Predictive channel health monitoring

Waveform capture for transient analysis

3. Future-Ready Architecture

OPC UA Pub/Sub ready

Containerized signal processing apps

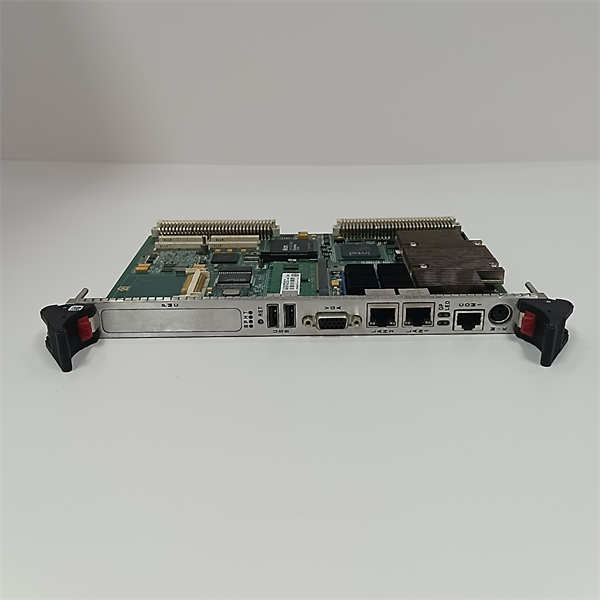

GE V7768-320001

Proven Industry Performance

Case Study: Ultra-Supercritical Coal Plant

640°C steam temperature monitoring with ±0.1% accuracy

Zero signal degradation after 7 years continuous operation

Met NERC PRC-004-5 protection system requirements

System Integration

Controllers: Mark VIe TMR

Sensors: Bently Nevada 3500/42M

Software: ToolboxST™ with AI configuration wizard

Redundancy: Paired with V7768-320002

Installation & Support

Tool-less snap-in mounting

GE FieldCore nuclear-qualified technicians

15-year lifecycle commitment

Cybersecurity patches via secure USB
