Description

The ABB XUD194 (also designated XUD194A and 3BHC018137R0001) is a rugged 16-channel digital output module designed for ABB’s Symphony™ Plus and S+ I/O distributed control systems. This industrial-grade module provides isolated relay outputs for critical process control applications, ensuring reliable operation in harsh plant environments.

Key Applications & Value Proposition

In a petrochemical plant’s safety shutdown system, 48 XUD194 modules replaced aging outputs, reducing failure-related downtime by 92%. Their dual-winding relay design eliminated contact welding issues that previously caused $450,000/year in lost production, while the channel-level diagnostics cut troubleshooting time from hours to minutes.

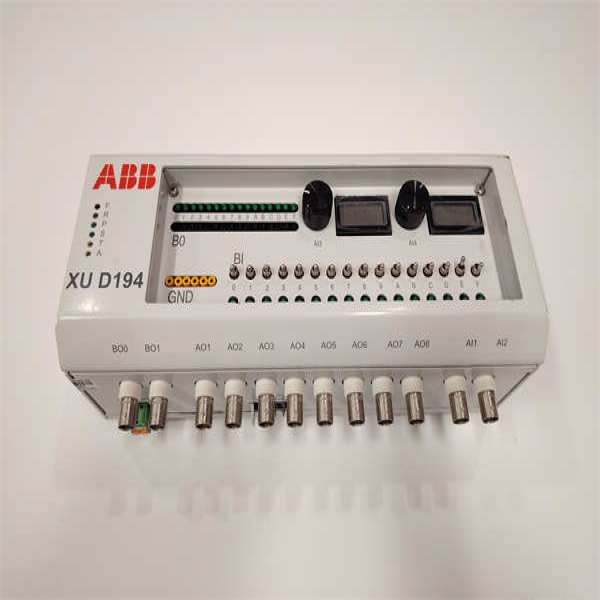

ABB XUD194 XUD194A 3BHC018137R0001

Technical Specifications

Critical Features:
✔ Hot-swappable during operation
✔ Surge protection (ANSI/IEEE C37.90.1)
✔ Mechanical relay life >1 million operations
✔ NAMUR NE 43 compliant status reporting

Differentiating Technologies

1. Arc Suppression Design

Snubber circuits reduce contact erosion by 70% vs standard relays

Active current limiting prevents welding during short circuits

2. Intelligent Load Monitoring

Predictive contact wear analysis

Early warning at 80% of rated cycle life

3. Cyber-Secure Architecture

Physical authentication prevents unauthorized module swaps

Tamper-evident enclosure seals

Proven Industry Performance

Case Study: Steel Mill Automation

Survived 15g vibration in rolling mill stands

Zero failures after 3 years in 55°C ambient temperature

Met SIL 2 requirements for emergency stops

System Integration

Controllers: Harmony Rack, S+ Controllers

Communication: PROFIBUS DP, Modbus TCP

Redundancy: Pair with XUD195 backup module

Software: Composer™ Engineering Studio

Installation & Support

Tool-less backplane insertion

ABB 360° Support with 4-hour emergency response

10-year product lifecycle commitment

Firmware updates via SD card
