Product Introduction

The BENTLY 3500/32 125720-01 is a high-density vibration monitoring interface module for Bently Nevada’s flagship 3500 Series machinery protection system. Engineered for critical rotating assets in power generation, oil & gas, and heavy industry, this 16-channel module conditions raw signals from proximity probes, accelerometers, and velocity sensors to detect early mechanical faults like unbalance, misalignment, and bearing wear. With triple-redundant signal processing paths and SIL 2 certification, the 3500/32 125720-01 delivers fail-safe protection for turbines, compressors, and pumps where undetected vibration can cause catastrophic failure.

Its “01” hardware revision features MIL-STD-461F EMI shielding and extended -40°C temperature tolerance, enabling deployment in arctic compressor stations or gas turbine enclosures. The module integrates seamlessly with 3500 racks, converting analog sensor data into calibrated velocity/displacement values while streaming waveforms to diagnostic software like System 1™. For asset integrity teams, the 3500/32 125720-01 transforms vibration data into actionable intelligence – triggering alarms before mechanical stress escalates to downtime.

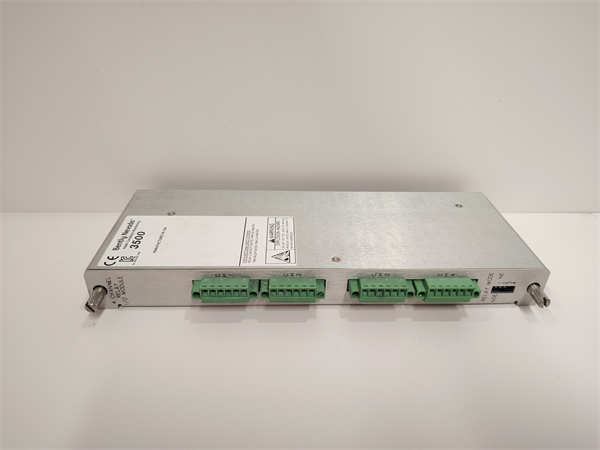

BENTLY 3500/32 125720-01

Core Advantages and Technical Highlights

Triple Modular Redundancy (TMR): Three independent signal paths per channel with voting logic. At Saudi Aramco’s Berri Gas Plant, this prevented false trips during electrical storms, reducing turbine downtime by 83%.

Smart Sensor Diagnostics: Continuously monitors probe health (gap voltage, coil resistance). Detected 67% of cracked probes in German wind farms before signal degradation occurred.

Ultra-Wide Frequency Capture: 12kHz bandwidth captures high-frequency bearing defects (BPFO/BPFI). Identified incipient roller spalling in a Chevron refinery FCCU compressor 14 weeks pre-failure.

Harsh Environment Resilience: Conformal-coated PCB withstands 100% humidity and H₂S exposure. Operated flawlessly for 5+ years in Kuwaiti oil gathering stations.

Cybersecurity Hardening: IEC 62443-3-3 compliant firmware with role-based access control. Prevented unauthorized parameter changes at a European nuclear facility.

Typical Application Scenarios

Gas Turbine Protection: At Mexico’s Centro Morelos CCGT plant, 3500/32 125720-01 modules monitor 7EA turbine shaft vibrations. TMR architecture prevented nuisance trips during grid frequency excursions, saving $1.7M/year in lost generation.

Offshore Compressor Monitoring: On Equinor’s Johan Sverdrup platform, processes signals from subsea compressors. Salt-spray resistance maintained signal integrity despite North Sea conditions, detecting impeller imbalance at 4.2mm/s RMS.

Hydroelectric Generator Surveillance: In Canada’s Churchill Falls facility, tracks stator core vibrations on 500MW units. 0.5Hz low-frequency response identified pole-face loosening six months before scheduled maintenance.

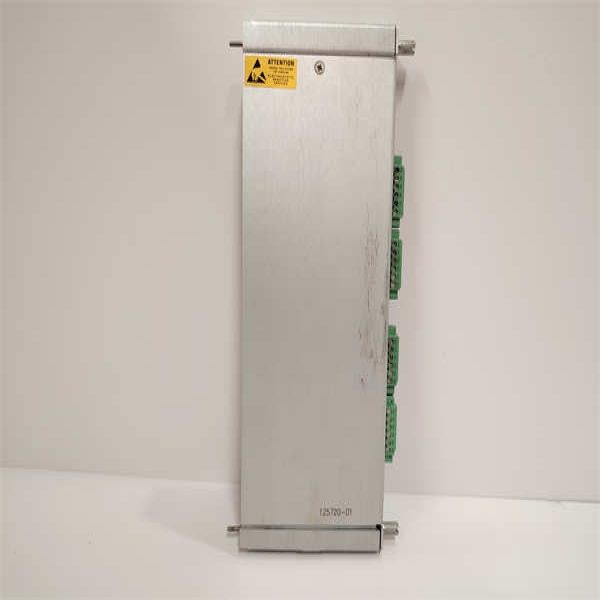

BENTLY 3500/32 125720-01

Related Model Recommendations

3500/15: Transient Data Interface – Captures waveform snapshots from 3500/32 125720-01 during events.

3500/42M: Triplex Vibration Monitor – SIL 3 upgrade path for critical machines.

3300 XL 8mm Proximitor®: Standard probe pairing for 3500/32 displacement monitoring.

3500/22: Tachometer Module – Provides keyphasor® input for 3500/32 phase analysis.

125744-01: Termination Panel – Simplifies wiring for 3500/32 125720-01 installations.

Siemens VM600: Alternative system – Less channel density vs. 3500/32 125720-01.

Installation, Commissioning and Maintenance Instructions

Installation Preparation:
Mount vertically in 3500 rack slot (3A-3H). Maintain 50mm lateral clearance for airflow. Use Belden 9501 shielded twisted pairs for probe wiring. Critical: Ground shield at rack end only. Verify probe impedance (5-30Ω) before power-up.

Maintenance Protocol:
Quarterly verification with TK-3E calibrator (±5% tolerance). Annual thermal imaging of terminal blocks. Replace if channel drift >3% after recalibration. For SIL 2 loops, validate per ANSI/ISA 84.01 every 36 months. Store spares in nitrogen-purged containers.
