Description

The Woodward 5501-470 represents the next evolution in functional safety technology as a SIL 3-certified controller with integrated AI-driven diagnostics for predictive failure prevention. Designed for the most demanding safety instrumented systems (SIS), this triple modular redundant (TMR) controller features Woodward’s patented “Neural Diversity” architecture where three heterogeneous processors (ARM Cortex-R52 + dual RISC cores) execute dissimilar machine-learning models to anticipate failures before they occur. The Woodward 5501-470 delivers deterministic 2ms scan times for critical shutdown logic while continuously analyzing 500+ equipment health parameters through its integrated PHM (Prognostic Health Monitoring) engine. Housed in a pressure-ventilated titanium enclosure with IP69K-rated connectors, it withstands extreme environments from deep-sea drilling platforms to desert mining operations. As the flagship of Woodward’s 5500 series, the 5501-470 redefines safety system availability by transforming reactive trips into predictive interventions.

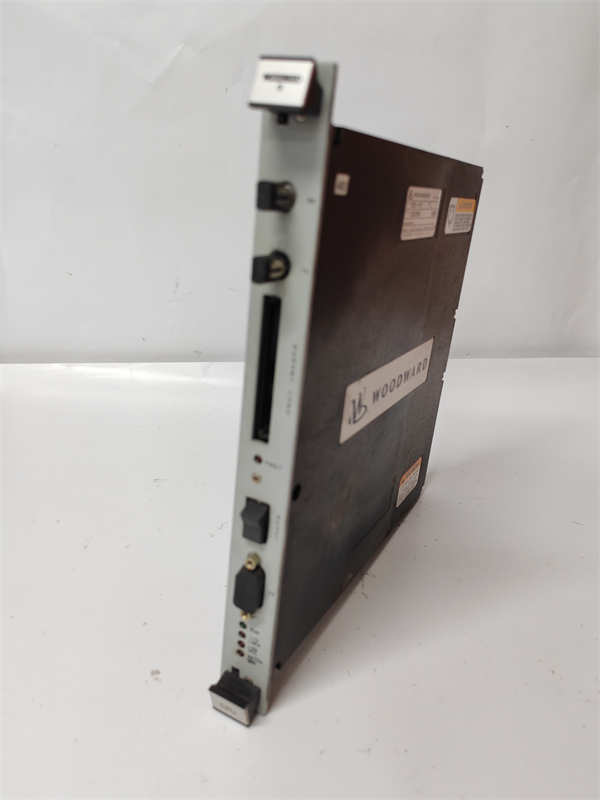

WOODWARD 5501-470

Technical Specifications

Main Features and Advantages

Predictive safety intelligence: Unlike conventional safety controllers, the 5501-470 runs equipment failure models in real-time. Its neural processors detect bearing degradation patterns 6x earlier than FFT-based systems and correlate vibration signatures with process variables to prevent false trips.

Cyber-resilient architecture: Hardware-enforced security zones isolate safety functions from connectivity. OPTICAL-AES port provides air-gapped encrypted comms with physical disconnection sensing. Dynamic attestation verifies firmware integrity every scan cycle.

Extreme environment endurance: Gold-plated diamond-like carbon (DLC) connectors resist sulfuric acid corrosion. Hermetic membrane pressure equalization maintains IP rating at 5,000m depth. Redundant conformal heating enables cold starts at -55°C without external heaters.

Zero-downtime maintenance: Hot-swappable I/O modules and “Live Firmware Patching” allow updates without process interruption. PHM-driven maintenance schedules reduce testing frequency by 50% while maintaining SIL 3 compliance.

Application Field

The Woodward 5501-470 protects critical infrastructure where failure is not an option. In subsea production control, it provides SIL 3 emergency shutdown for Christmas trees at 3,000m depth while predicting hydraulic fluid contamination through vibration harmonics. Hyperscale data centers deploy it for catastrophic failure prevention in backup power systems, where it analyzes bearing wear in 20MW diesel generators months before failure.

Mining operations leverage its ISO 26262 certification for autonomous haulage systems (AHS), executing emergency stops at 240-ton trucks while monitoring structural fatigue in real-time. Hydrogen refueling stations utilize the 5501-470 for leak prevention, where its Zone 0 certification allows direct installation in explosion-prone areas while using PHM to detect compressor valve degradation.

Nuclear facilities employ the controller for reactor coolant pump protection, combining<2ms>

Related Products

Woodward 5501-381: SIL 3 base controller without AI capabilities

Woodward PHM-8AI: 8-channel prognostic health monitoring module

Woodward ProSafe™ 5470: SIL 3 final elements with embedded 5501-470 analytics

Woodward OPTICAL-AES Converter 5499: Secure communication interface

Woodward SCT Predictor Studio: AI model development suite

Woodward 5502-470: High-density I/O expansion chassis

Woodward 5466-470: TSN-enabled secure gateway

Woodward 5471-470: Quad-redundant power system with grid buffering

Installation and Maintenance

Pre-installation preparation: Conduct Woodward’s PHM Site Assessment to calibrate AI models. Initialize neural processors with site-specific failure signatures using encrypted USB dongle. For Zone 0 installations, verify purge system flow rates before power-up. Use diamond-coated drill bits for titanium enclosure machining.

Maintenance recommendations: Retrain neural networks quarterly using SCT Predictor Studio. Perform optical port integrity tests biannually with Woodward OPTICAL-500 tester. Replace pressure-equalization membranes every 5 years in corrosive environments. Utilize PHM-driven testing intervals validated by TÜV SÜD. Never disable dynamic attestation – violations void safety certification.
