Description

The LAM 810-370141-001 is a critical servo motion controller module designed exclusively for LAM Research semiconductor manufacturing equipment, including advanced etch and deposition systems. This high-precision component orchestrates the synchronized movement of robotic wafer handlers, electrostatic chucks (ESCs), and precision stages within vacuum chambers, ensuring nanoscale positioning accuracy during wafer processing. Operating within LAM’s proprietary 810-series platform, the module integrates real-time motion profiling, vibration damping algorithms, and multi-axis coordination to maintain sub-micron tolerances under extreme thermal and electromagnetic conditions.

Engineered for 24/7 semiconductor fab operations, the LAM 810-370141-001 features fault-tolerant architecture with redundant processors and adaptive error correction to minimize particle-generating misalignments. Its deterministic control loops execute at microsecond intervals, coordinating with LAM’s RF generators and gas delivery systems to enable complex process sequences like atomic layer etching (ALE). As a sealed, convection-cooled unit, it withstands corrosive plasma environments while providing extensive diagnostics via LAM’s Equipment Control Software (ECS). This module is indispensable for maintaining yield, uptime, and process repeatability in sub-7nm chip fabrication.

Technical Specifications

Main Features and Advantages

Nanoscale Motion Control: The LAM 810-370141-001 achieves unprecedented precision through adaptive feedforward control and notch filtering, countering stage resonance in high-acceleration moves (>2g). Its 24-bit encoder processing resolves positional deviations below 10 nm – critical for overlay accuracy in multi-patterning processes. Real-time current vector control minimizes torque ripple in linear motors, preventing wafer slippage on ESCs during rapid positioning.

Plasma-Hardened Design: Encapsulated in nitrogen-purged aluminum housing with gold-plated connectors, the module resists arcing and metal migration in RF-saturated environments (up to 13.56 MHz). Conformal-coated PCBs withstand corrosive process gases (Cl₂, CF₄, NH₃). Redundant watchdog timers and error-correcting memory (ECC) ensure continuous operation despite single-event upsets from ionizing radiation.

Predictive Diagnostics: Embedded health monitoring tracks MOSFET junction temperatures, bearing vibration signatures, and encoder drift trends. Anomalies trigger pre-failure alerts in LAM’s SmartFactory® suite, enabling component replacement during scheduled maintenance. Backward compatibility with legacy LAM platforms (e.g., 2300 Kiyo® etchers) simplifies upgrades.

Application Field

The LAM 810-370141-001 is deployed in semiconductor front-end processes requiring atomic-level precision. In LAM VECTOR® plasma etch tools, it controls wafer lift pins and ESC height adjustment during high-aspect-ratio etching of 3D NAND structures. For LAM Kiyo® conductor etch systems, it synchronizes dual wafer handlers for<1>

In deposition equipment like the LAM SOLA® photoresist stripper, the module manages linear robotic arms that shuttle wafers through multiple plasma zones while maintaining alignment within ±0.15°. Its vacuum-compatible design (10⁻⁶ Torr) makes it essential for atomic layer deposition (ALD) chambers where stage positioning accuracy directly impacts film uniformity. Beyond silicon fabs, the controller enables precise motion in flat panel display manufacturing and compound semiconductor processing.

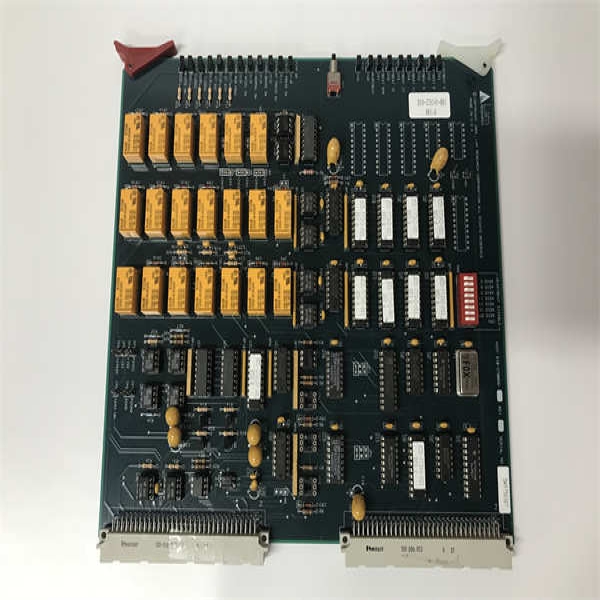

LAM 810-370141-001

Related Products

LAM 810-370142-001: 8-axis motion controller variant for cluster tool architectures.

LAM 0200-20087: Wafer handling robot arm compatible with 810-370141-001.

LAM 810-37032-001: Power distribution module for controller backplane.

LAM 400-140001-001: RF generator synchronized via motion controller timing signals.

LAM 810-37055-002: Encoder interface card for absolute position feedback.

LAM 810-37118-001: Thermal management module for controller cooling.

LAM 600-20001-001: ESC voltage supply controlled by motion profiles.

LAM 0200-75043: Vibration sensor input module for adaptive damping.

Installation and Maintenance

Pre-installation preparation: Verify cleanroom ISO Class 4 conditions before unsealing the LAM 810-370141-001. Ground personnel and tools to prevent ESD damage (>1kV sensitivity). Confirm chassis slot compatibility in LAM equipment racks (typically Slot J7-J9). Pre-load motion parameters using LAM ECS software to avoid manual calibration. Use LAM-certified shielded cables (P/N 810-55021-003) for encoder connections.

Maintenance recommendations: Monitor vibration spectra quarterly via LAM ToolWatch® diagnostics. Replace cooling fans at 20,000-hour intervals. Perform encoder offset calibration after chamber venting. Never hot-swap the 810-370141-001 during plasma processes. Maintain nitrogen purge during storage to prevent moisture ingress. After module replacement, run wafer-less autocollimator alignment routines to verify stage parallelism.
