Description

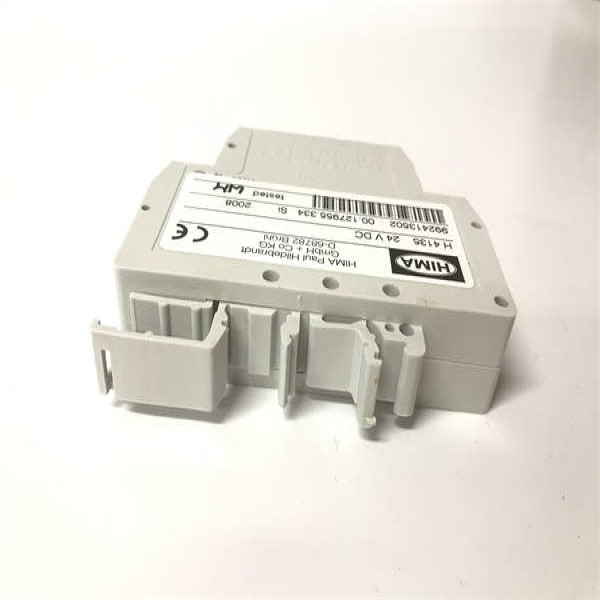

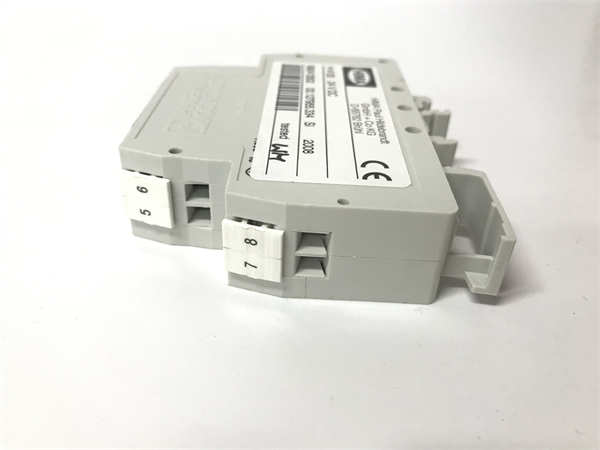

The HIMA H4135 992413502 is a high-availability safety digital input module from HIMA’s H41xx series, engineered for SIL 3 safety instrumented systems in extreme industrial environments. As part of the HIMax® safety platform, this module reliably acquires critical signals from emergency stop buttons, flame detectors, pressure switches, and other safety devices with certified fail-safe operation. The HIMA H4135 992413502 features dual-channel redundancy with cross-monitoring technology, ensuring continuous process protection even during single-component failures. Its galvanically isolated inputs support both dry contacts (NAMUR) and active sensors (24 VDC), providing exceptional flexibility for diverse safety applications.

Designed for mission-critical installations, the module executes continuous diagnostics including wire break detection, short-circuit monitoring, and internal circuit surveillance – automatically triggering safe states upon fault detection. The HIMA H4135 992413502 communicates via PROFIsafe over PROFIBUS DP, enabling seamless integration with distributed safety systems while maintaining < 50ms>

HIMA H4135 992413502

Technical Specifications

Main Features and Advantages

Certified Safety Performance: The HIMA H4135 992413502 exceeds SIL 3 requirements with its dual-processor architecture where input signals are processed in parallel by independent microcontrollers. Continuous comparison ensures only validated signals reach the safety logic solver. Integrated HART communication support enables advanced diagnostics for smart field devices without compromising safety integrity.

Advanced Diagnostics: Every channel features real-time monitoring of wire integrity, contact welding, and sensor health. The module differentiates between critical safety faults (triggering safe shutdown) and non-critical warnings (allowing continued operation). Detailed diagnostics are accessible via HIMA’s Safety Manager software, including timestamped event logs and channel-specific failure histories for predictive maintenance.

Extreme Environment Resilience: Conformal-coated electronics withstand humidity, dust, and corrosive atmospheres. The wide operating temperature range (-40°C to +70°C) ensures reliability in arctic installations or desert compressor stations. Electromagnetic compatibility exceeds industrial standards, maintaining signal integrity near high-power RF sources like radar systems. Hot-swappable design permits module replacement without system shutdown when used in redundant configurations.

Application Field

The HIMA H4135 992413502 secures critical processes in hydrocarbon processing where safety failures could cause catastrophic events. In offshore platforms, it monitors emergency shutdown (ESD) systems, acquiring signals from gas detection arrays, subsea valve position switches, and helicopter deck emergency stops. For refinery furnace safety, it interfaces with burner management systems (BMS) to verify flame presence and validate purge sequences.

In chemical plants, the module enables SIL 3-compliant high-integrity pressure protection systems (HIPPS), reading pressure transmitters to initiate valve closures before vessel overpressure occurs. Power generation facilities deploy it for turbine overspeed protection, acquiring signals from magnetic pickups and vibration switches. The module’s NAMUR input capability makes it ideal for hazardous area applications (Zone 1/2) where intrinsically safe sensors require specialized interfacing.

HIMA H4135 992413502

Related Products

HIMA H4155: SIL 3 digital output module for executing shutdown commands.

HIMA H416x: Analog input modules for safety-critical process variables.

HIMA H50 CPU: Safety controller processing inputs from H4135 992413502.

HIMA H41XX-BD: PROFIBUS interface board for module communication.

HIMA H4116: 16-channel digital input variant for high-density applications.

HIMA PTY 08: Terminal module for field wiring connection.

HIMA H47xx: Communication gateway for HIMax® system integration.

HIMA HIMatrix F3: Next-gen safety controller compatible with H41xx I/O.

HIMA H41XX-PS: Redundant power supply module for I/O racks.

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (HIMax® I/O baseplate) and assign PROFIsafe addresses using HIMA Safety Manager software. Ensure field wiring uses shielded twisted pairs grounded at one end. Check sensor certifications match the HIMA H4135 992413502‘s input specifications (NAMUR/EN 60947-5-6 or IEC 61131-2). Apply permanent labels to all safety-critical channels per ANSI/ISA-S84 standards.

Maintenance recommendations: Perform annual channel validation tests using certified simulators to verify trip setpoints. Monitor module diagnostics monthly via Safety Manager, focusing on “Channel Asymmetry” warnings indicating sensor drift. Replace backup batteries every 5 years to maintain event logging. During module replacement, preserve configuration via memory cartridge transfer. Always verify PROFIsafe consistency checks after firmware updates. Maintain environmental seals on terminal blocks in corrosive atmospheres.
