Description

The ABB DSAI 130A 3BSE018292R1 is a high-density analog input module designed for ABB’s flagship Symphony® Plus and 800xA distributed control systems. As part of the S800 I/O family, this 16-channel module excels in precision measurement of 4-20mA signals from critical process instruments like pressure transmitters, temperature sensors, and flow meters. Engineered for SIL 2 applications per IEC 61508, the DSAI 130A incorporates galvanic channel-to-channel isolation (250V AC) and advanced diagnostics to ensure signal integrity in electrically noisy environments. Its dual-slope integrating ADC technology achieves ±0.05% accuracy with automatic drift compensation, maintaining calibration stability over extended periods.

The module supports HART 7 protocol communication via dedicated multiplexer units, enabling bidirectional data exchange with smart field devices without interrupting analog signals. Hot-swappable design allows replacement during operation – a critical feature for continuous processes in power generation and petrochemical plants. The ABB DSAI 130A 3BSE018292R1 integrates seamlessly with ABB’s industrial-grade CI854 communication interface, providing deterministic data transmission to controllers. Its conformal-coated circuitry withstands humidity, dust, and corrosive atmospheres, making it ideal for harsh installations like offshore platforms and pulp mills where measurement reliability directly impacts safety and efficiency.

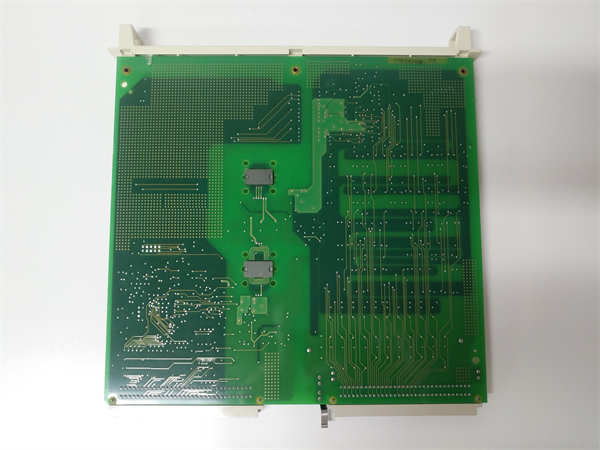

ABB DSAI 130A 3BSE018292R1

Technical Specifications

Main Features and Advantages

Precision Signal Conditioning: The ABB DSAI 130A utilizes proprietary auto-zeroing technology to eliminate offset drift across its operating temperature range. Each channel features independent sigma-delta ADC conversion with programmable digital filtering (1-32 Hz cutoff), rejecting electromagnetic interference from VFDs and switching equipment. Continuous lead resistance compensation ensures accurate 4-20mA measurement even with 600Ω line impedance.

Advanced Diagnostics: Real-time channel health monitoring detects open circuits (>3.8mA), signal saturation (>21.5mA), and HART communication errors. Faults trigger configurable actions in ABB’s Control Builder – from operator alerts to safety interlocks. The module logs calibration dates and service history in non-volatile memory, simplifying compliance audits.

HART Integration: When paired with ABB’s HART multiplexer (S800 HT3S), the module enables simultaneous analog measurement and digital HART communication. This allows remote device configuration, diagnostics retrieval (e.g., Rosemount transmitter health reports), and multivariable access without separate wiring. Hot-swap capability ensures zero process disruption during module replacement.

Application Field

The ABB DSAI 130A 3BSE018292R1 is indispensable in continuous process industries requiring high-integrity measurements. In combined-cycle power plants, it monitors feedwater flow, steam header pressure, and turbine bearing temperatures for performance optimization and SIL 2 safety interlocks. Petrochemical refineries deploy it for reactor inlet/outlet pressure monitoring, where signal drift could trigger false shutdowns costing >$1M/hour.

For water treatment facilities, the module acquires filter differential pressure and chemical dosing rates with ±0.05% accuracy essential for regulatory compliance. In offshore oil platforms, its galvanic isolation prevents ground loops in cathodic protection systems. The HART capability enables predictive maintenance – detecting diaphragm fatigue in level transmitters before failures occur.

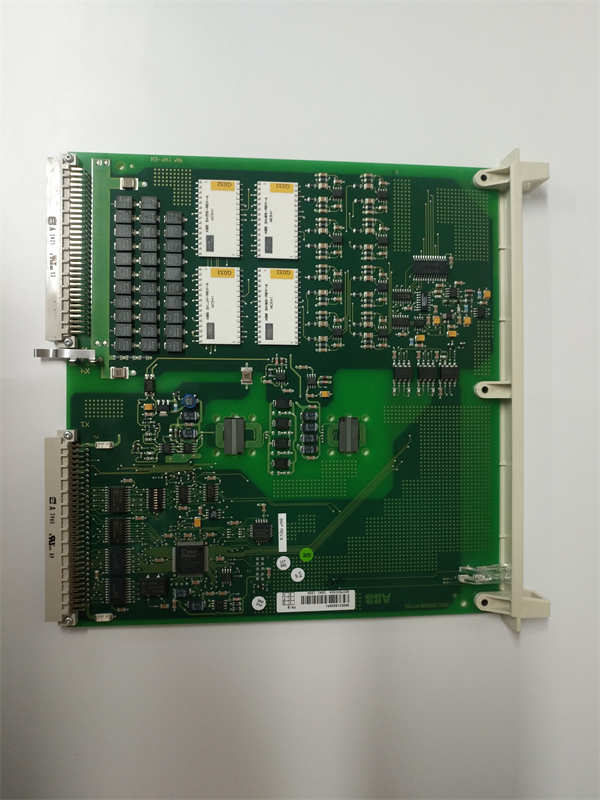

ABB DSAI 130A 3BSE018292R1

Related Products

S800 HT3S: HART multiplexer unit for DSAI 130A communication

CI854: PROFIBUS communication interface linking I/O to controllers

TAI 130: Thermocouple input module for temperature monitoring

DSAO 110A: Analog output module for valve/actuator control

SD821: Power supply module for S800 I/O racks

KLP 10: Redundant processor executing control logic

DSDI 110A: Digital input module for contact status monitoring

S800 LA01: Baseplate for mounting DSAI 130A modules

3BSE008514R1: Terminal unit for field wiring

Installation and Maintenance

Pre-installation preparation: Verify S800 rack compatibility (series C or later). Assign unique hardware addresses via rotary switches. Use twisted-pair shielded cables (Belden 8761 or equivalent) grounded at one end. Configure HART multiplexer addressing before power-up. Perform loop checks with precision current calibrators to validate all 16 channels.

Maintenance recommendations: Calibrate connected transmitters biannually; verify module accuracy annually using 0.1% reference sources. Monitor “Signal Quality” diagnostics in Control Builder weekly. Replace modules showing persistent “ADC Error” flags. Clean terminal contacts with isopropyl alcohol during outages. Update firmware during planned maintenance using Control Builder. Maintain spare DSAI 130A modules pre-configured with latest firmware.
