Description

The ABB XVC770BE102 3BHE021083R0102 is an industrial-grade Ethernet Communication Processor Module engineered for ABB’s AC 800M high-availability control platform. Serving as the backbone for real-time data exchange in distributed control systems (DCS), this module seamlessly integrates controllers, HMI stations, and enterprise networks using deterministic industrial protocols. Designed for critical infrastructure applications, it operates within ABB’s hot-swappable, fault-tolerant architecture, supporting dual-redundant networks with zero packet loss during failover events. The ABB XVC770BE102 3BHE021083R0102 extends legacy system longevity while enabling Industry 4.0 capabilities through native OPC UA Pub/Sub support and IEC 61850 compliance.

Ruggedized for extreme environments, this module maintains operational integrity from arctic temperatures (-40°C) to desert heat (+70°C), with conformal-coated circuitry resisting humidity, dust, and chemical exposure. Its integrated cybersecurity suite features hardware-enforced firewall rules, VLAN segmentation, and role-based access control – essential for protecting OT networks in energy and process industries. The ABB XVC770BE102 3BHE021083R0102 reduces integration complexity through single-engineering configuration within ABB’s System 800xA, delivering 40% faster commissioning versus third-party solutions.

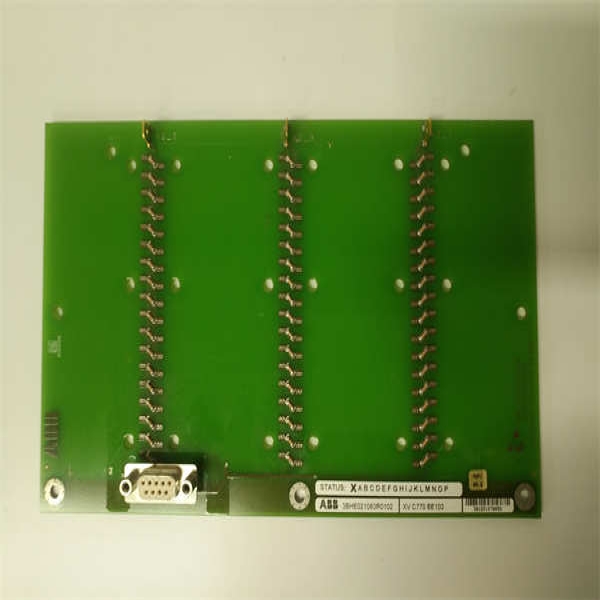

ABB XVC770BE102 3BHE021083R0102

Technical Specifications

Main Features and Advantages

Deterministic Performance: The ABB XVC770BE102 3BHE021083R0102 achieves sub-500μs cycle times with hardware-accelerated protocol processing, ensuring precise synchronization for grid protection relays and turbine control. Dual independent Ethernet controllers eliminate single-point failures, while IEEE 1588 Precision Time Protocol (PTP) synchronizes devices within ±1μs.

Cybersecurity by Design: Integrated Trusted Platform Module (TPM) enforces secure boot and firmware validation. Configurable IP/MAC filters, port security, and VLAN tagging comply with IEC 62443-3-3 SL2 requirements. Audit trails track configuration changes with cryptographic signatures for regulatory compliance.

Extreme Environment Resilience: Aluminum heatsink and conformal coating protect against condensation and corrosive atmospheres. Operates at full performance from -40°C to +70°C without derating. High-vibration resistance (5g continuous) suits mobile installations like offshore rigs.

Lifecycle Efficiency: Backward-compatible with Advant Controller 450 and Symphony Harmony DCS. Hot-swap capability enables module replacement without system shutdown. Predictive diagnostics monitor component degradation, triggering maintenance alerts before failure.

Application Field

The ABB XVC770BE102 3BHE021083R0102 dominates critical infrastructure sectors requiring uncompromising reliability:

Power Generation: Synchronizes governor controls and excitation systems across hydro/thermal plants while ensuring NERC CIP compliance. Timestamps fault records via IEEE 1588 for grid disturbance analysis.

Oil & Gas: Integrates subsea control modules with topside DCS on FPSOs using redundant ring architectures. Maintains SIL3 safety functions during network reconfiguration in explosive atmospheres (ATEX Zone 1).

Pharmaceuticals: Secures batch data transfer between isolator systems and MES while maintaining 21 CFR Part 11 electronic signatures. VLAN segmentation isolates cleanroom equipment networks.

Water Management: Implements IEC 61850 GOOSE messaging for rapid floodgate control across pumping stations. Survives submersion (IP20) in flood-prone substations.

Mining: Enables remote operation of autonomous haulage systems (AHS) through dust-impervious design. Withstands 2g constant vibration in crusher control rooms.

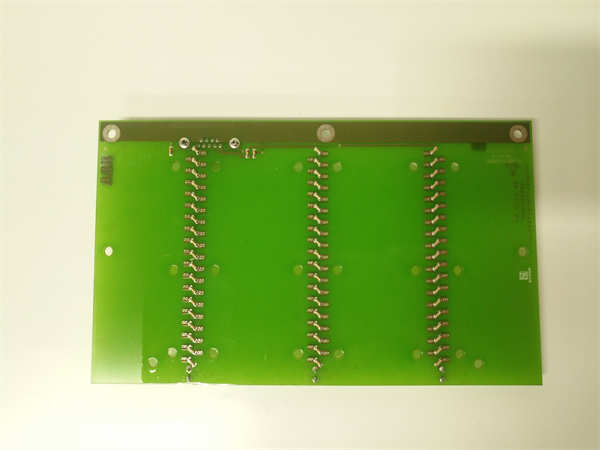

ABB XVC770BE102 3BHE021083R0102

Related Products

PM864AK1: Primary AC 800M CPU with dual-core processor for complex control

SD834: Safety-certified I/O module for SIL3 shutdown systems

CI854A: Profibus DP interface for legacy device integration

XVC768AE: Compact Ethernet module for cabinet-free installations

PP875: 24VDC redundant power supply with 40ms buffering

TA527: Hot-swap termination assembly for live maintenance

3BSE018105R1: Redundant baseplate with mechanical keying

COM-001: Media converter for copper-to-fiber network extension

SA801F: Security appliance for OT network monitoring

Installation and Maintenance

Pre-installation preparation: Verify System 800xA engineering station compatibility (v6.1+ required). Disable controller power and discharge static using grounded wrist straps before handling the ABB XVC770BE102 3BHE021083R0102. Prepare MAC address labels for network port identification. Ensure DIN-rail clearance ≥80mm below module for heat dissipation.

Maintenance recommendations: Update firmware biannually via Control Builder M using signed packages only. Monitor junction temperature via OPC tag “DevTemp”; initiate forced cooling if >75°C. Clean air vents quarterly using ionized air (max 15psi). Maintain configuration backups on write-protected SD cards. Validate redundancy by physically disconnecting primary cable during planned outages.
