Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | AC389AE01 HIEE300888R0001 |
| Manufacturer | ABB |
| Product Category | High-Integrity Triple-Modular Redundant (TMR) CPU Module |
| Processor Architecture | 32-bit RISC (200 MHz) with Hardware Voting Logic |
| Memory | 32 MB SDRAM (User Program) + 8 MB Flash |
| Safety Certification | IEC 61508 SIL 3, IEC 61131-2 |
| Fault Tolerance | 2oo3 (2-out-of-3) Voting for All I/O & Processing |
| MTBF | > 150,000 hours (FMEDA Verified) |
| Backplane Interface | ABB TMR Bus (50 Mbps) |
| Watchdog Timer | Triple-Redundant Independent Circuits |
| Operating Temperature | -40°C to +70°C (Conformal Coated) |
| Power Consumption | 5.1 W @ 5 VDC (Typical) |
| Vibration Resistance | 5 g (10-150 Hz, IEC 60068-2-6) |
| Certifications | ATEX, UL Class I Div 2, DNV GL, CE |
Product Introduction
The ABB AC389AE01 HIEE300888R0001 is the core processing unit of ABB’s Advant® Controller 800F Safety TMR system, designed for ultra-critical industrial applications where zero tolerance for failure exists. This triple-redundant CPU module executes identical control logic across three parallel processor channels, performing continuous hardware-based voting to detect and isolate faults within microseconds. As part of ABB’s flagship safety solution, the AC389AE01 enables continuous operation even with two concurrent failures, making it indispensable for emergency shutdown (ESD), fire & gas (F&G), and turbine control systems in hazardous environments.
Embedded with ABB’s proprietary fault-containment architecture, the ABB AC389AE01 HIEE300888R0001 provides deterministic response times as low as 15 ms for SIL 3 functions. Its technical positioning bridges high-availability process control and functional safety, allowing seamless integration with ABB’s Symphony® Plus DCS while meeting nuclear-grade reliability standards. The module serves as the brain of safety instrumented systems (SIS), converting sensor data into failsafe actions while providing comprehensive diagnostics through Control Builder F engineering tools.

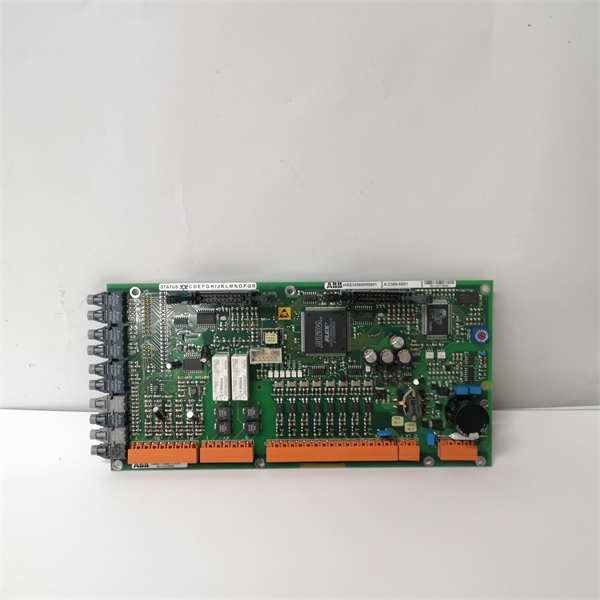

ABB AC389AE01 HIEE300888R0001
Core Advantages and Technical Highlights
Ultimate Fault Tolerance: The AC389AE01 HIEE300888R0001 implements synchronous 2oo3 voting at hardware level across processors, memory, and I/O drivers. This eliminates single-point failures and ensures<1>
Deterministic Safety Response: With three independent clock domains synchronized within 100 ns, the module guarantees identical execution timing across all channels. Safety-critical functions execute within a dedicated 15 ms task cycle, backed by triple watchdogs that trigger safe shutdown on divergence.
Cyber-Resilient Design: Hardware-enforced memory partitioning prevents unauthorized code execution. Secure boot with cryptographic signature verification thwarts firmware tampering. All firmware updates require physical keys.
Extreme Environment Readiness: Conformal coating protects against corrosive atmospheres (H₂S, salt mist). Extended temperature operation (-40°C to +70°C) ensures reliability in Arctic drilling or desert LNG plants.
Lifecycle Management: Non-volatile memory stores configuration and audit trails for 25+ years. Hot-swappable design allows module replacement without process interruption when using redundant pairs.
Typical Application Scenarios
The ABB AC389AE01 HIEE300888R0001 dominates safety-critical installations:
Offshore Oil Platforms: Manages ESD valves and subsea blowout preventers (BOPs) where communication blackouts could cause catastrophic spills.
Gas Compression Stations: Controls turbine overspeed protection (ISO 21789) and fire suppression systems in unmanned facilities.
Nuclear Power: Provides reactor trip logic (IEEE 603 Class 1E) with radiation-hardened components.
Chemical Plants: Executes burner management systems (BMS) for reformers and hazardous vapor control.
Hydrogen Production: Safeguards electrolyzer shutdown sequences during pressure excursions.
In liquefied natural gas (LNG) trains, the AC389AE01 HIEE300888R0001 orchestrates cascading shutdowns across cryogenic pumps and compressors, preventing brittle fracture incidents. Its TMR architecture is mandatory for applications where >$1M/hour downtime costs occur.
ABB AC389AE01 HIEE300888R0001
Related Model Recommendations
AI825: TMR Analog Input Module (SIL 3) – Interfaces with safety sensors for the AC389AE01.
DI810: Triple-Redundant Digital Input Module – Provides failsafe status signals.
SAI23: Safety Application Interface – Links AC389AE01 to ABB Symphony® Plus DCS.
CP400-T: TMR Control Panel – Local HMI for safety system diagnostics.
DSQC679: Industrial Ethernet Switch – Secure communication backbone.
CI873: Profibus TMR Interface – Connects safety field devices.
PM856: Non-safety CPU – For integrated basic process control (BPCS) with AC389AE01.
TB811: Termination Unit – For reliable I/O wiring.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: De-energize the rack. Verify ESD precautions (wrist strap, grounded workstation). Use only ABB-recommended backplane slots (positions 1-3 for TMR CPUs). Ambient humidity must be<85>
Maintenance Protocol: Monitor “Channel Health” indicators via Control Builder F monthly. Replace modules showing >2 mismatch events/day. Perform full diagnostic test (FDT) annually using ABB S+ Test Manager. Always maintain firmware at latest certified revision. For hot-swap replacement: (1) Insert new module in standby slot, (2) Activate synchronization, (3) Verify vote alignment >30 min, (4) Remove faulty module.
