The ABB UFC760BE42 3BHE004573R1042 is a high-reliability PROFIBUS DP-V1 interface module for ABB’s S800 I/O and AC 800M controller platforms. Engineered for mission-critical industrial networks, this module bridges ABB’s control systems with PROFIBUS field devices (sensors, actuators, drives) while ensuring deterministic data exchange. As part of ABB’s 800xA DCS ecosystem, the UFC760BE42 3BHE004573R1042 supports advanced PROFIBUS features like non-cyclic data access, alarm handling, and slave diagnostics, enabling real-time asset health monitoring.

Designed for harsh environments, the module integrates seamlessly into redundant architectures, providing continuous communication even during partial network failures. Its technical value lies in simplifying legacy system integration—allowing plants to extend the lifecycle of existing PROFIBUS assets while migrating to modern DCS infrastructure. The ABB UFC760BE42 3BHE004573R1042 serves as a communication backbone in industries where interoperability and uptime are non-negotiable.

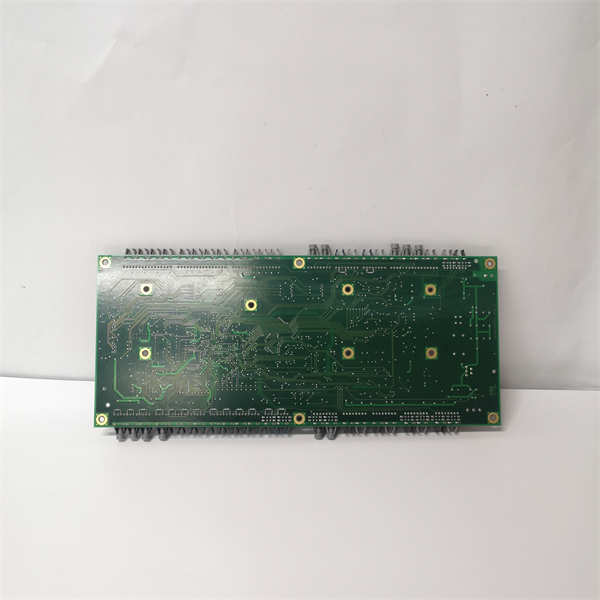

ABB UFC760BE42 3BHE004573R1042

Core Advantages and Technical Highlights

Dual-Channel Redundancy:
Supports media redundancy protocols (MRP) for ring topologies, enabling <200>

Advanced Diagnostics:
Real-time monitoring of:

Slave device status

Telegram error rates

Signal quality degradation

Configuration mismatches
Faults trigger detailed alarms in Control Builder M for rapid troubleshooting.

Cybersecurity Hardened:
Hardware-enforced protocol filtering blocks unauthorized PROFIBUS commands. Firmware signature verification prevents tampering. Configurable whitelists restrict slave access.

Deterministic Performance:
Guaranteed latency ≤1 ms per slave cycle, critical for motion control applications. Automatic baud rate detection eliminates manual configuration errors.

Extreme Environment Resilience:
Conformal coated PCB withstands 95% humidity and corrosive atmospheres. Vibration resistance (5g @ 15–150 Hz) ensures stability in compressor/pump monitoring.

Typical Application Scenarios

Oil & Gas: Integrates subsea safety valves and multiphase flow meters into 800xA DCS for offshore platforms.

Chemical Processing: Connects reactor agitator drives and SIL 2-certified gas detectors in batch control systems.

Power Generation: Interfaces turbine governor systems and exciter controls with ABB Symphony® Plus.

Water Treatment: Monitors pump VFDs and chlorine analyzers across distributed treatment plants.

Mining: Enables remote control of conveyor drives and crusher motors in hazardous areas (ATEX Zone 2).

In pharmaceutical facilities, the UFC760BE42 3BHE004573R1042 ensures GMP compliance by providing audit trails for sterilizer valve sequencing and cleanroom pressure monitoring.

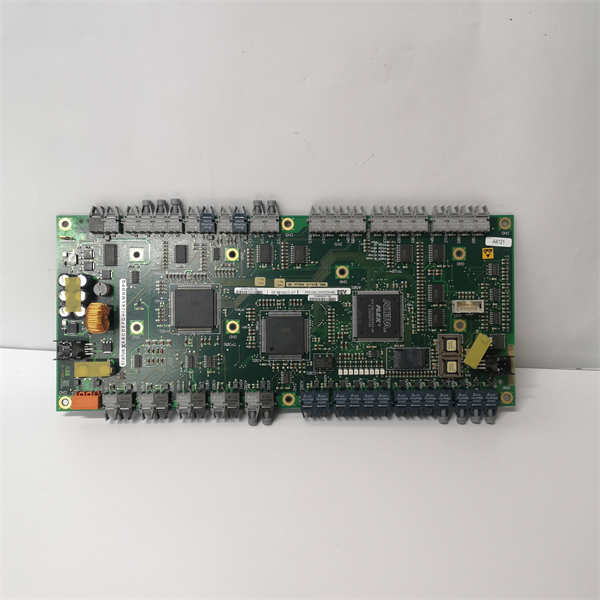

ABB UFC760BE42 3BHE004573R1042

Related Model Recommendations

CI871: PROFIBUS DP master module for AC 800M controllers (direct counterpart)

UFC762AE01: Redundant PROFIBUS interface carrier unit

SD822: Digital input module for S800 I/O rack integration

PM864A/K: AC 800M controller pairing with UFC760BE42

TA527: PROFIBUS termination and surge protection kit

CP635-T: Operator panel for network diagnostics

DSQC679: Industrial Ethernet switch for control backbone

Installation, Commissioning and Maintenance Instructions

Installation:

De-energize S800 rack. Ground ESD wrist strap.

Insert into communication slot (positions 1-4 per rack). Torque screws to 0.6 Nm.

Connect PROFIBUS via shielded cable (max 100m per segment). Use 220Ω terminators.

Apply 24VDC power; verify green RUN LED.

Commissioning:

Auto-scan slaves via Control Builder M

Assign device addresses (1–124)

Configure watchdog timers per slave criticality

Validate redundancy switchover (if applicable)

Maintenance:

Quarterly: Check connector integrity and cable shielding

Annually: Verify signal quality with oscilloscope (≥1.5V amplitude)

Replace if error rate exceeds 10⁻⁶ telegrams/second

Update firmware during planned shutdowns
