Description

The ABB UFC762AE101 3BHE006412R0101 is a high-performance PROFIBUS DP Interface Module designed for seamless integration within ABB’s AC 800M distributed control system (DCS) platform. As a critical communication gateway, this module enables robust field-level connectivity between the controller and PROFIBUS DP slave devices such as sensors, actuators, and remote I/O stations. The UFC762AE101 supports high-speed data exchange (up to 12 Mbps) and advanced diagnostics, ensuring deterministic control in complex industrial automation architectures. Engineered for mission-critical applications, it provides galvanic isolation, redundant communication options, and hot-swappable capabilities to minimize system downtime. The ABB UFC762AE101 serves as a backbone for real-time data acquisition and control in process automation, enhancing operational visibility and system resilience. Its compatibility with the AC 800M series allows scalable deployments from standalone machines to plant-wide DCS networks, solidifying ABB’s leadership in industrial digitalization solutions.

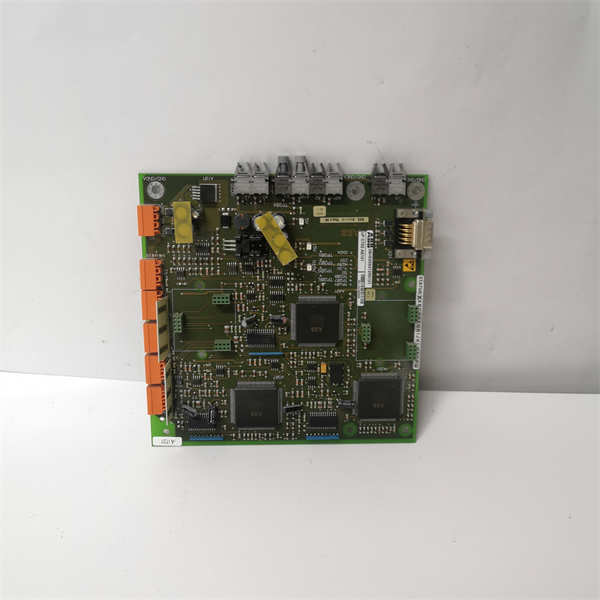

ABB UFC762AE101 3BHE006412R0101

Technical Specifications

Main Features and Advantages

High-Speed Deterministic Communication: The ABB UFC762AE101 ensures cycle times ≤1 ms for 32 devices, critical for real-time control in high-speed manufacturing and process safety systems. Its token-passing protocol guarantees predictable data exchange, eliminating latency-induced production disruptions.

Robust Diagnostics and Redundancy: Integrated self-monitoring detects cable breaks, slave failures, and signal integrity issues. Dual-channel redundancy (with paired modules) enables automatic switchover during faults, achieving >99.999% availability. The hot-swappable design allows maintenance without system shutdown.

Seamless AC 800M Integration: As a native extension of ABB’s DCS, the UFC762AE101 simplifies engineering via Control Builder M configuration tools. Automatic device replacement recognition (plug-and-play) reduces commissioning time by 40%. Galvanic isolation (500V) protects the controller from ground loops and surges in harsh environments like petrochemical plants.

Future-Proof Flexibility: Supports PROFIBUS DP-V1 for cyclic data and acyclic parameterization, enabling integration with legacy and smart devices. Its modular design allows field upgrades without hardware replacement.

Application Field

The ABB UFC762AE101 excels in capital-intensive industries requiring deterministic control and high availability. In oil & gas, it orchestrates safety instrumented systems (SIS) for emergency shutdown valves and compressor control, leveraging its ATEX-certified variants for hazardous zones. Power generation facilities deploy the UFC762AE101 for turbine governor control and boiler management, utilizing its -40°C tolerance in outdoor substations.

For automotive manufacturing, the module synchronizes robotic assembly lines and conveyor systems via real-time PROFIBUS DP networks, minimizing cycle time jitter. In water treatment plants, it interfaces with flow meters and variable frequency drives (VFDs) for pump station control, withstanding high-humidity environments. The ABB UFC762AE101 also enables predictive maintenance in mining by connecting vibration sensors on crushers, transmitting diagnostics to ABB’s Ability™ cloud platform.

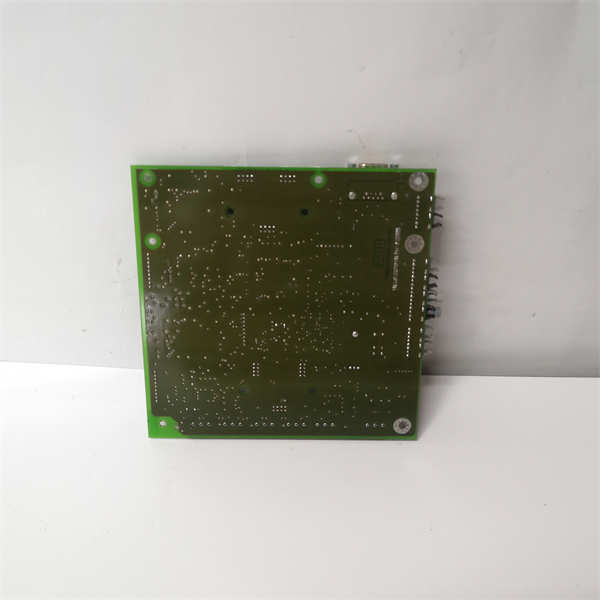

ABB UFC762AE101 3BHE006412R0101

Related Products

UF C721 3BHE014967R0001: Redundant PROFIBUS DP master pair for high-availability systems

CI854A 3BSE018105R1: Ethernet/IP interface module for AC 800M controller integration

SD822 3BSE020587R1: System 800xA operator workstation for centralized monitoring

TB820 3BSE020882R1: Termination board for simplified UFC762AE101 cabling

PM803F 3BDH000530R1: AC 800M controller for logic execution

PP875 3BSE042238R1: Power supply unit for rack backplanes

DSQC679 : PROFIBUS slave I/O module for field device connectivity

Installation and Maintenance

Pre-installation preparation: Verify rack compatibility (e.g., S800 I/O or AC 800M controller racks). Ensure firmware matches Control Builder M project version. Ground the PROFIBUS shield at a single point within the control cabinet. Use ABB-approved terminators (220Ω) at segment endpoints.

Maintenance recommendations: Monitor module status via LED indicators (RUN/BUS/FAULT). Perform annual PROFIBUS signal integrity tests using dedicated diagnostics tools. Replace backup batteries every 5 years. Always disconnect communication cables before hot-swapping the ABB UFC762AE101. Store configuration files offline for rapid recovery.
