Description

The ABB DSAO120A 3BSE018293R1 is a high-integrity digital output module from ABB’s AC 800M series, designed for critical safety and control applications in distributed control systems (DCS). This module provides 16 configurable channels of 24 VDC transistor outputs, engineered for SIL 3 (Safety Integrity Level) compliance per IEC 61508 standards. As part of ABB’s 800xA automation platform, the ABB DSAO120A 3BSE018293R1 ensures deterministic response times below 1 ms for emergency shutdown (ESD) systems, fire & gas detection, and process interlocks. Its galvanic isolation (1,500 VAC) between channels and backplane prevents fault propagation, while redundant power options support high-availability architectures. The module’s ruggedized design operates reliably in extreme industrial environments (–40°C to +70°C), making it indispensable for oil refineries, power plants, and chemical processing facilities where fail-safe operation is non-negotiable.

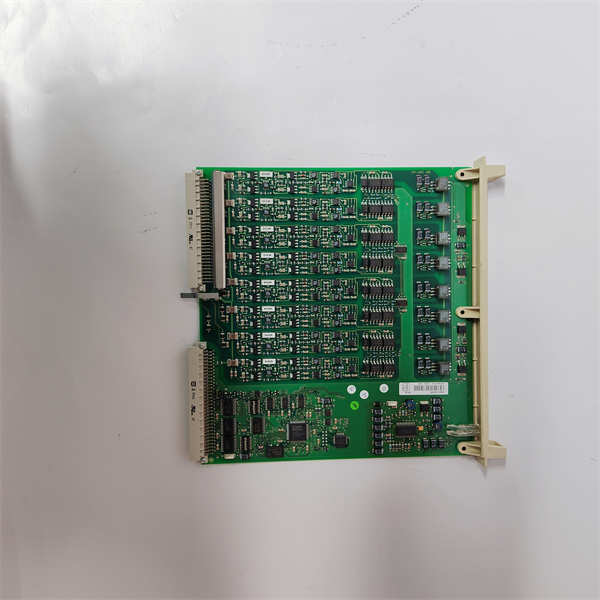

ABB DSAO120A 3BSE018293R1

Technical Specifications

Main Features and Advantages

Safety-Critical Performance:
The ABB DSAO120A 3BSE018293R1 achieves SIL 3 compliance through hardware diagnostics like output current monitoring and open-load detection. Each channel includes pulse testing to verify output circuit integrity without disrupting connected loads – essential for fire/smoke damper control in life-safety systems.

High Availability Design:
Dual redundant power inputs (24 VDC ±10%) and hot-swap capability allow module replacement during operation. The ABB DSAO120A 3BSE018293R1 integrates with ABB’s redundancy software for automatic switchover during faults, achieving 99.999% uptime. Backplane communications use CRC error checking to prevent data corruption.

Deployment Flexibility:
Engineers configure outputs via Control Builder M software for diverse modes: pulse, latching, or PWM control. Each channel’s status is visible via LED indicators, while integrated surge suppression (IEC 61000-4-5) protects against voltage transients. The module’s conformal-coated PCB resists corrosive atmospheres in offshore platforms.

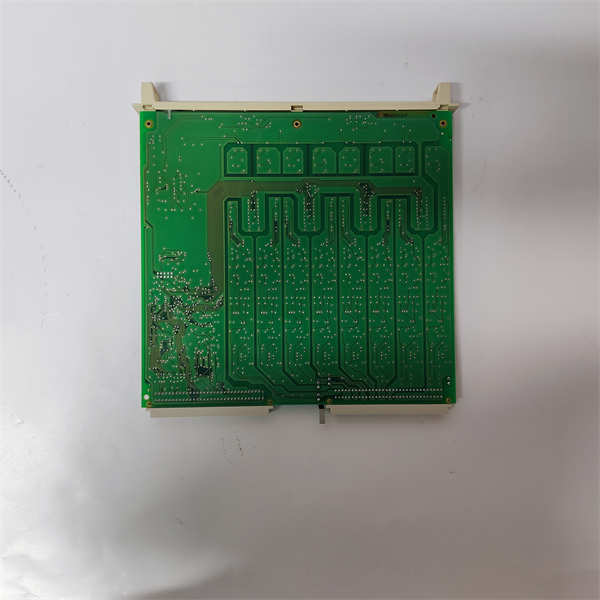

ABB DSAO120A 3BSE018293R1

Application Field

The ABB DSAO120A 3BSE018293R1 dominates in safety-critical and high-availability scenarios:

Oil & Gas: Triggers ESD valves on wellheads during overpressure events.

Power Generation: Controls turbine lube oil pumps during emergency trips.

Chemical Plants: Activates emergency venting systems for reactor over-temperature.

Pharmaceuticals: Manages cleanroom pressure interlocks in GMP facilities.

Water Treatment: Operates floodgate actuators during storm surge alerts.
Its deterministic response ensures <100>

Related Products

ABB DSAI130A: Analog input module for SIL 3 sensor integration.

ABB DSDO120A: Digital output sister module with lower current rating.

ABB CI854: Communication interface for Profibus/Modbus.

ABB TP854: Operator panel for local module diagnostics.

ABB SD822: Safety controller for logic processing.

ABB RPBA01: Baseplate for mounting S800 I/O modules.

Installation and Maintenance

Pre-installation preparation: Verify 24 VDC power stability (±5%) and ground integrity (≤1 Ω). Configure channel properties in Control Builder M before inserting the ABB DSAO120A 3BSE018293R1 into an S800 rack. Use ESD-safe handling tools.

Maintenance recommendations: Monitor channel load rates monthly via 800xA diagnostics (target ≤80% capacity). Annually clean terminal contacts with fiberglass brush and verify torque (0.6 Nm). Replace modules after 15 years or 500,000 operational cycles. Always de-energize the backplane before servicing the ABB DSAO120A 3BSE018293R1.
