Description

The GE ITM11A8XJ036645 is a high-availability Turbine Interface Module from GE’s Mark™ VIe Speedtronic™ series, engineered for mission-critical protection and monitoring of gas/steam turbines in power generation and industrial applications. As part of GE’s TMR (Triple Modular Redundant) safety platform, this module integrates three independent control channels with hardware-based voting logic to achieve SIL 3 (IEC 61508) compliance for anti-overspeed, vibration, and temperature protection systems. The GE ITM11A8XJ036645 processes signals from keyphasors, RTDs, thermocouples, and vibration sensors with 16-bit resolution, enabling real-time turbine health assessment through GE’s ToolboxST™ diagnostic software. Designed for extreme environments, it operates at -40°C to +70°C with 5g vibration immunity, making it indispensable for combined-cycle plants, offshore platforms, and cogeneration facilities where turbine reliability directly impacts grid stability.

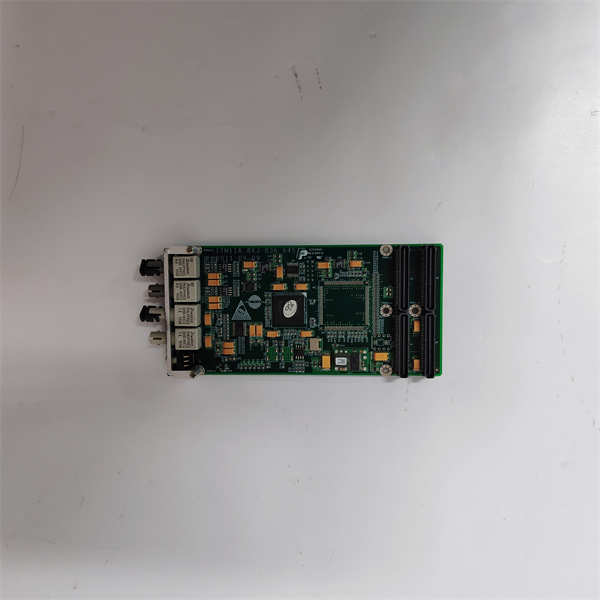

GE ITM11A8XJ036645

Technical Specifications

Main Features and Advantages

Ultra-Reliable Protection:
Implements hardware-based voting across three independent processor channels, detecting sensor failures or signal discrepancies within 15 ms. Pre-configured algorithms for overspeed protection (>109% trip), bearing temperature gradients, and shaft eccentricity with SIL 3-certified reliability.

Advanced Diagnostics:
Continuous validation of signal integrity through cross-channel comparison. Integrated Sequence of Events (SOE) recording with 0.1 ms timestamp resolution captures 512 fault events. Vibration waveform capture (up to 12 kHz) enables early detection of blade resonance or imbalance.

Cybersecurity & Integration:
Firmware signed with SHA-256 encryption and secure boot capability. Supports IEC 61850-8-1 GOOSE messaging for grid synchronization. The GE ITM11A8XJ036645 integrates natively with GE’s Cimplicity™ HMI for real-time turbine performance visualization.

Maintenance Optimization:
Hot-swappable design enables replacement without turbine shutdown. Automatic drift compensation for RTD/thermocouple inputs eliminates manual calibration. Health monitoring LEDs indicate channel degradation before failure.

Application Field

The GE ITM11A8XJ036645 is critical in:

Power Generation Plants: Governs 100-500MW steam turbines during load rejection events

Offshore Compression: Monitors gas turbine-driven compressors on LNG carriers

Industrial Cogeneration: Protects backpressure turbines in paper mills

Peaking Power Facilities: Manages fast-start gas turbines (0-100% in<10>

Geothermal Plants: Withstands corrosive H₂S environments in turbine monitoring

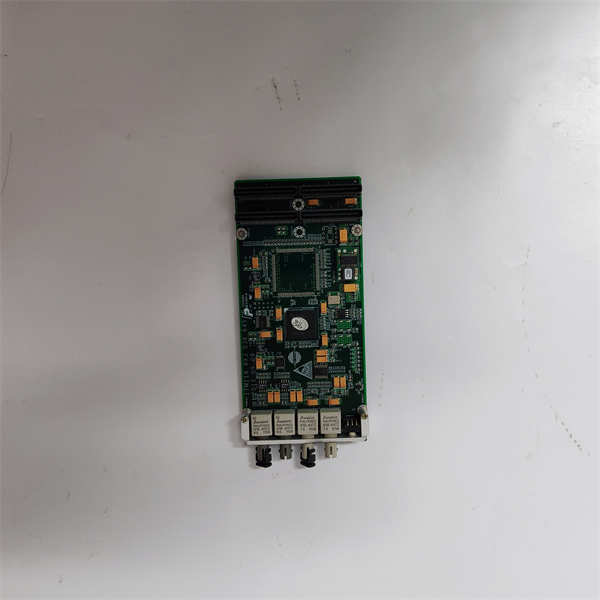

GE ITM11A8XJ036645

Related Products

GE IS215ACLEH1A: Analog I/O pack for signal conditioning

GE HWA143-TDM-PMC-V20: Turbine control processor for ITM11A8XJ036645 integration

GE DS200DCFBG1B: Communication gateway for DCS interface

GE TKIS-M-02: Keyphasor interface module

GE EX2100e: Excitation system for synchronized control

GE VCM4: Vibration monitoring module

Installation and Maintenance

Pre-installation preparation: Verify cabinet grounding integrity (<0>GE ITM11A8XJ036645. Use shielded twisted pairs for analog signals.

Maintenance recommendations: Perform monthly voter logic tests via diagnostic software. Annually clean connectors with electronic-grade contact cleaner. Calibrate analog inputs every 24 months using NIST-traceable sources. Replace cooling fans after 60,000 operational hours in the GE ITM11A8XJ036645.
