The ABB GFD563A102 3BHE046836R0102 is an advanced FOUNDATION Fieldbus HSE (High-Speed Ethernet) interface module for ABB’s S800 I/O system, designed to bridge high-level control networks with field-level FOUNDATION Fieldbus H1 segments in process automation. This ruggedized module enables deterministic data exchange between ABB’s 800xA DCS and intelligent field devices (transmitters, positioners) while supporting full redundancy for mission-critical applications. The GFD563A102 operates as a Fieldbus Gateway, aggregating up to 32 H1 segments (256 devices) over a single 100 Mbps Ethernet backbone, reducing cabling costs by 70% in large-scale plants like refineries and chemical complexes. Its dual-power supply inputs and hot-swappable design ensure 99.999% availability, while integrated cybersecurity features (IEC 62443 compliance) protect against unauthorized access in IIoT-enabled environments.
Engineered for extreme conditions, the module operates at -25°C to +70°C with conformal-coated PCBs, surviving vibration (2g @ 15-150Hz) and humidity (5-95% non-condensing). The ABB GFD563A102 3BHE046836R0102 uniquely combines device diagnostics, control-in-field capability, and asset management data routing, allowing real-time valve health monitoring and closed-loop control execution directly at the field level. For brownfield expansions, it integrates legacy H1 systems into modern Ethernet architectures without re-engineering.

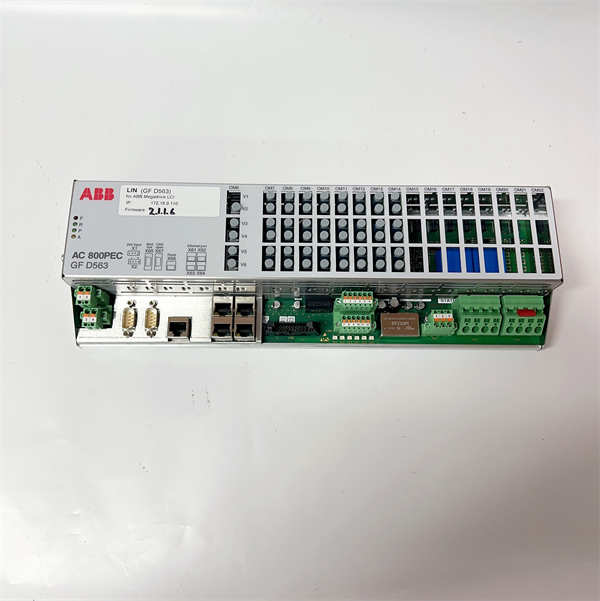

ABB GFD563A102 3BHE046836R0102
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | GFD563A102 3BHE046836R0102 |
| Manufacturer | ABB |
| Product Type | FOUNDATION Fieldbus HSE Gateway |
| H1 Ports | 4x (expandable to 32 via linking devices) |
| Max Field Devices | 256 (32 per H1 segment) |
| Ethernet Interface | 2x 100BASE-TX (redundant) |
| Protocols | FF HSE, FF H1 (31.25 kbps), TCP/IP |
| Cybersecurity | IEC 62443-3-3 SL2, Role-Based Access Control |
| Power Supply | 24V DC dual-redundant (18-32V) |
| Power Consumption | 15W (max) |
| Operating Temperature | -25°C to +70°C |
| Redundancy | Hot-swap module, redundant networks |
| Configuration Tools | Fieldbus Builder, 800xA Engineering |
| MTBF | >300,000 hours |
| Certifications | ATEX Zone 2, SIL 2, DNV GL |
| Dimensions | 218 x 128 x 58 mm |
| Mounting | DIN rail (TS35) |
Main Features and Advantages
Deterministic Control-in-Field: Executes PID loops and interlocks within the GFD563A102’s embedded function blocks, reducing DCS load by 40%. Sub-500ms control cycle synchronization prevents flow/temperature oscillations in reactor trains.
Unified Diagnostics: Consolidates device alerts (pressure transmitter drift, valve stiction) into 800xA asset health reports. Predictive maintenance algorithms analyze H1 diagnostic data to forecast failures 30 days in advance.
Seamless Scalability: Daisy-chaining via HSE backbone supports plant-wide deployments. Automatic device replacement recognition retains configuration when swapping failed instruments.
Robust Cyber Protection: Hardware-enforced user authentication and encrypted communications prevent tampering. Configuration change audits comply with NERC CIP and IEC 62443 standards.
Application Field
The ABB GFD563A102 3BHE046836R0102 excels in large-scale process industries:
Oil & Gas Refineries: Integrates 500+ FF H1 devices (e.g., corrosion monitors, smart valves) into DCS for crude distillation control.
Pharmaceutical Batch Plants: Manages CIP/SIP sequences via field-level control, ensuring FDA 21 CFR Part 11 compliance with electronic signatures.
Chemical Complexes: Coordinates exothermic reactor cooling loops with 200ms response time, leveraging redundant HSE networks for safety interlocks.
Power Generation: Monitors boiler feedwater pH/conductivity FF networks, surviving turbine hall vibrations.
Pulp & Paper: Synchronizes digester temperature zones using control-in-field, eliminating DCS latency.

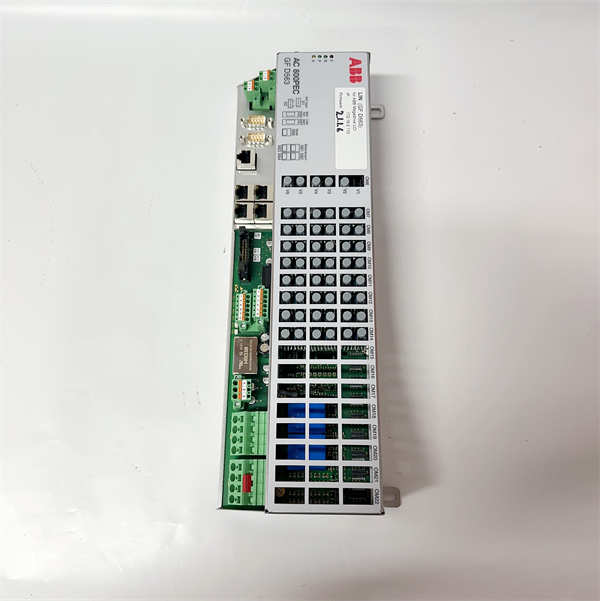

ABB GFD563A102 3BHE046836R0102
Related Products
GFD563A101: Non-redundant HSE gateway variant.
CI871 3BSE056767R1: HSR/PRP redundancy module.
S800 AI845 3BSE009598R1: 8-channel FF H1 analog input.
LD800H 3BSE032394R1: Fieldbus linking device for segment expansion.
UF831 3BSE032400R1: PROFIBUS DP interface module.
CP635 3BSE042240R1: 800xA operator panel.
TA521 3BSE022366R1: Termination assembly for redundant systems.
Fieldbus Builder M3SYS100: Configuration software suite.
Installation and Maintenance
Pre-installation preparation: Verify DIN rail clearance ≥100mm. Configure IP addresses via rotary switches before power-up. Isolate 24V supplies with ≤3% ripple. Pre-load device descriptions (DD/CFF) using Fieldbus Builder.
Maintenance recommendations: Monitor “H1 Segment Utilization” and “Diagnostic Overruns” in 800xA. Replace modules during planned shutdowns using ABB’s hot-swap procedure. Update firmware annually; validate control strategies after updates. Clean air vents quarterly in dusty environments.
