Description

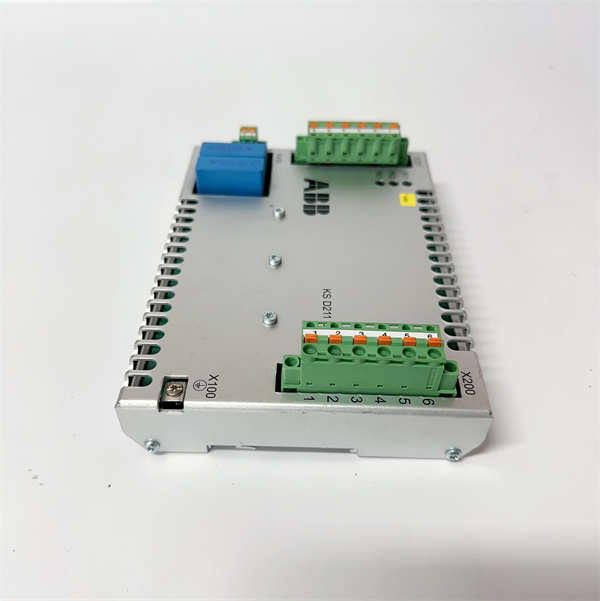

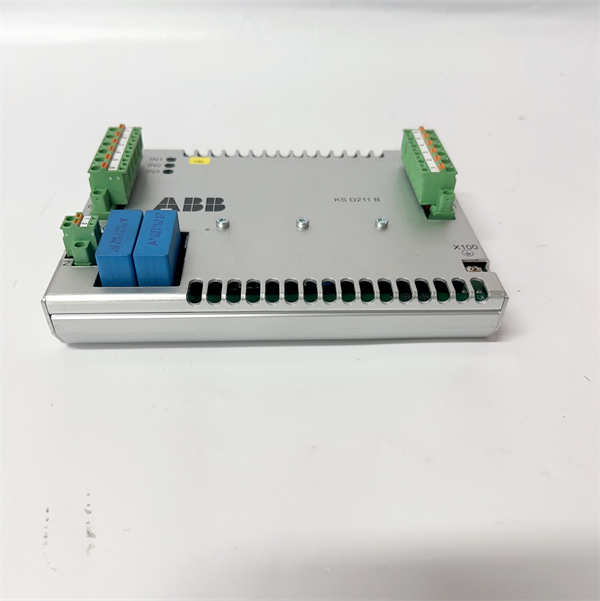

The ABB KSD211B 3BHE022455R1101 is a SIL 3-certified safety controller from ABB’s AC 800M High Integrity series, engineered for mission-critical safety instrumented systems (SIS) in extreme industrial environments. Combining dual lockstep processors with hardware-based cybersecurity, this module executes safety logic with deterministic ≤25ms scan times while meeting IEC 61508 SIL 3 and IEC 62443 SC 3 standards. The KSD211B integrates seamlessly into ABB’s 800xA DCS, enabling unified safety and process control architectures for high-risk applications like offshore ESD, nuclear shutdown systems, and chemical reactor protection. Its hardened design operates at -40°C to +70°C with 5g vibration immunity, eliminating need for environmental enclosures in arctic pipelines or mobile drilling platforms.

Featuring triple modular redundancy (TMR) support, the ABB KSD211B 3BHE022455R1101 achieves >99.9999% availability through automatic failover during faults. The controller’s embedded Trusted Platform Module (TPM 2.0) enforces secure boot and firmware validation, while application whitelisting blocks unauthorized code execution. For brownfield upgrades, it interfaces with legacy systems via PROFIBUS-PA/HART multiplexers, bridging older safety relays to modern cybersecurity protocols without rewiring.

ABB KSD211B 3BHE022455R1101

Technical Specifications

Main Features and Advantages

Ultra-Reliable Safety Architecture: Lockstep CPUs with Continuous Divergence Detection compare results every clock cycle. Mismatches trigger <50ms>

Cybersecurity by Design: Hardware-enforced Secure Boot Chain with TPM 2.0 prevents firmware tampering. Physical intrusion sensors erase cryptographic keys if enclosure is breached. Role-based access complies with NERC CIP and NIST 800-82 standards.

Predictive Diagnostics: Embedded Failure Mode Analytics monitor CPU/memory degradation trends. Early warnings for capacitor aging or solder fatigue enable planned replacements before faults occur, reducing spurious trips by 60%.

Engineering Efficiency: ABB’s Control Builder SAFE provides TÜV-certified function blocks (FBD/LD) with automatic test interval calculations. Version-controlled “Sandbox Mode” allows offline logic validation without disrupting production.

ABB KSD211B 3BHE022455R1101

Application Field

The ABB KSD211B 3BHE022455R1101 dominates ultra-demanding safety applications:

Offshore Oil & Gas: Manages subsea BOP (Blowout Preventer) control with DNV GL certification for salt-spray environments.

Nuclear Power: Executes reactor SCRAM logic with neutron radiation-hardened components.

Chemical Plants: SIL 3 protection for peroxide distillation columns with ≤30ms emergency deluge activation.

Hydrogen Production: Monitors electrolyzer shutdown systems in ATEX Zone 1 areas.

High-Speed Rail: Vital interlocking systems meeting CENELEC SIL 4 requirements.
