Description

The Bently Nevada 3500/20 125744-02 is a critical power supply module within the renowned 3500 Series machinery protection system, engineered for mission-critical asset monitoring in hazardous industrial environments. As the central power hub for Bently Nevada’s flagship monitoring platform, this module delivers regulated, redundant DC power to vibration, temperature, speed, and process monitoring modules across the rack. The Bently Nevada 3500/20 125744-02 features dual independent AC/DC inputs with automatic failover capability, ensuring zero-interruption operation during power source transitions – a non-negotiable requirement for turbine supervisory instrumentation (TSI) and safety systems in power generation and oil & gas facilities. With integrated surge suppression and electromagnetic interference (EMI) filtering, it maintains signal integrity even in electrically noisy substations or offshore platforms. The module’s hot-swappable design and front-panel diagnostics enable rapid maintenance without system shutdown. For engineers managing high-value rotating assets, the Bently Nevada 3500/20 125744-02 provides the resilient power foundation for preventing catastrophic machinery failures through continuous condition monitoring.

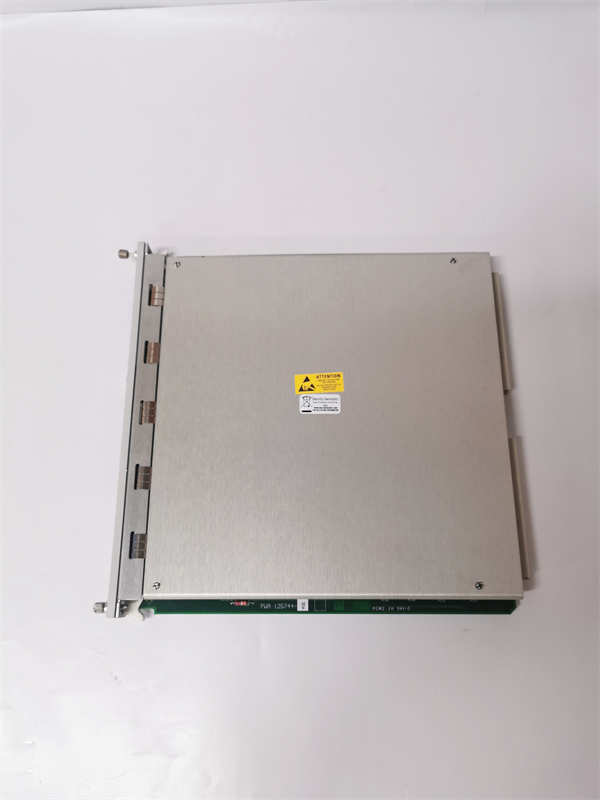

BENTLEY 3500/20 125744-02

Technical Specifications

Main Features and Advantages

Ultra-Resilient Power Delivery: The Bently Nevada 3500/20 125744-02 employs active power factor correction (PFC) and synchronous rectification technology to maintain >85% efficiency across extreme load variations (10-100%). Its dual-input architecture automatically transfers between AC mains and backup DC sources within 20ms, eliminating data gaps during grid instability.

Harsh Environment Optimized: Engineered for ISO 10816 vibration zones, the module withstands 5g RMS vibration and 50g shock loads. Conformal-coated PCBs and corrosion-resistant connectors ensure reliable operation in Class I Div 2 hazardous areas (certified by ATEX/IECEx) with humidity up to 95% non-condensing.

Intelligent Diagnostics: Front-panel LEDs provide real-time status for input source, output voltage, and fault conditions. The Bently Nevada 3500/20 125744-02 integrates with the 3500 framework to report power quality metrics – including ripple (<100mVp>

Simplified Maintenance: Hot-swappable cartridge design allows replacement in under 2 minutes without rack shutdown. Mechanical keying prevents incorrect installation, while auto-resetting fuses eliminate field recalibration after power disturbances.

Application Field

The Bently Nevada 3500/20 125744-02 is indispensable in industries where power continuity directly impacts safety and asset protection. In combined-cycle power plants, it energizes turbine monitoring systems measuring shaft vibration, eccentricity, and casing expansion on 300MW+ generators. For offshore oil platforms, the module powers compressor surge detection systems, maintaining operation during lightning-induced voltage transients and generator switchovers.

Hydroelectric facilities deploy the Bently Nevada 3500/20 125744-02 in governor control cabinets monitoring bearing temperatures and runner cavitation. Petrochemical plants leverage its hazardous area certification for ethylene cracker turbine protection, where explosive atmospheres demand ATEX-compliant components. The module also serves critical cooling pumps in nuclear facilities, providing SIL 2-compliant power for vibration monitoring channels with seismic qualification (IEC 60068-3-3). In all applications, the Bently Nevada 3500/20 125744-02 ensures continuous data flow for predictive maintenance algorithms, preventing unplanned downtime.

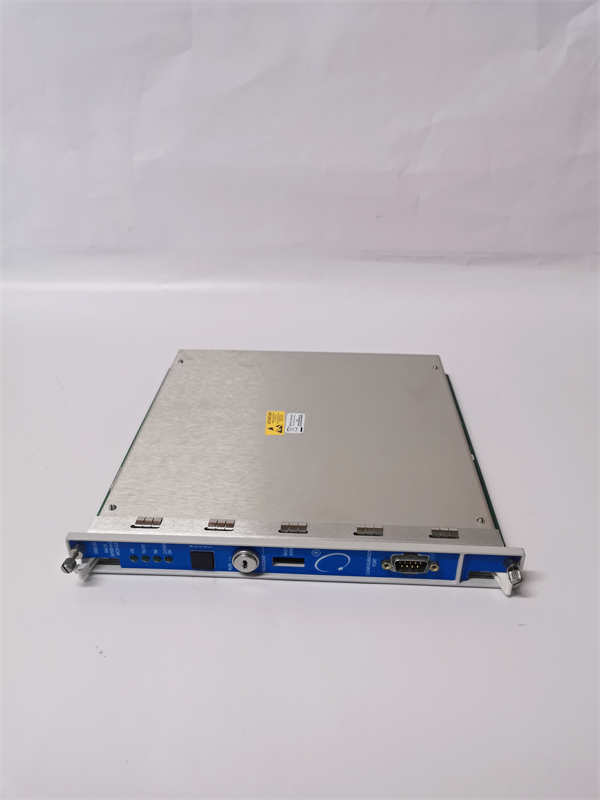

BENTLEY 3500/20 125744-02

Related Products

Bently Nevada 3500/15: Triple-redundant power supply for SIL 3 safety systems

Bently Nevada 3500/22: Communication gateway for 3500/20-powered racks

Bently Nevada 3500/32: 4-Channel vibration monitor (primary rack module)

Bently Nevada 3500/40: Proximitor® sensor power supply module

Bently Nevada 3500/92: Relay output module for shutdown commands

Bently Nevada 1900/65A: Transient voltage suppressor for input power conditioning

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (requires dedicated power slot adjacent to monitor modules). Ensure independent dual power sources (e.g., UPS + generator) with minimum 18AWG wiring. Discharge static by grounding wrist strap before handling the Bently Nevada 3500/20 125744-02.

Maintenance recommendations: Monitor output voltage monthly via front LEDs (green = nominal, amber = ±5% deviation). Perform infrared thermography annually on terminal blocks – temperatures >65°C indicate contact degradation. Replace after 10 years of continuous service or if input current exceeds 3.2A at 120VAC. Always maintain redundant Bently Nevada 3500/20 125744-02 units for critical systems. During hot-swap, insert replacement module within 30 seconds to prevent capacitor discharge.
