The Bently Nevada 3500/32 125712-01 is a quad-channel vibration monitoring module integral to the industry-leading 3500 Series machinery protection system. Designed for high-fidelity measurement of rotating equipment health, this module processes signals from proximity probes, accelerometers, and velocity sensors to detect critical faults like unbalance, misalignment, and bearing wear in real-time. As a core component of Bently Nevada’s condition-based maintenance ecosystem, the Bently Nevada 3500/32 125712-01 delivers dynamic (peak-to-peak) and static (gap voltage) measurements with patented algorithms for accurate shaft position, differential expansion, and eccentricity analysis. Its dual-microprocessor architecture executes advanced diagnostics while maintaining <2ms>Bently Nevada 3500/32 125712-01 sets the benchmark for reliability in power generation, oil and gas, and heavy industrial sectors, where preventing catastrophic machinery failure is paramount.

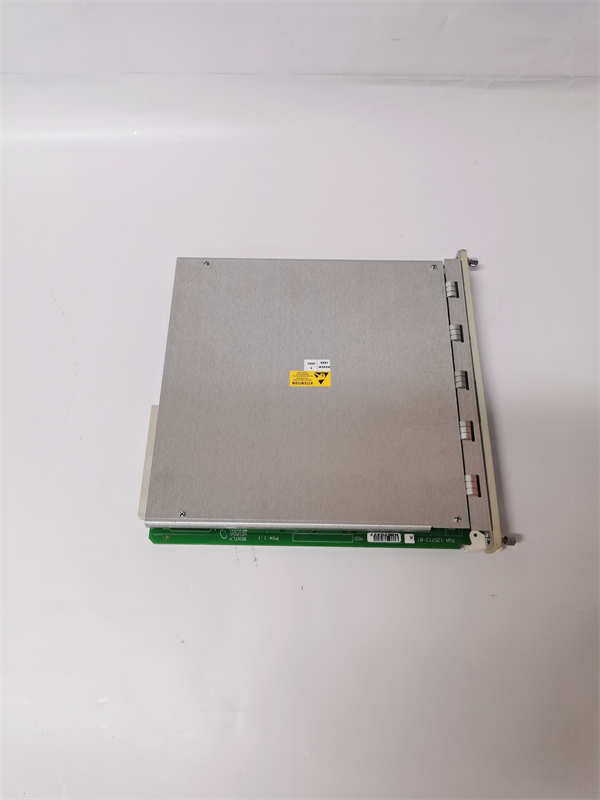

BENTLEY 3500/32 125712-01

Technical Specifications

Main Features and Advantages

Precision Diagnostics: The Bently Nevada 3500/32 125712-01 employs adaptive digital filtering to isolate fault frequencies (e.g., 1X/2X rpm) amid background noise. Its patented Notch Filter eliminates electrical interference from VFD-driven motors, enabling accurate measurements in electrically noisy environments.

Safety-Critical Performance: Dual redundant processing paths with continuous self-checks meet SIL 2 requirements. Each channel independently validates probe health through gap voltage monitoring and sensor integrity tests, triggering alarms for shorted/open probes before data corruption occurs.

Advanced Analytics: Integrated functions include:

Shaft centerline orbit plotting

Phase angle measurement

Real-time waveform capture

Bandpass alarms for subsynchronous vibrations

Operational Flexibility: Front-panel OLED displays show live vibration values and alarms without software tools. The module’s 4–20 mA outputs provide DCS integration, while Modbus TCP connectivity (via gateway) enables cloud-based analytics. Hot-swappable design minimizes downtime during replacement.

Application Field

The Bently Nevada 3500/32 125712-01 safeguards high-value rotating assets across critical industries. In gas turbine combined-cycle plants, it monitors generator bearing vibrations and detects blade-pass frequency anomalies indicative of compressor fouling. For refinery centrifugal compressors, the module identifies surge conditions through real-time phase analysis, initiating anti-surge controls before damage occurs.

Hydroelectric facilities deploy the Bently Nevada 3500/32 125712-01 to monitor runner cavitation and guide bearing wear on vertical-shaft units. Offshore drilling platforms rely on its ATEX-certified design to track mud pump vibrations in hazardous zones. The module also serves wind turbine gearboxes, where it detects planetary stage pitting through high-frequency envelope processing. In all applications, the Bently Nevada 3500/32 125712-01 enables predictive maintenance by establishing baseline vibration signatures and alerting to deviations exceeding API 670 thresholds.

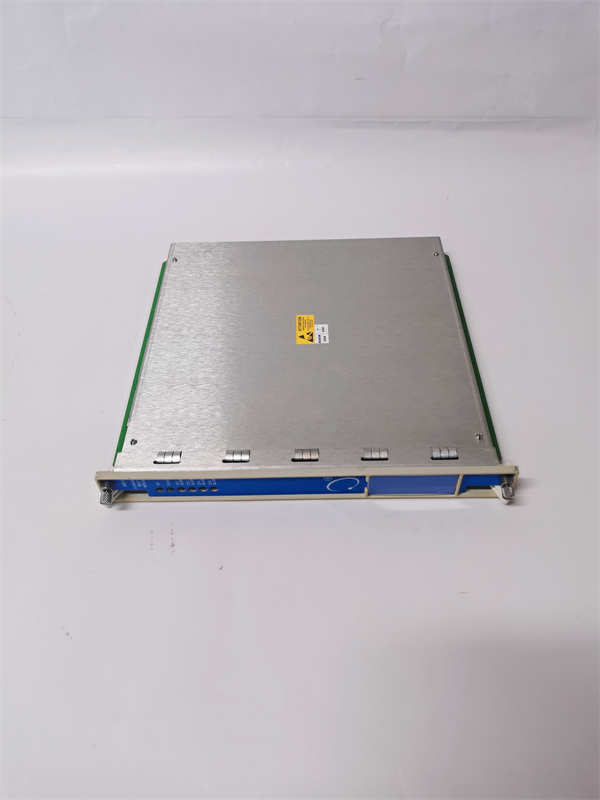

BENTLEY 3500/32 125712-01

Related Products

Bently Nevada 3500/42M: Machinery protection module with tachometer input

Bently Nevada 3500/22: Communication gateway for 3500/32 data export

Bently Nevada 3300 XL 8mm Proximity Probe: Industry-standard sensor for 3500/32

Bently Nevada 3500/92: Relay module for trip outputs from 3500/32

Bently Nevada 3701/46: Accelerometer for high-frequency bearing monitoring

Bently Nevada TK-3E: Calibration test kit for 3500/32 verification

Installation and Maintenance

Pre-installation preparation: Verify rack slot compatibility (requires adjacent 3500/15 or /20 power module). Ensure shielded, twisted-pair cabling for all sensor connections with <100>

Maintenance recommendations: Perform quarterly gap voltage calibration using a TK-3E test kit. Monitor “Not OK” LED status monthly – steady illumination indicates channel fault. Replace electrolytic capacitors after 8 years of continuous operation. Always synchronize firmware with other Bently Nevada 3500/32 modules in the rack to prevent communication conflicts. For SIL-rated systems, validate trip logic annually per ISA 84.01 procedures.
