Description

The ICS Triplex T8314 is a high-availability communication gateway module designed for mission-critical safety systems within the Trusted® TMR (Triple Modular Redundant) platform. As a pivotal interface between Rockwell Automation’s safety controllers and plant-wide networks, this module enables secure, deterministic data exchange while maintaining SIL 3 integrity per IEC 61508 standards. The ICS Triplex T8314 converts proprietary TMR bus data into industry-standard protocols (Modbus TCP, OPC UA) with dual-redundant Ethernet ports and hardware-based data validation. Its core function is bridging the gap between safety-critical controllers like the T8231 and distributed control systems (DCS), allowing real-time transmission of trip alarms, diagnostic data, and process variables without compromising safety certification. Engineered with triple-redundant processing channels and automatic failover, the ICS Triplex T8314 ensures zero single-point-of-failure in offshore platforms, refinery safety instrumented systems (SIS), and power generation facilities. The module’s patented “GuardLink” technology enforces cybersecurity per ISA/IEC 62443 standards, making it the trusted conduit for integrating safety and control networks in hazardous environments.

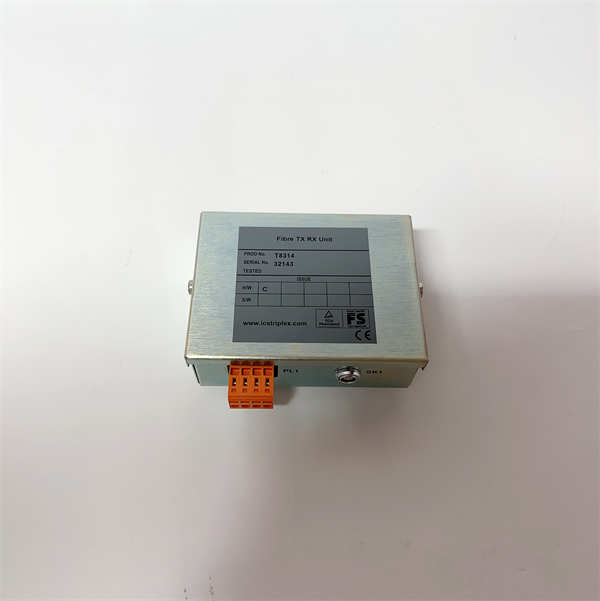

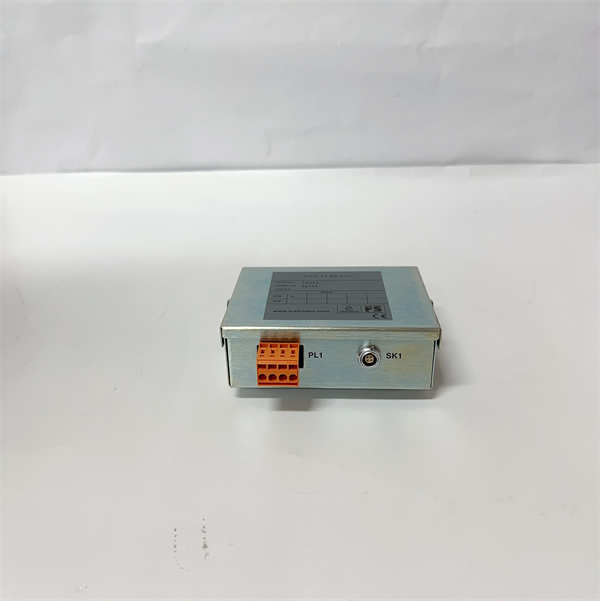

ICS TRIPLEX T8314

Technical Specifications

Main Features and Advantages

Deterministic Safety Data Exchange: The ICS Triplex T8314 employs triple-redundant protocol stacks with continuous cross-channel validation, ensuring message integrity for critical alarms. Its hardware-based CRC generators detect bit errors with Hamming Distance ≥4, meeting nuclear industry data integrity standards (IEEE 603).

Cybersecurity Enforcement:

Hardware-enforced IEC 62443 Level 3 compliance

Dynamic packet inspection with whitelisting

Unidirectional data diodes for read-only DCS interfaces

Automatic certificate rotation (X.509)

Audit trails with cryptographic hashing

Zero-Downtime Operation: Dual-active Ethernet ports support simultaneous connections to segregated networks. Automatic failover occurs within 50ms during link failure. The module’s hot-swappable design allows replacement without interrupting controller operations – critical for continuous processes.

Engineering Efficiency: Pre-certified function blocks map safety variables to OPC UA namespaces, reducing configuration time by 70%. Integrated web server provides real-time diagnostics without proprietary tools. Trusted® Workstation software enables drag-and-drop protocol binding.

Application Field

The ICS Triplex T8314 is deployed where safety-system integration is non-negotiable. In offshore drilling, it transmits ESD valve status and gas detection alarms to central control rooms via redundant fiber-optic links, maintaining SIL 3 compliance across subsea networks. Refineries use it to integrate burner management systems (BMS) with distributed control systems (DCS), enabling real-time flame scanner diagnostics on FCCU units.

Power generation facilities leverage the ICS Triplex T8314 to feed turbine trip records into plant historians for regulatory compliance (NERC CIP). Pharmaceutical batch processes utilize its OPC UA interface for paperless validation – providing audit trails for FDA 21 CFR Part 11. The module also enables predictive maintenance in LNG terminals by streaming vibration data from safety-certified monitors to analytics platforms while preserving safety network segregation.

ICS TRIPLEX T8314

Related Products

ICS Triplex T8231: SIL 3 TMR Controller (primary host for T8314)

ICS Triplex T8461: Digital input module for trip signals

ICS Triplex T8110B: Advanced communication gateway with PROFIBUS

ICS Triplex T8403: Redundant power supply for gateway racks

Rockwell 1783-ETAP: Ethernet tap for T8314 network monitoring

ICS Triplex T8830: Marshalling system for signal conditioning

ICS Triplex Trusted® Workstation V5.0: Configuration suite

Installation and Maintenance

Pre-installation preparation: Validate network segmentation requirements (safety vs. control VLANs). Use armored CAT6A or fiber-optic cables with IP67-rated connectors. Apply static-shielding bags when handling the ICS Triplex T8314 – ground the rack before insertion. Configure firewall rules prior to power-up.

Maintenance recommendations: Perform annual cybersecurity audits using Trusted® Security Assessor toolkit. Monitor port utilization monthly – sustained >60% requires network optimization. Replace cooling fans every 4 years. Validate protocol mappings after any controller logic changes. Always maintain firmware parity between ICS Triplex T8314 modules and host controllers.
