The ABB PCD530A102 3BHE041343R0102 is an advanced feeder protection relay from ABB’s Relion® 615 series, designed for secure and selective power system protection in medium-voltage networks. This IEC 61850-compliant device integrates comprehensive protection functions with arc flash detection technology, significantly reducing fault clearing times to enhance personnel safety. The ABB PCD530A102 combines overcurrent, earth fault, and thermal overload protection with advanced disturbance recording, supporting grid resilience in industrial plants and utility substations. Its modular design allows customization via plug-in communication modules (e.g., fiber optic, Ethernet) while maintaining IP52 protection for harsh switchgear environments.
As part of ABB’s digital substation ecosystem, the ABB PCD530A102 3BHE041343R0102 enables peer-to-peer communication via GOOSE messaging for fast busbar blocking schemes. The relay features a high-resolution graphical LCD for local fault analysis and supports IEC 60870-5-103/104 protocols for seamless SCADA integration. With SIL 2 certification for safety functions and embedded cybersecurity per IEC 62351, the ABB PCD530A102 ensures compliance with critical infrastructure protection standards while minimizing unplanned downtime through predictive thermal monitoring of cables/transformers.

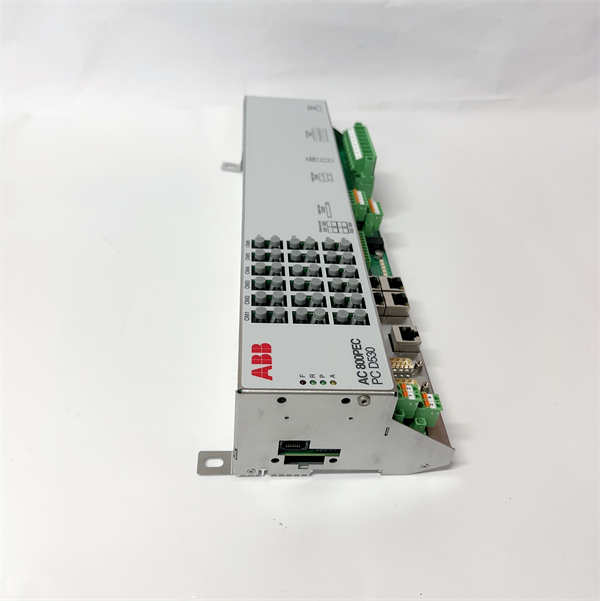

ABB PCD530A102 3BHE041343R0102
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PCD530A102 3BHE041343R0102 |
| Manufacturer | ABB Ltd. |
| Product Type | Feeder Protection Relay |
| Rated Voltage | 110–240 VAC/DC |
| Protection Functions | Overcurrent (50/51), Earth Fault (50N/51N), Arc Flash (AFD), Thermal Overload (49) |
| Standards | IEC 61850 Ed.2, IEC 60255, IEEE C37.90 |
| Communication Ports | 2× Ethernet, 1× RS485, 1× USB |
| Arc Detection | Light sensor input (fiber-optic), <2ms> |
| Operating Temperature | -25°C to +70°C |
| Fault Records | 128 events with oscillography |
| Certifications | SIL 2 (IEC 61508), UL 1053, DNV GL |
| Dimensions (H×W×D) | 177 × 143 × 163 mm |
| Weight | 1.8 kg |
Main Features and Advantages
Arc Flash Mitigation: Integrated arc detection triggers trip signals in <2ms>ABB PCD530A102 synchronizes with circuit breaker characteristics to optimize fault clearing sequences.
Cybersecurity Hardening: Hardware-enforced secure boot and role-based access control prevent unauthorized configuration changes. Automated security event logging meets NERC CIP-007 requirements. Communication integrity is ensured via IEC 62351-compliant encrypted GOOSE messaging.
Advanced Diagnostics: Real-time thermal modeling of protected assets predicts insulation degradation. The relay’s 128-event fault recorder with COMTRADE-format oscillography simplifies root-cause analysis. Dual Ethernet ports enable redundant station bus connections for the ABB PCD530A102 3BHE041343R0102.
User-Centric Design: Front-facing USB port allows settings upload without cabinet access. Intuitive PCM600 software enables drag-and-drop logic customization (CFC editor). The sunlight-readable LCD displays dynamic vector diagrams during commissioning.
Application Field
The ABB PCD530A102 3BHE041343R0102 protects critical power distribution assets across energy-intensive industries. In steel mills, it safeguards arc furnace feeders against phase imbalances and transformer hotspots. Data centers utilize its arc flash detection to prevent electrical fires in 20kV switchgear. Renewable energy farms deploy this relay for collector bus protection, using GOOSE-based inter-tripping for fault isolation.
Mining operations benefit from the relay’s vibration-resistant design (-25°C startup) in mobile substations. Water treatment plants leverage its ground fault protection for pump motors in humid environments. The ABB PCD530A102 also enables compliance in oil/gas facilities requiring SIL 2-certified shutdown logic for hazardous area switchrooms.

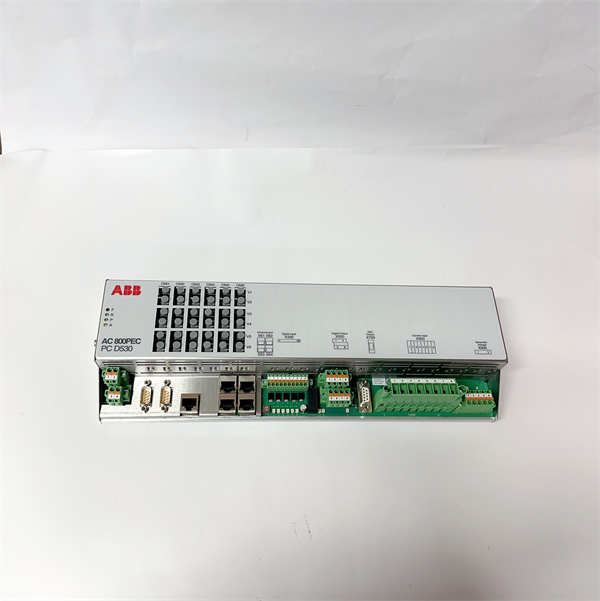

ABB PCD530A102 3BHE041343R0102
Related Products
ABB REF615: Core feeder protection relay without arc flash option
ABB SPAJ 110C: Back-up time-delayed overcurrent relay
ABB COM600: Gateway for IEC 61850 to legacy protocol conversion
ABB OTEC 100: Arc flash sensor kit for PCD530A102 integration
ABB REX610: Line differential protection for ring-main units
Installation and Maintenance
Pre-installation preparation: Verify CT/VT burden compatibility (max 0.2 VA for measurement accuracy). Mount the ABB PCD530A102 vertically on DIN rail (EN 60715) with ≥100mm clearance above for heat dissipation. Connect arc sensor fibers using ABB-approved bend-insensitive cables.
Maintenance recommendations: Test arc detection quarterly via integrated LED simulator. Calibrate thermal models annually using actual load profiles. Replace backup battery every 5 years (CR2032). Perform firmware updates with ABB’s PCM600 software during planned outages, validating settings post-upgrade.
