Description

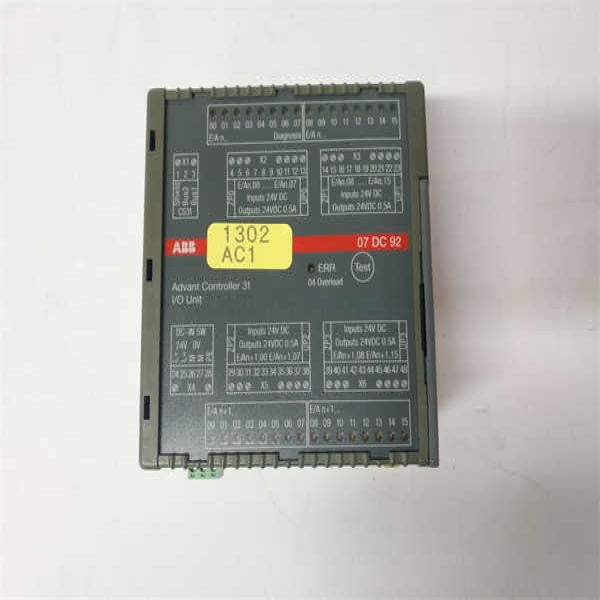

The ABB 07DC92D GJR5252200R0101 is a high-performance 16-channel 24V DC digital input module for ABB’s AC 800M series distributed control systems. Designed for mission-critical process automation, this module converts field sensor signals (e.g., switches, proximity detectors) into isolated logic-level inputs for the controller with SIL 2 capability per IEC 61508. As part of ABB’s S800 I/O family, the 07DC92D GJR5252200R0101 features galvanic isolation (500V AC) between channels and backplane, ensuring signal integrity in electrically noisy environments like power plants or refineries. Its rugged construction supports continuous operation in harsh conditions with extended temperature tolerance and vibration resistance.

The module implements advanced diagnostics including channel-level short-circuit detection, wire-break monitoring, and internal health checks – all accessible via Control Builder engineering tools. The ABB 07DC92D GJR5252200R0101 supports hot-swapping when used with redundant controllers (e.g., PM861), enabling maintenance without process interruption. With a compact form factor and configurable filtering (0.1-20ms), it balances high-density I/O requirements with precise response times for safety interlocks and sequential control. This module exemplifies ABB’s commitment to delivering robust, engineer-centric solutions for industrial automation where data accuracy and system availability are paramount.

ABB 07DC92D GJR525220R0101

Technical Specifications

Main Features and Advantages

Enhanced Signal Integrity: The ABB 07DC92D GJR5252200R0101 utilizes optical isolation and advanced filtering to reject electromagnetic interference (EMI) up to 200V/m. Each channel features independent diagnostics with LED status indicators for real-time troubleshooting. Configurable debounce filters (0.1ms to 20ms) adapt to contact bounce or noisy signals without external components.

High Availability Design: Engineered for continuous operation, the module supports online insertion/removal in redundant AC 800M configurations. Its conformal-coated PCB withstands 95% humidity and industrial contaminants. The patented terminal block design ensures vibration-proof connections while enabling front-access wiring – reducing cabinet downtime during modifications.

Seamless Integration: Pre-engineered profiles in ABB’s Control Builder automate configuration. The 07DC92D GJR5252200R0101 integrates natively with AC 800M controllers like PM865 or PM891 via high-speed S800 bus. Built-in MTA (Module Type Approval) validation prevents incorrect module installation, while electronic module identification simplifies asset management.

Application Field

The ABB 07DC92D GJR5252200R0101 is indispensable in industries requiring precise equipment monitoring. In power generation, it reads turbine vibration switch statuses, transformer tap-changer positions, and circuit breaker auxiliary contacts for grid stability. Oil & gas facilities deploy it across offshore platforms to monitor emergency shutdown (ESD) system triggers, tank level switches, and flame detection sensors in SIL 2 safety loops.

For chemical processing, the module captures valve limit switch feedback in reactor chains and conveyor run-status in packaging lines. Water treatment plants utilize the 07DC92D GJR5252200R0101 for pump discharge pressure switches, filter clogging alarms, and damper position verification. In pharmaceutical manufacturing, it ensures cleanroom pressure differential monitoring and filling machine safety door interlocks. The module’s -20°C cold-start capability makes it suitable for arctic mining operations, while its 70°C tolerance serves cement kiln controls and desert solar farms.

Related Products

07DO92H GJR5253100R1: 16-channel relay output module for actuating devices in same S800 station

07KT97 GJR5252500R1: Temperature input module for RTD/thermocouple integration

PM865: High-performance AC 800M controller managing 07DC92D modules

CI854A: S800 baseplate for mounting 07DC92D GJR5252200R0101

SD822: Power supply unit for S800 I/O stations

07AC91 GJR5251600R1: Analog input module for 4-20mA signal acquisition

TA527: Terminal unit for redundant module installation

Control Builder: Engineering software for configuring 07DC92D parameters

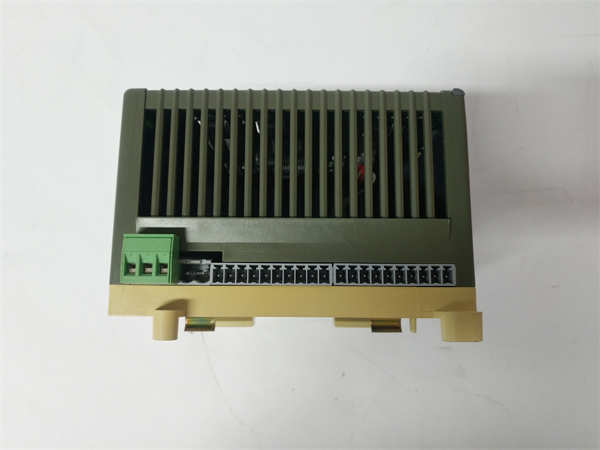

ABB 07DC92D GJR525220R0101

Installation and Maintenance

Pre-installation preparation: Verify compatibility with AC 800M controller firmware version. Mount the 07DC92D GJR5252200R0101 on a grounded CI854A baseplate using the locking lever. Ensure 24V DC field power is fused (max 10A). Use shielded 18-12 AWG cables with Class 1 wiring separation. Configure channel filters in Control Builder before energizing.

Maintenance recommendations: Monitor module health via Control Builder’s diagnostic viewer. Check LED indicators quarterly (green = healthy, red = fault). Clean air vents annually with low-pressure nitrogen. For hot-swapping, follow ABB’s 3-step procedure: 1) Unlock lever 2) Wait for “REMOVE” LED 3) Extract module. Always maintain ESD precautions and store spares in climate-controlled environments. Update firmware during planned shutdowns.
