Description

The GE DS200DCFBG1BLC is a high-reliability Drive Control Feedback Board designed exclusively for GE’s Mark V and Mark VI series gas/steam turbine control systems. As a critical interface module within GE Speedtronic™ platforms, this board processes encoder and resolver feedback signals to ensure precise turbine speed regulation and synchronization with power grids. The DS200DCFBG1BLC converts analog position data into digital signals for the turbine control CPU, enabling real-time monitoring of rotor dynamics during startup, load changes, and emergency shutdowns. Its ruggedized design withstands extreme vibration (up to 5g) and temperature fluctuations in turbine halls, while integrated noise filtering eliminates signal distortion from electromagnetic interference. Engineered for dual-redundant configurations, this board maintains <2ms>DS200DCFBG1BLC is indispensable for preventing catastrophic mechanical failure and ensuring grid code compliance.

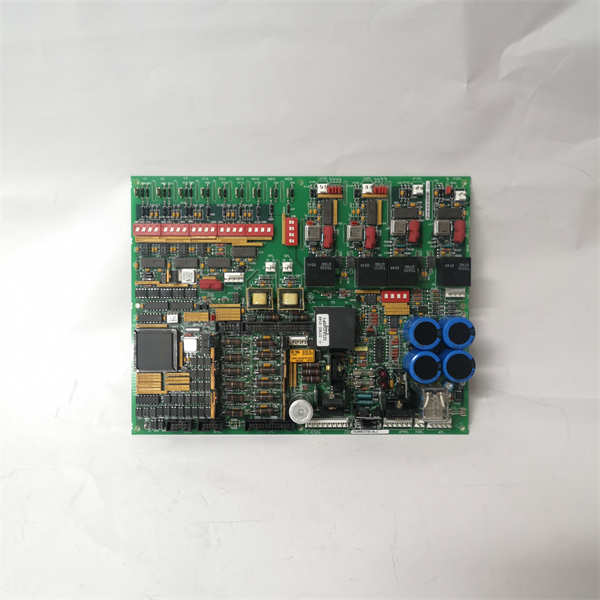

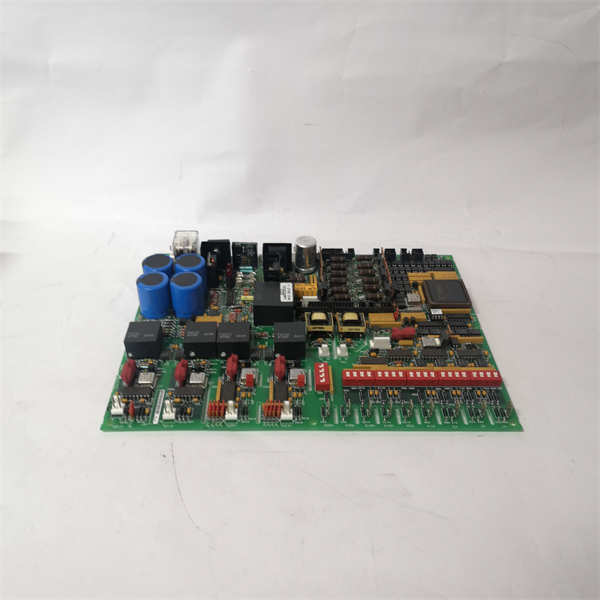

GE DS200DCFBG1BLC

Technical Specifications

Main Features and Advantages

Fault-tolerant signal processing: Triple-redundant input channels with voting logic in the DS200DCFBG1BLC eliminate single-point failures, automatically discarding discrepant signals during transient conditions. Its adaptive noise cancellation uses DSP-based filtering to maintain signal integrity in electrically noisy turbine environments.
Diagnostic depth: Onboard LED indicators provide immediate fault localization (encoder power loss, cable breaks), while built-in self-test routines generate automatic health reports to the Mark V/VI HMI. The board’s conformal coating (UL94 V-0 rated) protects against humidity and conductive dust in coastal plants.
Lifecycle efficiency: Hot-swappable design allows replacement without turbine shutdown. The DS200DCFBG1BLC supports legacy resolvers and modern SSI encoders simultaneously, enabling phased upgrades. GE’s Speedtronic Toolbox software auto-configures signal scaling, reducing commissioning time by 75% compared to manual calibration.

Application Field

The GE DS200DCFBG1BLC is deployed in turbine control systems across combined-cycle power plants, compressor stations, and marine propulsion. In 50-500MW gas turbines, it monitors critical shaft speed during black start synchronization, preventing grid instability. Offshore platforms use it for compressor turbine anti-surge control, where its API 670 compliance ensures vibration resilience on floating LNG facilities.
Hydroelectric plants integrate the board for wicket gate position feedback during load rejection events. For industrial cogeneration, the DS200DCFBG1BLC provides steam turbine overspeed protection in paper mills and refineries, with ISO 10816 vibration tolerance for gear-coupled systems. Aerospace test stands leverage its resolver interfaces for jet engine spool speed validation at >10,000 RPM.

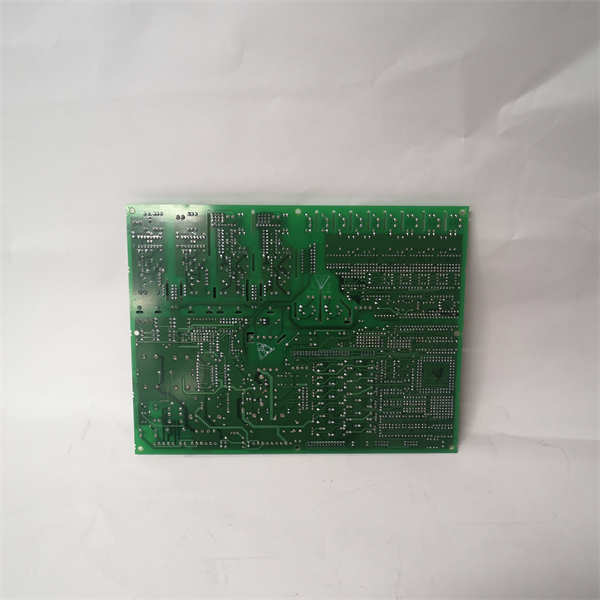

GE DS200DCFBG1BLC

Related Products

DS200DCFBG1A: Previous revision without liquid-cooled turbine support

IS200DCFBG1B: Enhanced version for Mark VIe systems with EtherNet/IP

DS200TCEAG1A: Terminal board for encoder/resolver wiring

IS215VCMVH2B: Mark VIe controller pairing with DS200DCFBG1BLC

DS200DMPAG1A: Multiplexer for redundant signal routing

EX2100e: Excitation control interface module

DS200LDCCH1A: Load sharing module for generator synchronization

Installation and Maintenance

Pre-installation preparation: Verify backplane voltage stability (±0.1V tolerance) and discharge static via wrist strap. Align board guides with carrier slots before insertion; improper seating may cause bus communication faults. Apply GE-approved thermal paste (GTA-7) if operating above 50°C ambient.
Maintenance recommendations: Quarterly inspection of terminal block torque (0.6 N·m). Monitor LED status codes weekly; solid red requires immediate replacement. Clean cooling fins annually with non-conductive vacuum. After 10 years of service, perform full dynamic calibration using Speedtronic Test Unit (STU). Redundant pairs should swap positions biannually to equalize wear.
