Description

The TRICONEX 9566-8XX is a high-integrity 8-channel analog input module designed for Schneider Electric’s Triconex® Trident™ safety platform, delivering SIL 3 (IEC 61508) certified performance for critical safety instrumented systems (SIS). As part of the renowned Triconex 3008 series, this module converts 4–20mA/HART signals from field sensors (e.g., pressure transmitters, temperature sensors) into digital data for voting logic within triple-redundant safety controllers like the Tricon TRICON CX 11XXX. The 9566-8XX provides galvanic isolation between channels and features hardware-based diagnostics for open-wire detection, over-range alerts, and signal drift monitoring. Its core function is enabling reliable process variable monitoring in hazardous environments—triggering safety actions (e.g., emergency shutdowns) when predefined trip limits are breached.

Engineered for extreme reliability, the TRICONEX 9566-8XX employs triple-redundant signal conditioning paths per channel, with continuous cross-comparison to detect faults within milliseconds. The “8XX” suffix denotes configurable input ranges (e.g., 9566-810 for 4–20mA non-HART, 9566-820 for HART-enabled). This module integrates seamlessly into Triconex’s fault-tolerant architecture, reducing spurious trips through patented TMR technology. Its value lies in minimizing downtime in refineries, chemical plants, and power generation facilities by preventing false shutdowns while ensuring fail-safe response to genuine hazards. The TRICONEX 9566-8XX is hot-swappable, supporting online maintenance without process interruption.

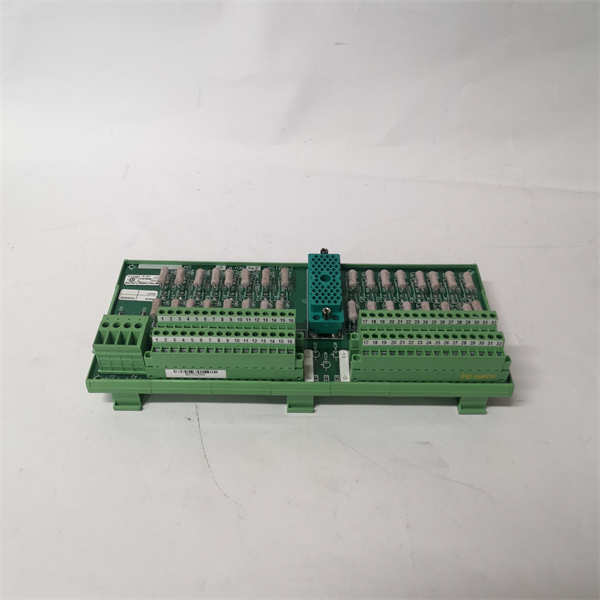

TRICONEX 9566-8XX

Technical Specifications

Main Features and Advantages

Fault-Tolerant Signal Integrity: Each channel in the TRICONEX 9566-8XX processes signals through three independent circuits. A hardware voter compares results at the module level, discarding outliers and reporting consensus values to the safety controller. This eliminates single-point failures and ensures continued operation even with one faulty path. Continuous diagnostics monitor signal validity, triggering alarms for discrepancies >0.5% between paths. The galvanic isolation prevents ground loops from compromising measurements in electrically noisy environments.

Advanced Diagnostics & HART Integration: The module autonomously detects field wiring faults (e.g., open circuits, short circuits) and sensor malfunctions, reducing manual calibration checks. HART-enabled variants (9566-82X) allow bidirectional digital communication with smart transmitters, enabling remote device configuration, calibration verification, and diagnostic data retrieval (e.g., sensor health, plugged impulse lines) without disrupting the 4–20mA signal. This streamlines predictive maintenance and reduces technician exposure to hazardous areas.

Seamless Safety System Integration: Designed for the Triconex Trident platform, the 9566-8XX hot-swaps into any I/O slot of a 3008 series chassis. Configuration via TriStation™ 1131 software is template-driven, with pre-validated function blocks for scaling, alarming, and voting. The module’s low-power design (<2W>

Application Field

The TRICONEX 9566-8XX is deployed in safety-critical processes where analog signal reliability is non-negotiable. In oil & gas, it monitors wellhead pressures, pipeline flow rates, and compressor discharge temperatures—triggering ESD (Emergency Shutdown) systems if values exceed safe thresholds. For chemical plants, it safeguards reactors by tracking exothermic temperature rises and pressure surges, initiating quench sequences via the Tricon CX controller.

In power generation, the module validates boiler drum levels and turbine lube oil pressures, preventing catastrophic equipment damage during anomalies. Pharmaceutical facilities use it for bioreactor sterility monitoring (temperature/pH), ensuring compliance with FDA 21 CFR Part 11. The 9566-8XX also integrates into fire & gas systems, processing signals from toxic gas detectors and flame scanners to activate suppression systems. Its HART capability enables predictive maintenance in remote LNG terminals, reducing unplanned shutdowns by identifying degrading sensors before failure.

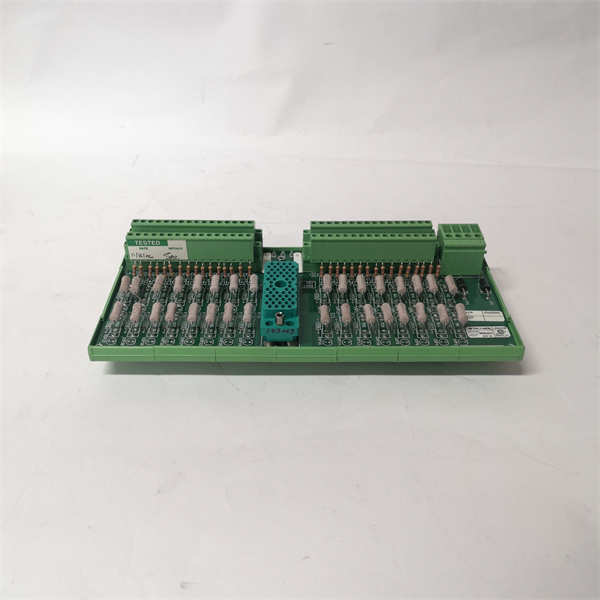

TRICONEX 9566-8XX

Related Products

TRICONEX 9762-810: 16-channel digital input module for safety interlocks.

TRICONEX 4351B: Main processor for Trident safety systems.

TRICONEX 9563-8XX: Analog output module for control valve positioning.

TRICONEX 8312: Power supply module for TMR chassis.

TRICONEX 3704E: Communication module for Modbus/OPC integration.

TRICONEX 3503E: TMR chassis for module housing.

TriStation 1131: Configuration software for 9566-8XX logic programming.

TRICONEX 9662-810: Relay output module for shutdown actuation.

Installation and Maintenance

Pre-installation preparation: Verify compatibility with the TRICONEX 3503E chassis slot type (I/O only). Ensure field wiring uses shielded, twisted-pair cables grounded at a single point. Calibrate all connected transmitters to match the 9566-8XX’s input range. Configure HART variables in TriStation for -82X variants. Power down the chassis before initial installation; subsequent replacements support hot-swap.

Maintenance recommendations: Perform quarterly diagnostic reviews via TriStation’s Event Chronicle to identify early signal drift. Annually validate channel accuracy with a precision current source (0.05% tolerance). Replace modules showing persistent “Fault” LED indications. For HART-enabled systems, schedule biennial HART device health audits using TriStation’s asset management tools. Maintain environmental cleanliness to prevent connector corrosion.
