The PROSOFT PTQ-PDPMV1 is a high-performance PROFINET Device to Modbus Master protocol gateway developed by ProSoft Technology, designed to seamlessly integrate Siemens PLCs (e.g., S7-1500, ET 200SP) with Modbus RTU/TCP devices in industrial automation systems. This versatile module acts as a bidirectional translator, enabling PROFINET controllers to natively read/write data from Modbus slaves—such as drives, meters, sensors, and legacy PLCs—without custom coding. The PTQ-PDPMV1 features dual PROFINET ports supporting Media Redundancy Protocol (MRP) for ring topology resilience and delivers deterministic data exchange with configurable update rates down to 1 ms. Its rugged DIN-rail design and -40°C to +75°C operating range ensure reliability in harsh environments like steel mills or offshore platforms. By eliminating integration bottlenecks, the PROSOFT PTQ-PDPMV1 accelerates IIoT deployments while preserving investments in existing Modbus assets.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | PTQ-PDPMV1 |
| Manufacturer | ProSoft Technology |
| Product Type | Protocol Gateway (PROFINET Device ↔ Modbus Master) |
| PROFINET Ports | 2x RJ45 (10/100 Mbps), MRP support |
| Modbus Interfaces | 1x RS-232/422/485 (Modbus RTU), 1x Ethernet (Modbus TCP) |
| Protocol Support | PROFINET Class B, Modbus RTU, Modbus TCP |
| Update Rate | Configurable 1–1000 ms |
| Isolation Voltage | 1500 VAC (field-to-bus) |
| PROFINET I/O Data | Up to 1440 bytes input/output |
| Concurrent Connections | 32 Modbus TCP sessions or 1 Modbus RTU chain |
| Power Supply | 24 VDC ±10% (100 mA typical) |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Certifications | UL/cUL Class I Div 2, CE, RoHS |
| Dimensions | 25 mm × 110 mm × 115 mm (W×H×D) |
Main Features and Advantages
Plug-and-Play Integration: The PROSOFT PTQ-PDPMV1 auto-discovers PROFINET controllers via GSDML files and requires no PLC programming. Configuration is simplified through ProSoft’s web-based Configuration Builder software, where drag-and-drop mapping links PROFINET I/O tags to Modbus registers. Dual flash memory stores redundant configurations for quick recovery.
Deterministic Performance: With sub-millisecond jitter, the gateway ensures time-critical data synchronization for motion control and safety systems. The RS-485 port supports Modbus RTU baud rates up to 115.2 kbps with automatic slave polling prioritization. For Ethernet, integrated switch architecture allows daisy-chaining without additional hardware.
Robust Connectivity: Built-in galvanic isolation protects controllers from ground loops and surges in Modbus networks. The -40°C cold-start capability and 30g shock resistance make it ideal for mobile equipment or unheated substations. Diagnostic LEDs and SNMP traps provide real-time health monitoring for predictive maintenance.

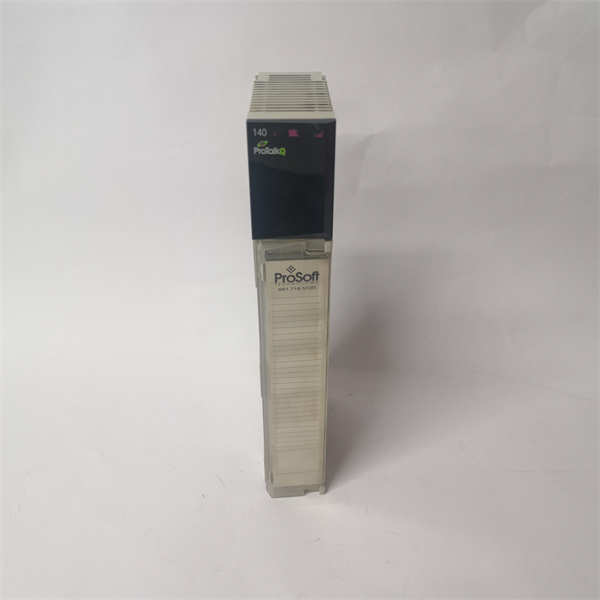

PROSOFT PTQ-PDPMV1
Application Field
The PROSOFT PTQ-PDPMV1 bridges automation islands across industries:
Energy: Connects Siemens S7-1200 controllers with Modbus RTU-based protective relays in substation SCADA systems.
Water/Wastewater: Integrates flow meters (e.g., Endress+Hauser Promag) with SIMATIC PCS 7 via Modbus TCP for real-time pump control.
Manufacturing: Synchronizes legacy Modicon M221 PLCs controlling conveyor lines with Siemens TIA Portal HMI dashboards.
Mining: Links explosion-proof weigh scales (Modbus RTU) to ET 200SP distributed I/O in hazardous zones.
Renewables: Interfaces wind turbine pitch controllers with PROFINET networks for predictive maintenance data aggregation.
Related Products
PROSOFT PLX31-EIP-MBTCP: EtherNet/IP to Modbus TCP gateway for Rockwell systems.
PROSOFT MVI56E-MNETC: ControlLogix PROFINET scanner module.
PROSOFT ILX56-PROFINET: Redundant gateway chassis for high-availability PTQ-PDPMV1 deployment.
PROSOFT AN-AB-MBTCP: Allen-Bradley Kinetix drive integration kit.
Configuration Builder Software: ProSoft’s unified configuration suite.

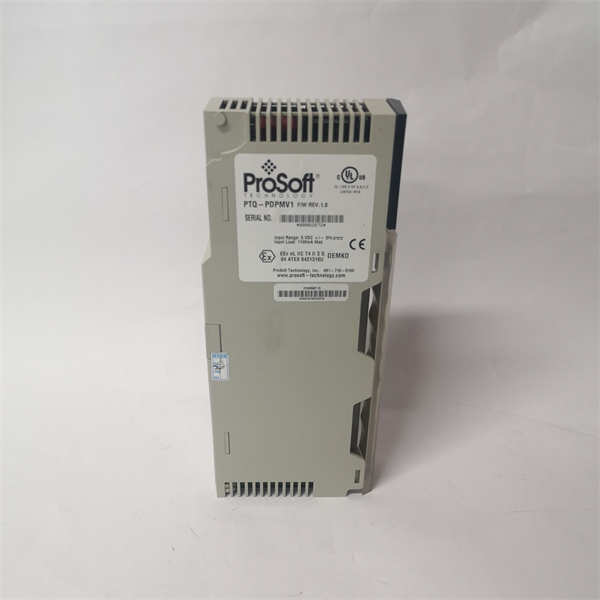

PROSOFT PTQ-PDPMV1
Installation and Maintenance
Pre-installation preparation: Verify 24VDC power stability (±10%) and ground continuity. Install GSDML file in Siemens TIA Portal. Pre-map Modbus register tables using Configuration Builder. For Modbus RTU, terminate RS-485 lines with 120Ω resistors.
Maintenance recommendations: Monitor PROFINET diagnostics through TIA Portal’s topology view. Update firmware annually via Ethernet port. Clean ventilation slots quarterly in dusty environments. Replace units showing persistent “COMM FAULT” LEDs.
