Description

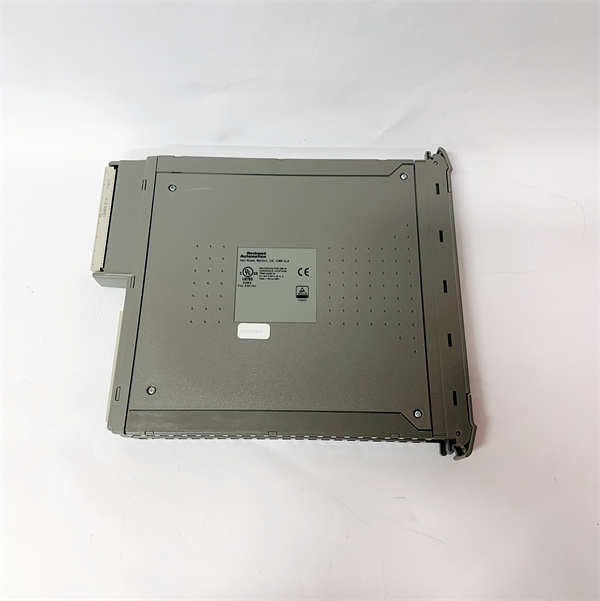

The ICS Triplex T8403 is a triple modular redundant (TMR) analog input module from Rockwell Automation’s Trusted® platform, engineered for ultra-reliable signal acquisition in safety instrumented systems (SIS). Designed to interface with critical sensors in hazardous environments, this module ensures continuous operation by processing signals through three independent channels and performing 2-out-of-3 voting to eliminate single points of failure. The ICS Triplex T8403 supports 16 analog input channels per module, accepting voltage (±10V) or current (4–20mA) signals with galvanic isolation between channels. Its ruggedized design withstands extreme temperatures, vibration, and EMI, making it ideal for oil and gas, power generation, and chemical processing applications. By integrating seamlessly with Trusted® TMR controllers like the T8110B, the ICS Triplex T8403 delivers SIL 3-certified (IEC 61508) performance for functions such as emergency shutdown and fire-and-gas monitoring.

ICS TRIPLEX T8403

Technical Specifications

Main Features and Advantages

Fault-tolerant architecture: Three parallel input circuits per channel continuously cross-validate data. If one channel deviates, the ICS Triplex T8403 masks the fault and maintains accuracy via majority voting—critical for gas concentration monitoring or pressure safety valves.

High-fidelity signal processing: 16-bit resolution and ±0.1% accuracy detect minute process deviations (e.g., 0.01% pressure drop in pipelines). Automatic drift compensation ensures long-term calibration stability without manual intervention.

Environmental resilience: Operates in -40°C Arctic sites or +70°C compressor stations. Conformal coating protects PCBs against corrosive atmospheres (H₂S, salt spray). Integrated surge suppression (IEC 61000-4-5) shields against lightning strikes.

Maintenance optimization: Hot-swappable design allows module replacement without system shutdown. Front-facing LEDs provide instant health status per channel. Built-in diagnostics report open wires, short circuits, or out-of-range signals to the controller.

Application Field

The ICS Triplex T8403 is deployed in SIL 3 scenarios where sensor reliability dictates operational safety. In offshore platforms, it acquires signals from pressure/temperature transmitters in wellhead ESD systems. Power plants use it for boiler drum level monitoring and turbine vibration sensing, leveraging its EMI immunity near high-voltage switchgear.

Chemical facilities rely on the ICS Triplex T8403 for reactor temperature chains and toxic gas detectors (H₂S, Cl₂). For LNG terminals, it interfaces with cryogenic temperature sensors (-200°C). Water treatment plants utilize its 4–20mA inputs for pH/chlorine analyzers in safety-critical dosing systems. In mining, it monitors conveyor belt torque sensors for emergency stop triggers.

ICS TRIPLEX T8403

Related Products

T8402: 8-channel predecessor module for space-constrained cabinets.

T8431C: Modern 16-channel analog input with HART protocol support.

T8110B: TMR controller for processing T8403 signals.

T8461: Digital output module for safety actuator control.

TMR Analog Output Module T8411: Complementary output module for valve control.

Trusted TMR Baseplate TMR-BP-01: Carrier for mounting T8403 modules.

Trusted Power Supply T8310: Redundant 24VDC source.

Installation and Maintenance

Pre-installation preparation: Verify backplane compatibility (Trusted TMR Series A/B). Discharge static electricity before handling the ICS Triplex T8403. Label all field wiring per channel assignments in engineering documents. Ensure signal cables are shielded and grounded at one end only.

Maintenance recommendations: Calibrate connected sensors annually; the module self-validates internal circuitry. Monitor LED statuses monthly: green = healthy, red = fault. Clean terminal blocks during shutdowns using non-abrasive contact cleaner. Replace modules showing persistent channel errors—retain as spares for hot-swap rotations.
